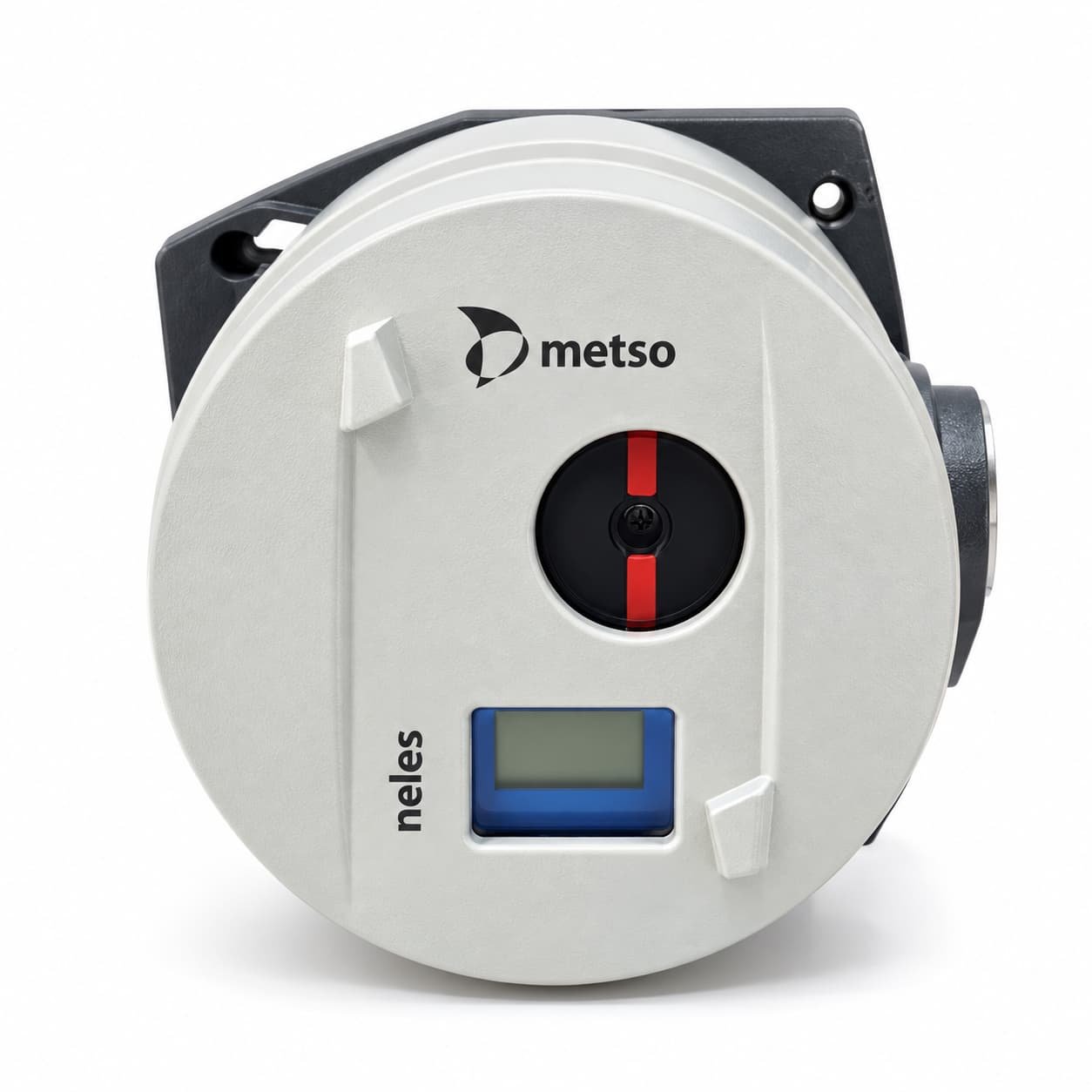

VALMET ND9402 Stainless Steel Intelligent Valve Controller
The VALMET ND9402 is a low-capacity intelligent valve controller from the Neles ND9000 series. Designed for accurate valve positioning and reliable industrial process automation, the ND9402 combines intelligent control technology, advanced diagnostics and robust stainless steel housing construction with a polymer composite cover.
The ND9402 series is available with three communication technologies: HART, FOUNDATION Fieldbus and PROFIBUS PA. As a result, customers can select the appropriate controller version according to the communication requirements of their distributed control system and field instrumentation network.
The ND9402 incorporates a low-capacity pneumatic spool valve intended for compatible actuators with stroke volumes below 1 dm³. Therefore, it is particularly relevant for smaller pneumatic valve actuator applications where accurate positioning and appropriate pneumatic capacity are required.
Furthermore, the ND9402 enclosure provides IP66 / NEMA 4X environmental protection. Combined with intelligent diagnostic capabilities, this design supports reliable valve automation in a wide range of industrial environments.
Available configurations include ND9402H HART models, ND9402F FOUNDATION Fieldbus models and ND9402P PROFIBUS PA models. Customers should confirm the complete model code, approval requirements and actuator compatibility before ordering.
Key Features of VALMET ND9402
- Three Communication Options: HART, FOUNDATION Fieldbus and PROFIBUS PA versions.
- Low Pneumatic Capacity: Suitable for compatible actuators with stroke volumes below 1 dm³.
- Stainless Steel Housing: Durable construction with a polymer composite cover.
- IP66 / NEMA 4X Protection: Designed for demanding industrial environmental conditions.
- Intelligent Valve Positioning: Accurate control of compatible rotary and linear valve assemblies.
- Advanced Valve Diagnostics: Supports monitoring and maintenance evaluation.
- Digital Communication: Integration with compatible control systems and engineering tools.
- Flexible Configuration: Multiple approval and option codes to meet different project requirements.
- Industrial Mounting Compatibility: ND9000 platform designed around VDI/VDE 3845 mounting arrangements.
- Maintenance Support: Device information can assist troubleshooting and maintenance planning.
In addition, the ND9000 intelligent valve controller platform supports configuration and diagnostic functions through compatible software tools. Available features depend on communication protocol, device revision and host-system integration.
VALMET ND9402 Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | VALMET / Neles |
| Product Family | ND9000 Intelligent Valve Controller |
| Series | ND9402 |
| Enclosure | Stainless steel housing with polymer composite cover |
| Environmental Protection | IP66 / NEMA 4X |
| Pneumatic Capacity | Low capacity (02 spool valve) |
| Actuator Stroke Volume | Less than 1 dm³ |
| Pneumatic Connections | 1/4 NPT |
| HART Models | ND9402H series; 4–20 mA and HART |
| FOUNDATION Fieldbus Models | ND9402F series; IEC 61158-2 physical layer |
| PROFIBUS PA Models | ND9402P series; IEC 61158-2 physical layer |
| Valve Applications | Compatible rotary and linear valve assemblies |
| Mounting Standard | VDI/VDE 3845 platform |
| Diagnostics | Intelligent valve and device diagnostics |
| Approval Options | N, X, X8, U and Z; verify by complete ordering code |
| Additional Options | T suffix; confirm exact option and compatibility |
| Total Variations | 20 |
Technical Note: Exact operating pressure, electrical ratings, temperature limits, hazardous-area approvals, additional options and compatibility must be verified against the selected model and current Valmet technical documentation.
ND9402H vs ND9402F vs ND9402P
VALMET ND9402H – HART Intelligent Valve Controller
The VALMET ND9402H supports a 4–20 mA control signal with HART digital communication. It is intended for compatible process automation systems using HART instrumentation. In addition, available device diagnostics can assist maintenance teams with valve performance evaluation.
VALMET ND9402F – FOUNDATION Fieldbus Intelligent Valve Controller
The VALMET ND9402F supports FOUNDATION Fieldbus communication, allowing digital integration with compatible fieldbus host systems. It is suitable for industrial installations requiring fieldbus-based valve control, configuration and diagnostic access.
VALMET ND9402P – PROFIBUS PA Intelligent Valve Controller
The VALMET ND9402P supports PROFIBUS PA communication for compatible process control networks. This configuration enables integration with suitable PROFIBUS PA host systems and engineering software.
Communication Selection: HART, FOUNDATION Fieldbus and PROFIBUS PA are different communication technologies. Therefore, the ND9402H, ND9402F and ND9402P versions should not be treated as interchangeable without confirming host-system compatibility.
Available VALMET ND9402 Models
VALMET ND9402H – HART Models
The following HART models belong to the ND9402 low-capacity intelligent valve controller family. Select the complete ordering code according to the required communication protocol, approval and configuration options.
| Model | Communication | Product Family |
|---|---|---|
| ND9402HN | HART | ND9402 stainless steel low-capacity controller |
| ND9402HNT | HART | ND9402 stainless steel low-capacity controller |
| ND9402HX | HART | ND9402 stainless steel low-capacity controller |
| ND9402HXT | HART | ND9402 stainless steel low-capacity controller |
| ND9402HX8 | HART | ND9402 stainless steel low-capacity controller |
| ND9402HX8T | HART | ND9402 stainless steel low-capacity controller |
| ND9402HU | HART | ND9402 stainless steel low-capacity controller |
| ND9402HUT | HART | ND9402 stainless steel low-capacity controller |
| ND9402HZ | HART | ND9402 stainless steel low-capacity controller |
| ND9402HZT | HART | ND9402 stainless steel low-capacity controller |
VALMET ND9402F – FOUNDATION Fieldbus Models
The following FOUNDATION Fieldbus models belong to the ND9402 low-capacity intelligent valve controller family. Select the complete ordering code according to the required communication protocol, approval and configuration options.
| Model | Communication | Product Family |
|---|---|---|
| ND9402FN | FOUNDATION Fieldbus | ND9402 stainless steel low-capacity controller |
| ND9402FX | FOUNDATION Fieldbus | ND9402 stainless steel low-capacity controller |
| ND9402FX8 | FOUNDATION Fieldbus | ND9402 stainless steel low-capacity controller |
| ND9402FU | FOUNDATION Fieldbus | ND9402 stainless steel low-capacity controller |
| ND9402FZ | FOUNDATION Fieldbus | ND9402 stainless steel low-capacity controller |
VALMET ND9402P – PROFIBUS PA Models
The following PROFIBUS PA models belong to the ND9402 low-capacity intelligent valve controller family. Select the complete ordering code according to the required communication protocol, approval and configuration options.
| Model | Communication | Product Family |
|---|---|---|
| ND9402PN | PROFIBUS PA | ND9402 stainless steel low-capacity controller |
| ND9402PX | PROFIBUS PA | ND9402 stainless steel low-capacity controller |
| ND9402PX8 | PROFIBUS PA | ND9402 stainless steel low-capacity controller |
| ND9402PU | PROFIBUS PA | ND9402 stainless steel low-capacity controller |
| ND9402PZ | PROFIBUS PA | ND9402 stainless steel low-capacity controller |
Important Ordering Note: The N, X, X8, U, Z and T suffixes indicate different manufacturer ordering configurations. Their certification and feature differences must be checked against the current Valmet ordering guide before substitution or installation.
Industrial Applications of VALMET ND9402
Oil and Gas Processing
Oil and gas processing facilities use intelligent valve controllers to support accurate process regulation. The ND9402 series can be considered for compatible smaller pneumatic actuators where reliable positioning and digital communication are required.
Chemical and Petrochemical Processing
Chemical and petrochemical facilities often require durable automation equipment. The ND9402 stainless steel housing design and intelligent diagnostics support appropriately selected process control valve applications.
Power Generation
Power generation facilities rely on automated valves to regulate process conditions. The ND9402 offers HART, FOUNDATION Fieldbus and PROFIBUS PA communication options for compatible instrumentation systems.
Pulp and Paper Manufacturing
Pulp and paper production depends on consistent valve operation. The ND9000 intelligent platform provides positioning control and diagnostic information that can support maintenance planning.
Water and Industrial Process Control
Water treatment and general industrial facilities use control valves across numerous processes. The ND9402 low-capacity platform can be considered for suitable compact pneumatic actuator installations.
Small Pneumatic Actuator Automation
With its low-capacity spool valve, the ND9402 is particularly relevant for actuator stroke volumes below 1 dm³. Nevertheless, final selection should consider the actuator size, required operating speed, air supply and manufacturer sizing recommendations.
Benefits of Intelligent Valve Diagnostics
The VALMET ND9402 series is part of the ND9000 intelligent valve controller family, which provides diagnostic capabilities for compatible valve assemblies. These functions can help maintenance teams evaluate valve behavior and identify changes in operating performance.
Furthermore, digital communication enables access to device information through suitable configuration and maintenance systems. As a result, operators can make more informed maintenance decisions and improve visibility into valve operation.
In addition, selecting the correct communication version helps maintain compatibility with the installed control system. The appropriate ND9402 configuration should therefore be selected based on the required protocol and manufacturer ordering code.
Why Choose Wuhan Yuli Automation?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation products and replacement components to international customers. Our product range includes VALMET / Neles intelligent valve controllers, valve positioners and related industrial process control equipment.
- New and original industrial automation products.
- Minimum 12-month warranty.
- Assistance with complete model identification.
- Competitive quotations subject to availability.
- International shipping support.
- Support for industrial maintenance and replacement projects.
Whether you need ND9402HN, ND9402HXT, ND9402FX8, ND9402PU or ND9402PZ, our sales team can assist with model verification and quotation requests.
Frequently Asked Questions About VALMET ND9402
What is the VALMET ND9402?
The VALMET ND9402 is a low-capacity intelligent valve controller from the Neles ND9000 series, featuring stainless steel housing construction with a polymer composite cover.
What communication protocols are available?
The ND9402H uses HART, ND9402F uses FOUNDATION Fieldbus and ND9402P uses PROFIBUS PA.
What is the difference between ND9402 and ND9302?
ND9402 uses a stainless steel housing with polymer composite cover, while ND9302 uses a stainless steel flameproof Ex d enclosure. Both belong to the low-capacity 02 spool-valve family.
Is ND9402 suitable for small pneumatic actuators?
The ND9402 low-capacity spool valve is intended for compatible actuator stroke volumes below 1 dm³. Final sizing must be verified.
What is the difference between ND9402HN and ND9402HNT?
Both are HART configurations. The additional T suffix indicates an ordering option that should be confirmed using the manufacturer documentation.
Can ND9402F replace ND9402P?
Not as a direct communication replacement. ND9402F uses FOUNDATION Fieldbus while ND9402P uses PROFIBUS PA.
Does ND9402 support valve diagnostics?
Yes. The ND9000 intelligent valve controller family provides diagnostic capabilities. Available functions depend on protocol, revision and host-system integration.
Can ND9402 be used in hazardous areas?
Only when the selected ordering configuration has the appropriate certification for the specific hazardous-area installation. Verify the complete model and certificate.
Where can I buy VALMET ND9402?
Contact Wuhan Yuli Automation with the complete model number, required quantity and delivery destination to request a quotation.
