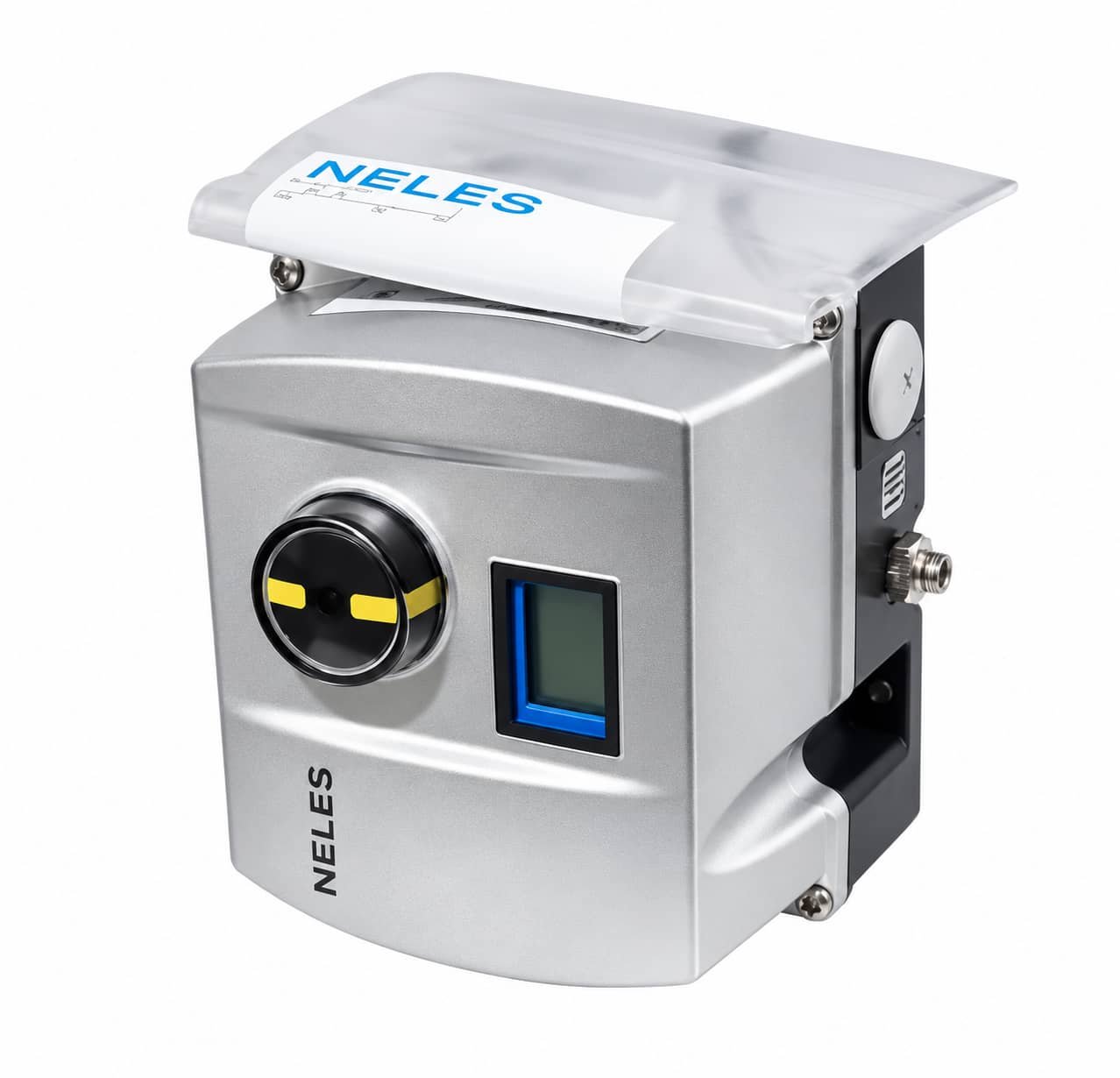

VALMET / Neles ND9103 HART Variants Intelligent Valve Controller
The VALMET / Neles ND9103 HART Variants Intelligent Valve Controller belongs to the ND9000 series of smart electro-pneumatic valve positioners. This product group includes seven ordering models: ND9103HNT, ND9103HXT, ND9103HX8T, ND9103HU, ND9103HUT, ND9103HZ and ND9103HZT.
Designed for compatible industrial pneumatic control valves, the ND9103 HART family combines accurate valve positioning, 4–20 mA HART communication and intelligent diagnostics. These capabilities support reliable process control, device configuration and maintenance activities in industrial automation systems.
Each model shares the ND9103 medium-capacity pneumatic configuration but has its own ordering suffix. Customers should select the exact model required by their existing installation or project specification.
Wuhan Yuli Automation Technology Co., Ltd. supplies VALMET / Neles intelligent valve controllers for international industrial customers. Contact us for model identification, pricing, availability and delivery information.
Available ND9103 HART Valve Controller Models
This variable product covers the following seven VALMET / Neles ND9103 HART ordering codes.
| Model Number | Communication | Product Family |
|---|---|---|
| ND9103HNT | HART | ND9000 / ND9100 |
| ND9103HXT | HART | ND9000 / ND9100 |
| ND9103HX8T | HART | ND9000 / ND9100 |
| ND9103HU | HART | ND9000 / ND9100 |
| ND9103HUT | HART | ND9000 / ND9100 |
| ND9103HZ | HART | ND9000 / ND9100 |
| ND9103HZT | HART | ND9000 / ND9100 |
Important: The ordering suffixes may indicate different device options or approvals. Exact differences must be verified using the applicable Valmet ordering documentation and product nameplate.
Key Features of ND9103 HART Intelligent Valve Controllers
Accurate Intelligent Valve Positioning
The ND9103 HART family uses the intelligent control architecture of the Neles ND9000 platform to regulate pneumatic actuator movement.
The controller compares the requested valve position with measured actuator feedback and adjusts pneumatic output to support accurate valve positioning.
This technology is intended to help maintain consistent control performance in compatible industrial valve automation applications.
4–20 mA HART Communication
The ND9103 HART configurations support conventional 4–20 mA valve control together with HART digital communication.
Compatible field communication tools and control systems can access supported configuration parameters, operating information and diagnostic data.
HART communication allows digital device information to be exchanged while retaining the analog control signal architecture.
Medium-Capacity Pneumatic Control
The ND9103 designation identifies the medium-capacity spool valve configuration within the ND9100 family.
This configuration is associated with actuator stroke volumes of approximately 1–3 dm³ according to the manufacturer ordering structure.
Actual actuator suitability depends on the pneumatic supply, actuator characteristics and required valve response.
Advanced Valve Diagnostics
The Neles ND9000 intelligent valve controller platform provides diagnostic capabilities designed to support valve performance monitoring and maintenance planning.
Available diagnostic functions include device self-diagnostics, online diagnostics, performance diagnostics and communication diagnostics.
Supported diagnostic information can help maintenance personnel evaluate valve operation and identify changes that may require inspection.
Local and Remote Configuration
The ND9000 platform supports local device configuration and remote configuration through compatible communication and asset management tools.
Supported functions depend on the device revision, installed options and engineering software.
Rotary and Linear Valve Applications
The ND9000 family supports compatible rotary and linear pneumatic valve actuators.
Suitable single-acting and double-acting actuator arrangements can be accommodated with the appropriate mounting and pneumatic configuration.
Industrial Enclosure Protection
The ND9100 standard enclosure family provides IP66 / NEMA 4X protection for applicable industrial installations.
Environmental suitability and hazardous-area approvals must be confirmed for the selected complete ordering code.
ND9103 HART Series Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Manufacturer | VALMET / Neles |
| Product Family | ND9000 |
| Product Series | ND9100 |
| Product Type | Intelligent Valve Controller / Smart Valve Positioner |
| Control Signal | 4–20 mA |
| Communication Protocol | HART |
| Pneumatic Configuration | Medium Capacity |
| Actuator Stroke Volume Category | 1–3 dm³ |
| Standard Enclosure Protection | IP66 / NEMA 4X |
| ND9100 Pneumatic Connections | G1/4 |
| Standard Series Temperature Range | -40°C to +85°C |
| Supported Valve Types | Compatible Rotary and Linear Valves |
| Actuator Arrangements | Compatible Single-Acting and Double-Acting Actuators |
| Diagnostics | ND9000 Intelligent Diagnostics |
| Available Models | ND9103HNT, ND9103HXT, ND9103HX8T, ND9103HU, ND9103HUT, ND9103HZ, ND9103HZT |
| Optional Features and Certifications | Depend on the Exact Ordering Code |
Technical Note: The specifications describe the applicable ND9000 / ND9100 family characteristics. Exact ratings, options and approvals should be verified for the selected model.
How Does the ND9103 HART Valve Positioner Work?
The ND9103 HART valve controller receives a 4–20 mA control signal from a compatible industrial process control system.
The controller processes the required valve position and compares it with the actual position measured through actuator feedback.
Its internal electronic control system regulates pneumatic output to move the actuator toward the requested position.
At the same time, HART digital communication allows supported device information and diagnostic data to be accessed through compatible field tools or host systems.
This combination of electronic control, pneumatic positioning and digital communication makes the ND9103 family suitable for a range of industrial process automation applications.
Industrial Applications of ND9103 HART Variants
Oil and Gas Processing
Compatible ND9103 HART configurations may be considered for pneumatic control valves in oil and gas processing facilities.
Intelligent positioning and diagnostic capabilities can support process control and maintenance activities when the required installation approvals are satisfied.
Petrochemical Plants
Petrochemical facilities use automated control valves for regulating flow, pressure and temperature.
ND9103 HART valve controllers can be considered for suitable control valve packages requiring digital communication and pneumatic positioning.
Chemical Processing
In chemical production plants, smart valve positioners support automated control valve operation and provide diagnostic information through compatible communication systems.
Pulp and Paper Industry
VALMET and Neles valve automation products are used in pulp and paper processing applications.
The ND9103 HART family may be selected for compatible control valve packages in production, recovery and utility systems.
Power Generation
Power generation facilities use pneumatic control valves across process and auxiliary systems.
Compatible ND9103 HART configurations can support intelligent valve positioning and monitoring within suitable automation architectures.
General Industrial Process Automation
The ND9103 HART family is relevant to process automation projects requiring smart valve positioning, 4–20 mA control and HART communication.
How to Select the Correct ND9103 HART Variant
When choosing between ND9103HNT, ND9103HXT, ND9103HX8T, ND9103HU, ND9103HUT, ND9103HZ and ND9103HZT, the complete manufacturer ordering code should be used.
Before placing an order, confirm the following information:
- Exact Model: Check the complete ND9103 ordering code.
- Communication: Verify 4–20 mA HART compatibility.
- Actuator Type: Identify the rotary or linear actuator.
- Pneumatic Capacity: Confirm suitability for the ND9103 medium-capacity configuration.
- Mounting: Check the required mechanical mounting accessories.
- Operating Conditions: Review temperature and environmental requirements.
- Certifications: Verify the applicable hazardous-area or regional approvals.
- Optional Features: Confirm all required suffix-dependent options.
- Replacement Requirements: Compare the complete original device nameplate.
For replacement projects, customers should provide the original valve controller nameplate and actuator model whenever possible.
ND9103 HART vs FOUNDATION Fieldbus vs PROFIBUS PA
The ND9103 intelligent valve controller family includes multiple communication configurations.
| Communication Family | Model Prefix | Communication |
|---|---|---|
| ND9103 HART | ND9103H | 4–20 mA HART |
| ND9103 FOUNDATION Fieldbus | ND9103F | FOUNDATION Fieldbus |
| ND9103 PROFIBUS PA | ND9103P | PROFIBUS PA |
These communication families have different electrical and host-system requirements. They should not be assumed interchangeable without engineering verification.
Related VALMET / Neles Intelligent Valve Controllers
Customers searching for ND9103 HART variants may also require other ND9000 models, including ND9103HN, ND9103HX, ND9103HX8, ND9103FN and ND9103PN.
Related products should be selected according to the required communication protocol, actuator configuration and complete manufacturer ordering code.
Explore more products at YULI Positioner.
For official manufacturer information, visit the Valmet Neles ND9000 Intelligent Valve Controller page.
Why Choose YULI Automation?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation components and valve positioning equipment for international customers.
- VALMET / Neles valve controller sourcing.
- Model identification and quotation assistance.
- Procurement support for maintenance and replacement projects.
- International customer service.
- Availability and delivery information upon request.
Frequently Asked Questions About ND9103 HART Variants
What models are included in this ND9103 HART product group?
This product group includes ND9103HNT, ND9103HXT, ND9103HX8T, ND9103HU, ND9103HUT, ND9103HZ and ND9103HZT.
Do these ND9103 models support HART communication?
Yes. These listed configurations belong to the ND9103 HART communication family.
What is the difference between ND9103HNT and ND9103HXT?
Both belong to the ND9103 HART family, but their ordering suffixes differ. The exact options and certifications must be checked using the applicable manufacturer ordering documentation.
What is ND9103HX8T?
ND9103HX8T is a specific ordering designation within the ND9103 HART intelligent valve controller family. Its complete configuration should be verified before purchase.
What is the difference between ND9103HU and ND9103HUT?
These are different ordering designations within the same product family. Their exact option differences should be confirmed using Valmet documentation.
What is the difference between ND9103HZ and ND9103HZT?
Both are ND9103 HART ordering configurations, but they should not be treated as identical without verifying the complete ordering code.
Can these ND9103 models be used with rotary valves?
The ND9000 family supports compatible rotary pneumatic valve actuators with the appropriate mounting arrangement.
Can ND9103 HART controllers be used with linear valves?
Yes. Compatible linear valve applications are supported within the ND9000 family when suitable mounting accessories are selected.
Can one ND9103 HART variant replace another?
Interchangeability must be confirmed using the complete manufacturer ordering code, required approvals, actuator configuration and installation requirements.
Where can I request pricing for ND9103 HART variants?
Contact Wuhan Yuli Automation Technology Co., Ltd. with the exact model number and required quantity to request pricing and availability.
