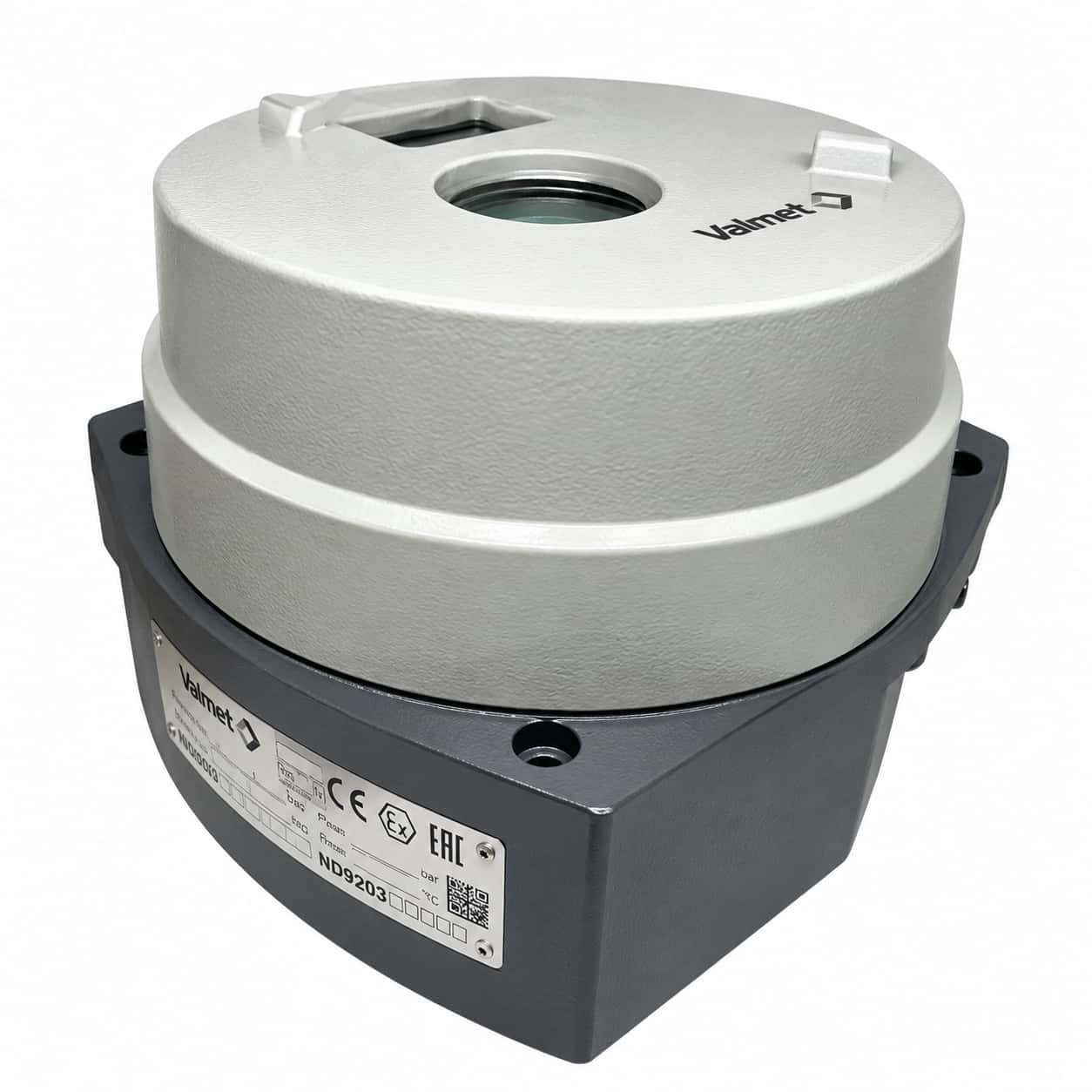

The ND9203 HART Valve Positioner from VALMET / Neles is an intelligent electro-pneumatic valve controller designed for precise valve positioning, reliable process control, and advanced diagnostics. As part of the ND9000 intelligent valve controller family, the ND9203H combines 4–20 mA HART communication, electronic closed-loop control, and an Ex d flameproof enclosure configuration.
Wuhan Yuli Automation Technology Co., Ltd. offers ten ND9203 HART Valve Positioner configurations: ND9203HE1, ND9203HE1T, ND9203HE2, ND9203HE2T, ND9203HE4, ND9203HE4T, ND9203HE5, ND9203HE5T, ND9203HE8, and ND9203HE8T.
These models are suitable for consideration in compatible pneumatic control valve applications across oil and gas, petrochemical, chemical processing, power generation, pulp and paper, and other industrial sectors. The correct configuration must be selected according to the actuator, communication requirements, hazardous-area certification, and original equipment specifications.
Available ND9203 HART Valve Positioner Models
This variable product includes ten VALMET / Neles ND9203H ordering configurations. Customers can select the required model number when submitting an inquiry.
| Model Number | Communication | Product Family |
|---|---|---|
| ND9203HE1 | 4–20 mA HART | ND9203H Ex d |
| ND9203HE1T | 4–20 mA HART | ND9203H Ex d |
| ND9203HE2 | 4–20 mA HART | ND9203H Ex d |
| ND9203HE2T | 4–20 mA HART | ND9203H Ex d |
| ND9203HE4 | 4–20 mA HART | ND9203H Ex d |
| ND9203HE4T | 4–20 mA HART | ND9203H Ex d |
| ND9203HE5 | 4–20 mA HART | ND9203H Ex d |
| ND9203HE5T | 4–20 mA HART | ND9203H Ex d |
| ND9203HE8 | 4–20 mA HART | ND9203H Ex d |
| ND9203HE8T | 4–20 mA HART | ND9203H Ex d |
Important: E1, E2, E4, E5, and E8 identify different ordering or approval configurations. Models with the T suffix must also be checked against the complete manufacturer ordering specification. Exact certification markings, optional functions, and installation requirements should be verified before ordering.
Key Features of the ND9203 HART Valve Positioner
1. Intelligent 4–20 mA HART Communication
The ND9203H operates with a 4–20 mA control signal and HART digital communication. This combination supports conventional analog positioning while providing access to compatible digital configuration and diagnostic functions.
Through suitable HART engineering tools, maintenance personnel can review supported device parameters, access diagnostic information, and assist with commissioning activities.
2. Ex d Flameproof Enclosure
The ND9203 belongs to the ND9200 flameproof enclosure family. Appropriately certified configurations are designed for specified hazardous-area applications where flameproof protection is required.
The selected certification must match the installation location, gas group, temperature class, environmental conditions, and applicable safety requirements. Different approval configurations should not be treated as interchangeable.
3. Medium-Capacity Pneumatic Control
The ND9203 is the medium-capacity pneumatic configuration within the ND9000 family. It is associated with actuator stroke volume requirements in the approximately 1–3 dm³ selection category.
Actual suitability depends on actuator characteristics, available instrument air, operating conditions, and required response performance. Customers should consult the manufacturer’s selection guidance before ordering.
4. Accurate Closed-Loop Valve Positioning
The ND9203 intelligent valve controller continuously compares the requested valve position with the actual actuator position. When a positioning difference occurs, the electronic control system regulates pneumatic output to move the actuator toward the required position.
This closed-loop positioning principle supports repeatable valve movement and stable control in compatible process applications.
5. Advanced Valve Diagnostics
The ND9000 platform incorporates intelligent diagnostic functions designed to support valve condition monitoring and maintenance planning.
Supported diagnostic information can help maintenance teams review controller status, identify changes in valve operation, and plan appropriate inspection or service activities.
The availability of specific diagnostic functions depends on the device configuration, software revision, and compatible maintenance tools.
6. Non-Contact Position Measurement
The ND9000 family uses non-contact position measurement technology to monitor actuator movement. This electronic feedback arrangement supports continuous position monitoring and closed-loop valve control.
7. Local Configuration and Calibration
The ND9000 platform provides a local user interface for supported configuration and calibration functions. Compatible HART engineering and asset management tools can also provide access to device parameters and diagnostic information.
Correct installation, commissioning, and calibration are important for reliable valve positioning performance.
8. Rotary and Linear Valve Compatibility
The ND9000 intelligent valve controller family supports compatible rotary and linear control valve applications. Suitable mounting accessories, mechanical couplings, and pneumatic connections are required for the selected actuator arrangement.
ND9203 HART Valve Positioner Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | VALMET / Neles |
| Series | ND9000 / ND9200 |
| Model Family | ND9203H |
| Product Type | Intelligent Electro-Pneumatic Valve Positioner |
| Communication | 4–20 mA HART |
| Enclosure Family | Ex d Flameproof |
| Pneumatic Capacity | Medium Capacity |
| Actuator Stroke Volume Category | Approximately 1–3 dm³ |
| Position Measurement | Non-Contact Position Feedback |
| Control Method | Electronic Closed-Loop Positioning |
| Valve Applications | Compatible Rotary and Linear Valves |
| Diagnostics | Intelligent Device and Valve Diagnostics |
| Configuration | Local Interface and Compatible HART Tools |
| Hazardous-Area Approval | Depends on Exact Ordering Configuration |
| Available Configurations | 10 Models |
Technical Notice: These specifications describe the ND9203H product family. Exact electrical ratings, environmental limits, certification markings, and optional functions must be confirmed using current Valmet technical documentation and the original product nameplate.
ND9203 HART Valve Positioner Model Selection Guide
ND9203HE1 and ND9203HE1T
ND9203HE1 and ND9203HE1T are ordering configurations within the ND9203 HART Valve Positioner family. Both belong to the medium-capacity pneumatic platform with HART communication.
Customers should verify the complete ordering code and any optional features before selecting a replacement.
ND9203HE2 and ND9203HE2T
These models are additional ND9203H configurations. For replacement applications, the original device nameplate and required hazardous-area certification should be checked carefully.
ND9203HE4 and ND9203HE4T
ND9203HE4 and ND9203HE4T belong to the same ND9203H product family. Exact approval requirements and optional functions should be confirmed against the manufacturer’s ordering documentation.
ND9203HE5 and ND9203HE5T
These configurations support compatible HART-based valve automation applications. Customers should verify the complete model number, actuator compatibility, and required approval designation.
ND9203HE8 and ND9203HE8T
ND9203HE8 and ND9203HE8T are further ordering configurations within the ND9203H series. The appropriate version should be selected using the original equipment specifications and project requirements.
How Does the ND9203 HART Valve Positioner Work?
The ND9203H receives a valve positioning command from a compatible industrial control system through its 4–20 mA input.
The electronic controller compares the requested position with the measured actuator position. When a difference is detected, it adjusts pneumatic output to move the actuator toward the required position.
As the valve moves, the feedback system continuously monitors actuator position. The controller makes further adjustments as needed to maintain the requested operating position.
HART communication allows compatible maintenance systems to access supported device parameters and diagnostic information.
Industrial Applications of ND9203 HART Valve Positioners
Oil and Gas Processing
Appropriately certified ND9203H configurations can be considered for compatible pneumatic control valves in oil and gas processing facilities. Intelligent positioning and diagnostics can support process monitoring and maintenance planning.
Petrochemical Plants
Petrochemical facilities use automated control valves to regulate flow, pressure, and temperature. Suitable ND9203H configurations can support compatible process control applications.
Chemical Manufacturing
Chemical processing plants require accurate valve positioning for a wide range of industrial operations. The ND9203H can support compatible pneumatic valve assemblies using HART communication.
Pulp and Paper Industry
Pulp and paper facilities use pneumatic control valves in production, chemical recovery, and utility systems. The medium-capacity ND9203 configuration may suit appropriately sized actuator applications.
Power Generation
Power plants use intelligent valve controllers in process and auxiliary systems. HART communication can support configuration and diagnostics through compatible engineering tools.
General Industrial Automation
The ND9203H can also be considered for other industrial facilities using compatible pneumatic actuators and 4–20 mA HART control systems.
ND9202 vs ND9203 vs ND9206 Valve Positioners
The ND9200 family provides different pneumatic capacity configurations to accommodate different actuator stroke volume requirements.
| Model Family | Pneumatic Capacity | Actuator Stroke Volume Category |
|---|---|---|
| ND9202 | Low Capacity | Below 1 dm³ |
| ND9203 | Medium Capacity | Approximately 1–3 dm³ |
| ND9206 | High Capacity | Above 3 dm³ |
These models should not be considered directly interchangeable. Selection depends on actuator characteristics, pneumatic requirements, and manufacturer recommendations.
ND9203 HART vs FOUNDATION Fieldbus and PROFIBUS PA
The VALMET / Neles ND9000 platform is available with different industrial communication technologies.
| Model Family | Communication Protocol |
|---|---|
| ND9203H | 4–20 mA HART |
| ND9203F | FOUNDATION Fieldbus |
| ND9203P | PROFIBUS PA |
These communication technologies require different control system interfaces and are not directly interchangeable.
How to Select the Correct ND9203 HART Valve Positioner
- Complete Model Number: Confirm the original ND9203 ordering code.
- Communication: Verify 4–20 mA HART compatibility.
- Hazardous-Area Certification: Check the required approval marking.
- Actuator Capacity: Confirm actuator stroke volume.
- Valve Type: Identify the rotary or linear valve arrangement.
- Mounting Accessories: Verify mounting brackets and couplings.
- Pneumatic Connections: Confirm air supply and connection requirements.
- Optional Features: Check the complete ordering code, including the T suffix where applicable.
- Replacement Compatibility: Compare the original equipment nameplate.
For replacement projects, customers should provide the complete model number, original device nameplate photograph, required quantity, and delivery destination.
Frequently Asked Questions About ND9203 HART Valve Positioners
What is the ND9203 HART Valve Positioner?
It is an intelligent electro-pneumatic valve controller from VALMET / Neles that combines 4–20 mA HART communication, closed-loop positioning, and intelligent diagnostic functions.
Which ND9203 HART models are included?
This product listing includes ND9203HE1, ND9203HE1T, ND9203HE2, ND9203HE2T, ND9203HE4, ND9203HE4T, ND9203HE5, ND9203HE5T, ND9203HE8, and ND9203HE8T.
What is the difference between ND9203HE1 and ND9203HE1T?
They are separate ordering configurations. The complete manufacturer ordering specification should be checked to identify the exact optional features associated with the T suffix.
What does Ex d mean?
Ex d refers to a flameproof enclosure protection concept used in appropriately certified equipment for specified hazardous-area installations.
Is ND9203 suitable for medium-sized pneumatic actuators?
The ND9203 belongs to the medium-capacity pneumatic configuration of the ND9000 family. Actual suitability depends on actuator characteristics and application requirements.
Can ND9203H replace ND9203F?
Not directly. ND9203H uses HART communication, while ND9203F uses FOUNDATION Fieldbus. The existing control system must support the selected communication protocol.
Does ND9203H support valve diagnostics?
Yes. The ND9000 platform includes intelligent diagnostic functions designed to support device monitoring and maintenance planning.
Can ND9203H be used with rotary and linear valves?
The ND9000 family supports compatible rotary and linear valve applications when suitable mounting accessories are selected.
How can I request ND9203 pricing?
Contact Wuhan Yuli Automation with the complete model number, required quantity, and delivery destination.
Why Choose Wuhan Yuli Automation?
Wuhan Yuli Automation Technology Co., Ltd. is an industrial automation supplier established in 2017.
We supply brand-new, original industrial automation products with a minimum one-year warranty under agreed sales terms. Our product range includes VALMET / Neles valve controllers, ABB automation modules, industrial communication equipment, pneumatic actuators, and industrial spare parts.
Our team supports product identification, international procurement inquiries, and delivery coordination for industrial maintenance and equipment replacement projects.
Explore additional industrial automation products at Wuhan Yuli Automation.
Official VALMET Technical Information
For current manufacturer information, technical specifications, and product documentation, visit the official Valmet Flow Control website.
Customers should use the latest manufacturer documentation to verify complete ordering codes, approval markings, and installation requirements.
