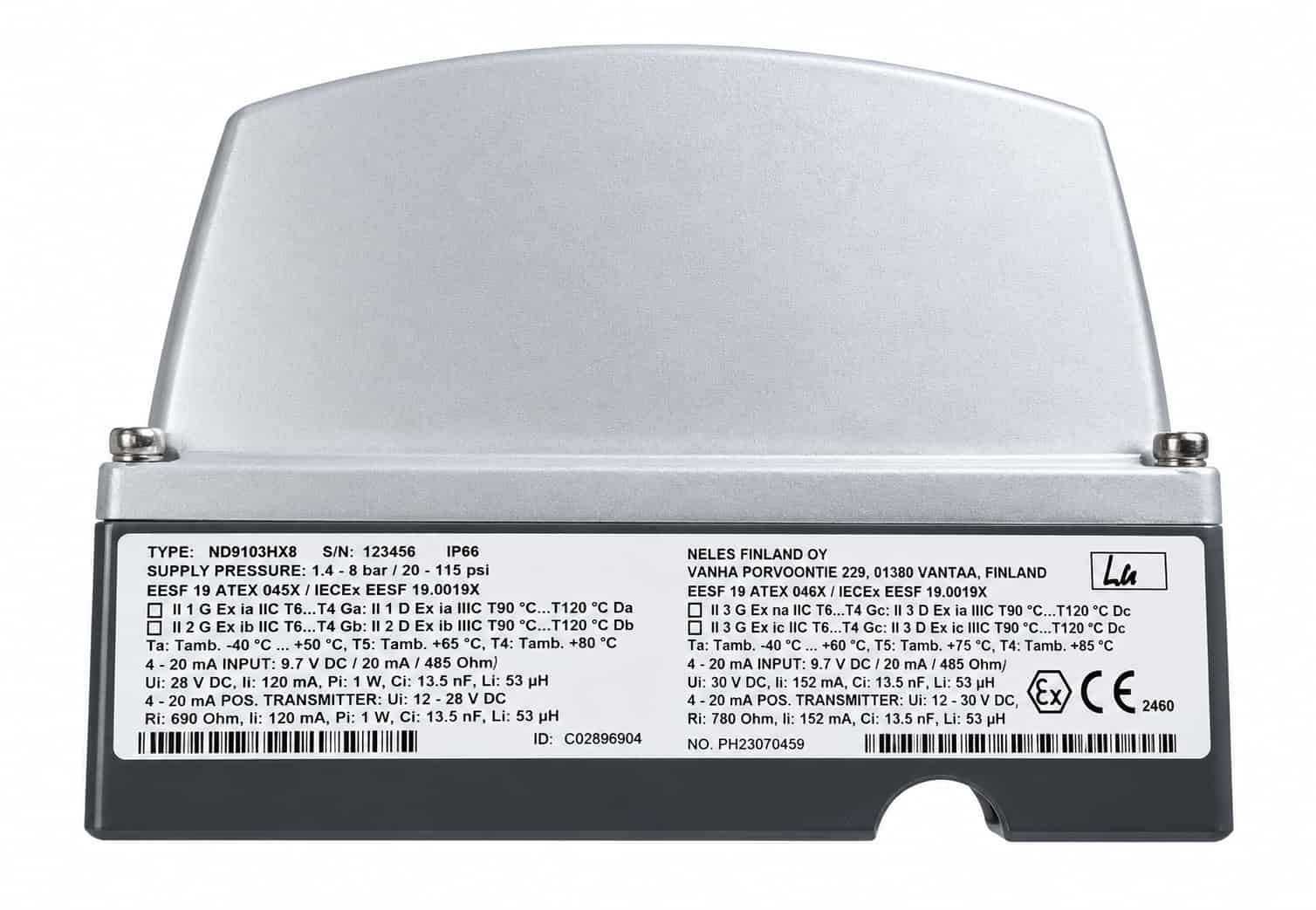

VALMET / Neles ND9103HX8 Intelligent Valve Controller
The VALMET / Neles ND9103HX8 Intelligent Valve Controller is a smart electro-pneumatic valve positioner belonging to the Neles ND9000 series. It is designed for accurate pneumatic control valve positioning, digital HART communication and valve diagnostics in industrial process automation systems.
The ND9103HX8 valve positioner is part of the ND9100 product family and features the ND9103 medium-capacity pneumatic configuration. Its 4–20 mA input with HART communication enables conventional analog control together with supported digital configuration and monitoring functions.
The ND9103HX8 is identified by its complete manufacturer ordering code. When selecting this model for a new installation or replacement project, the HX8 configuration should be checked against the applicable Valmet documentation and original device nameplate.
Wuhan Yuli Automation Technology Co., Ltd. supplies VALMET / Neles intelligent valve controllers for international industrial automation customers. Contact us for ND9103HX8 pricing, availability and delivery information.
Key Features of VALMET ND9103HX8
Intelligent Electro-Pneumatic Valve Positioning
The ND9103HX8 belongs to the ND9000 intelligent valve controller platform, which combines electronic position control with pneumatic actuator regulation.
The controller compares the requested valve position with actuator feedback and adjusts its pneumatic output to support stable valve movement and precise positioning.
4–20 mA Input with HART Communication
The ND9103HX8 HART valve positioner supports 4–20 mA control with HART digital communication.
Through compatible host systems and configuration tools, HART communication provides access to supported operating information, device settings and diagnostic functions.
Medium-Capacity Pneumatic Configuration
The ND9103 designation identifies the medium-capacity spool valve configuration within the ND9100 family.
This pneumatic arrangement is associated with an actuator stroke volume category of approximately 1–3 dm³. Actual suitability depends on actuator requirements, available air supply and required operating performance.
Advanced Valve Diagnostics
The ND9000 platform provides diagnostic capabilities designed to support valve performance monitoring and maintenance planning.
Depending on the device revision and compatible software, available diagnostic information may include operating status, valve performance indicators and controller-related diagnostic data.
Rotary and Linear Valve Applications
The ND9000 intelligent valve controller family supports compatible rotary and linear pneumatic valve actuators.
Installation requires the appropriate mechanical mounting arrangement and pneumatic connections.
Industrial Enclosure Protection
The ND9100 standard enclosure family is designed for industrial environments and provides IP66 / NEMA 4X protection.
The exact ND9103HX8 enclosure, environmental approvals and hazardous-area suitability must be confirmed using the applicable manufacturer documentation.
VALMET ND9103HX8 Model Number Identification
The ND9103HX8 designation identifies a specific configuration within the Neles ND9000 intelligent valve controller family.
| Model Element | Description |
|---|---|
| ND9000 | Neles Intelligent Valve Controller Family |
| ND9100 | Standard Enclosure Product Family |
| ND9103 | Medium-Capacity Pneumatic Configuration |
| H | 4–20 mA Input with HART Communication |
| X8 | Model-Specific Ordering Configuration; Verify the Applicable Manufacturer Ordering Code |
Important: The X8 ordering suffix must be confirmed against the applicable Valmet technical documentation. Do not assume that ND9103HX8, ND9103HX and ND9103HN have identical options, certifications or replacement compatibility.
VALMET / Neles ND9103HX8 Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Manufacturer | VALMET / Neles |
| Model | ND9103HX8 |
| Product Family | ND9000 |
| Product Series | ND9100 |
| Product Type | Intelligent Valve Controller / Smart Valve Positioner |
| Control Input | 4–20 mA |
| Communication Protocol | HART |
| Pneumatic Capacity | Medium-Capacity Configuration |
| Actuator Stroke Volume Category | Approximately 1–3 dm³ |
| ND9100 Standard Enclosure Rating | IP66 / NEMA 4X |
| ND9100 Pneumatic Connections | G1/4 |
| Valve Applications | Compatible Rotary and Linear Valves |
| Actuator Applications | Compatible Single-Acting and Double-Acting Pneumatic Actuators |
| Diagnostics | ND9000 Series Diagnostic Functions |
| X8 Configuration | Verify Against the Complete Manufacturer Ordering Code |
| Approvals and Certifications | Confirm for the Exact Device Configuration |
Technical Note: The specifications above describe the relevant ND9000 and ND9100 family characteristics. Exact ND9103HX8 ratings, optional features, certifications and operating limits should be verified against the device nameplate and applicable Valmet documentation.
How Does the ND9103HX8 Intelligent Valve Controller Work?
The ND9103HX8 receives a 4–20 mA control signal from a compatible industrial control system, such as a distributed control system (DCS).
The intelligent controller processes the requested valve position and compares it with measured actuator feedback.
Its internal control algorithm adjusts the pneumatic output to move the actuator toward the required position.
Meanwhile, HART digital communication enables supported configuration and diagnostic data exchange through compatible field communication tools or host systems.
This combination of digital control, pneumatic positioning and communication capabilities supports automated valve operation in industrial process applications.
Industrial Applications of Neles ND9103HX8
Oil and Gas Processing
Compatible ND9103HX8 configurations may be considered for pneumatic control valve packages used in oil and gas processing facilities.
Intelligent positioning and diagnostic capabilities can support process control and maintenance activities where the required installation approvals are satisfied.
Petrochemical Plants
Petrochemical facilities use automated control valves for flow, pressure and temperature regulation.
The ND9103HX8 can be considered for suitable valve automation applications requiring HART communication and intelligent pneumatic positioning.
Chemical Processing
In chemical production systems, intelligent valve controllers support compatible pneumatic control valves used for process regulation.
Digital diagnostics can provide useful operating information for maintenance planning.
Pulp and Paper Industry
VALMET and Neles valve automation equipment is associated with pulp and paper process applications.
The ND9103HX8 may be selected for compatible control valve installations used in pulp processing, chemical recovery and industrial utility systems.
Power Generation
Power plants use pneumatic control valves in various process and auxiliary systems.
Compatible ND9103HX8 installations can support accurate valve positioning and industrial control system integration.
General Industrial Process Automation
The ND9103HX8 is relevant to process automation projects requiring intelligent valve positioning, 4–20 mA input and HART communication.
ND9103HX8 vs ND9103HX vs ND9103HN
The ND9103HX8, ND9103HX and ND9103HN belong to the same ND9103 intelligent valve controller family.
All three designations share the ND9103 medium-capacity configuration and HART communication designation.
However, their ordering suffixes differ, so their exact options and certifications should be reviewed individually.
| Model | Shared Series Characteristics | Selection Requirement |
|---|---|---|
| ND9103HN | ND9103 / HART | Verify HN Configuration |
| ND9103HX | ND9103 / HART | Verify HX Configuration |
| ND9103HX8 | ND9103 / HART | Verify HX8 Configuration |
Replacement Advice: For an existing ND9103HX8 installation, use the exact manufacturer part number and confirm all relevant approvals and accessories before selecting a replacement.
ND9103HX8 Replacement and Selection Guide
Before purchasing a VALMET / Neles ND9103HX8, confirm the following information:
- Exact Model: Verify ND9103HX8 on the original nameplate.
- Control Signal: Confirm the required 4–20 mA input.
- Communication: Verify HART compatibility.
- Actuator Type: Identify the rotary or linear actuator arrangement.
- Pneumatic Capacity: Confirm the medium-capacity ND9103 configuration is suitable.
- Mounting Kit: Verify the required mechanical mounting interface.
- Air Supply: Check the manufacturer’s specified pneumatic operating requirements.
- Environmental Conditions: Confirm temperature and enclosure requirements.
- Certifications: Verify any required hazardous-area or regional approvals.
- Ordering Options: Confirm the X8 configuration using the complete manufacturer code.
For replacement inquiries, customers are encouraged to provide the existing valve controller nameplate, actuator model and required quantity.
Related VALMET / Neles ND9000 Intelligent Valve Controllers
The ND9103HX8 is part of the broader Neles ND9000 intelligent valve controller family.
Related products include:
- VALMET / Neles ND9103HN Intelligent Valve Controller
- VALMET / Neles ND9103HX Intelligent Valve Controller
- VALMET / Neles ND9103HX8T Intelligent Valve Controller
- VALMET / Neles ND9103HNT Intelligent Valve Controller
- VALMET / Neles ND9102 Intelligent Valve Controller
- VALMET / Neles ND9106 Intelligent Valve Controller
- VALMET / Neles ND9200 Series
- VALMET / Neles ND9300 Series
Explore additional products on YULI Positioner.
For official product information, visit the Valmet Neles ND9000 Intelligent Valve Controller page.
Why Choose YULI Automation?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation components, valve controllers and positioning equipment for international customers.
- VALMET / Neles intelligent valve controller sourcing.
- Exact model inquiries for ND9103HX8.
- Industrial maintenance and replacement procurement support.
- Quotation and availability assistance.
- International customer service.
- Delivery information upon request.
Frequently Asked Questions About VALMET ND9103HX8
What is the VALMET / Neles ND9103HX8?
The ND9103HX8 is an intelligent electro-pneumatic valve controller belonging to the Neles ND9000 series, designed for compatible industrial pneumatic control valve applications.
Does ND9103HX8 support HART communication?
Yes. The H designation identifies 4–20 mA input with HART digital communication.
What is the difference between ND9103HX8 and ND9103HX?
Both models belong to the ND9103 HART valve controller family, but their ordering suffixes differ. The exact X8 configuration should be confirmed using Valmet documentation.
Is ND9103HX8 a smart valve positioner?
Yes. It belongs to the ND9000 intelligent valve controller family, which combines digital valve positioning with pneumatic control and diagnostic capabilities.
What pneumatic capacity does ND9103HX8 use?
The ND9103 designation identifies the medium-capacity pneumatic configuration.
Can ND9103HX8 be used with rotary valves?
The ND9000 family supports compatible rotary valve actuators with the appropriate mounting arrangement.
Can ND9103HX8 be used with linear valves?
Compatible linear valve applications are supported by the ND9000 platform when suitable mounting accessories are selected.
Can ND9103HX8 replace ND9103HN?
Interchangeability should not be assumed. Verify the complete ordering code, required certifications, actuator arrangement and installation conditions.
What information should I provide when ordering ND9103HX8?
Provide the exact model number, original device nameplate, required quantity and any applicable certification or mounting requirements.
Where can I request ND9103HX8 pricing?
Contact Wuhan Yuli Automation Technology Co., Ltd. for pricing, availability and international delivery information.
Request a Quote – VALMET / Neles ND9103HX8
Looking for a VALMET / Neles ND9103HX8 Intelligent Valve Controller?
Contact YULI Automation for pricing, availability and delivery information.
