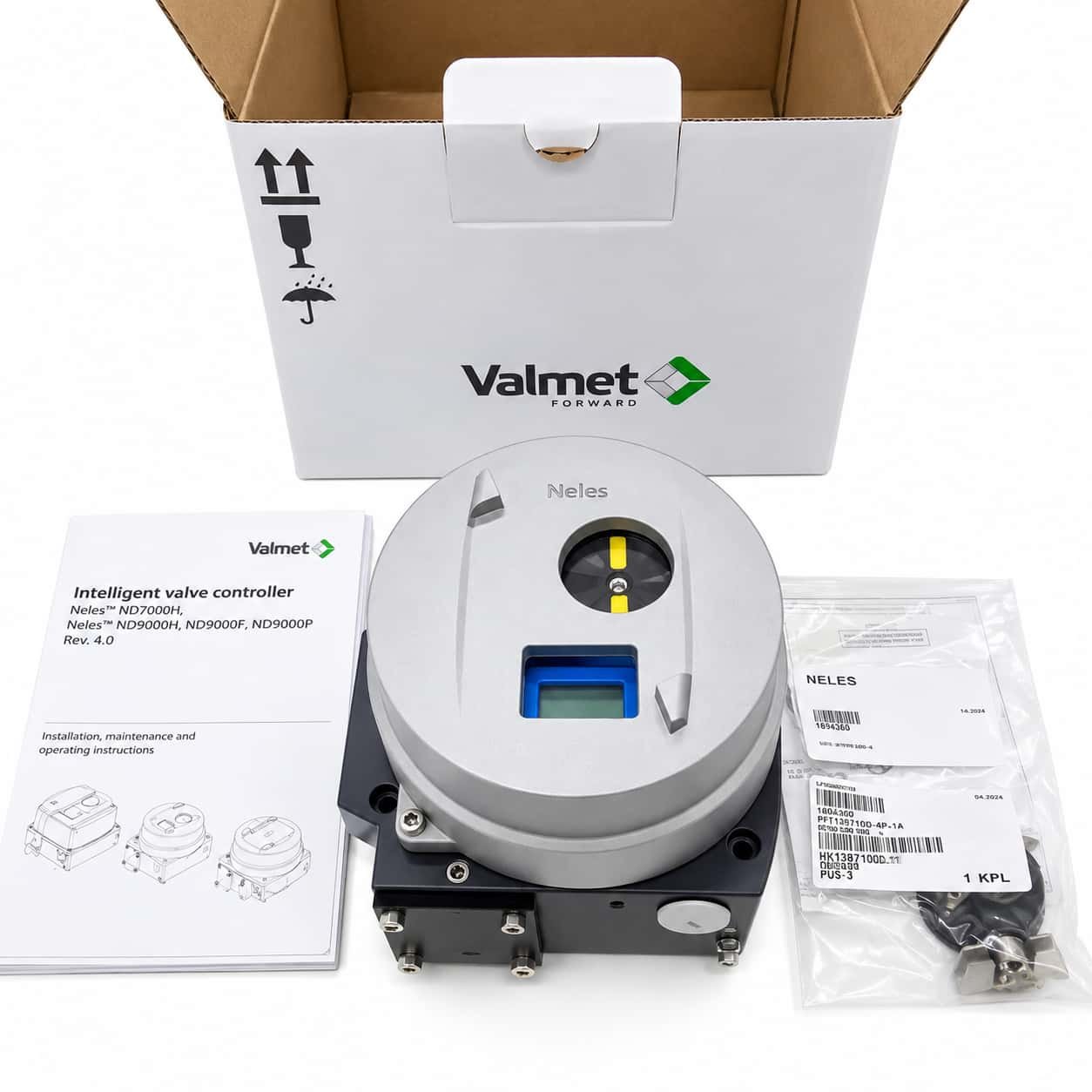

ND9106 HART Valve Positioner – VALMET / Neles ND9000 Series
The ND9106 HART Valve Positioner is part of the VALMET / Neles ND9000 intelligent valve controller family. Designed for demanding industrial process automation applications, the ND9106 series combines precise electro-pneumatic positioning, 4–20 mA HART communication, high-capacity pneumatic control and advanced valve diagnostics.
This product page covers ten ND9106 HART ordering variants: ND9106HNT, ND9106HXT, ND9106HX8T, ND9106HU, ND9106HUT, ND9106HZ, ND9106HZT, ND9106HX8T/I02, ND9106HXT-A1-DS04 and ND9106HX2/I02-A3.
These models belong to the ND9106 HART family but represent different ordering configurations. Customers should select the complete model number that matches their existing equipment or project requirements. Special option codes must be verified against the original device nameplate and manufacturer ordering documentation.
Wuhan Yuli Automation Technology Co., Ltd. supplies VALMET / Neles valve positioning equipment for industrial maintenance, equipment replacement and international procurement. Contact our team for pricing, availability and assistance identifying the correct ND9106 HART Valve Positioner.
Available ND9106 HART Valve Positioner Models
The following models are included in this variable product listing. All are grouped under the ND9106 HART family for convenient model selection and quotation requests.
| Model Number | Communication Family | Ordering Notes |
|---|---|---|
| ND9106HNT | HART | Confirm complete configuration |
| ND9106HXT | HART | Confirm complete configuration |
| ND9106HX8T | HART | Confirm complete configuration |
| ND9106HU | HART | Confirm complete configuration |
| ND9106HUT | HART | Confirm complete configuration |
| ND9106HZ | HART | Confirm complete configuration |
| ND9106HZT | HART | Confirm complete configuration |
| ND9106HX8T/I02 | HART family | Verify /I02 option |
| ND9106HXT-A1-DS04 | HART family | Verify A1 and DS04 options |
| ND9106HX2/I02-A3 | HART family | Verify HX2, /I02 and A3 configuration |
Ordering Notice: The exact meaning of suffixes and additional option codes depends on the manufacturer’s ordering structure and product revision. Do not assume that these variants have identical approvals, enclosure options, accessories or installation requirements.
Key Features of the ND9106 HART Valve Positioner
4–20 mA HART Communication
The ND9106 HART Valve Positioner family uses a 4–20 mA analog positioning signal together with HART digital communication.
This communication architecture enables compatible process control systems to send positioning commands while supported digital information is exchanged through HART communication tools.
Available information may include device status, configuration parameters, diagnostic data and other supported instrument information.
HART communication is particularly useful in facilities that use conventional analog process control infrastructure while requiring intelligent field instrument diagnostics.
High-Capacity Pneumatic Control
The ND9106 family is associated with the high-capacity pneumatic configuration of the ND9000 platform. This category is intended for suitable pneumatic actuators with stroke volumes greater than 3 dm³.
High pneumatic capacity is an important consideration when selecting valve positioning equipment for larger actuator applications.
Actual compatibility must be evaluated using actuator specifications, air supply conditions, required positioning performance and the manufacturer’s selection guidance.
Intelligent Closed-Loop Positioning
The ND9106 HART Valve Positioner uses electronic position measurement and pneumatic output regulation to control compatible valve actuators.
During operation, the controller compares the requested valve position with actual position feedback and adjusts pneumatic output to reduce positioning error.
This closed-loop control system supports repeatable valve movement and stable positioning in suitable industrial process applications.
Advanced Valve Diagnostics
The VALMET / Neles ND9000 platform includes intelligent diagnostic functions designed to support maintenance planning and valve performance monitoring.
Supported capabilities include device self-diagnostics, online monitoring, performance diagnostics and communication diagnostics, depending on the installed device version and compatible software.
Diagnostic information can assist maintenance personnel in investigating valve behavior, monitoring operating trends and identifying potential maintenance requirements.
Non-Contact Position Measurement
The ND9000 platform incorporates non-contact position measurement technology for monitoring valve movement.
This measurement approach supports reliable position feedback without depending entirely on conventional mechanical contact-based sensing arrangements.
Local Configuration and Calibration
The ND9000 intelligent valve controller family provides local configuration and calibration functions.
Compatible engineering tools can also support remote configuration, parameter adjustment and diagnostic review.
Correct setup and calibration are important after installation, actuator replacement or maintenance work.
Rotary and Linear Valve Compatibility
ND9000 intelligent valve controllers are designed for compatible rotary and linear control valve applications.
Depending on the actuator arrangement, suitable mounting accessories and pneumatic connections are required.
The correct configuration should always be selected according to the complete valve and actuator specifications.
Industrial Enclosure Protection
The standard ND9100 enclosure family provides IP66 / NEMA 4X protection.
However, exact environmental ratings, hazardous-area approvals and installation limitations must be confirmed for the selected ordering variant.
ND9106 HART Valve Positioner Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | VALMET / Neles |
| Product Family | ND9106 HART |
| Series | ND9000 / ND9100 |
| Product Type | Intelligent Electro-Pneumatic Valve Positioner |
| Communication | 4–20 mA HART |
| Pneumatic Capacity | High Capacity |
| Actuator Stroke Volume Category | Greater Than 3 dm³ |
| Position Feedback | Non-Contact Position Measurement |
| Control Method | Closed-Loop Electronic Positioning |
| Standard Enclosure Family | IP66 / NEMA 4X |
| Valve Applications | Compatible Rotary and Linear Control Valves |
| Actuator Applications | Compatible Pneumatic Actuators |
| Diagnostics | ND9000 Intelligent Diagnostics |
| Configuration | Local and Supported Remote Configuration |
| Available Models | 10 Ordering Variants |
| Certifications | Dependent on Exact Ordering Configuration |
Technical Note: These are applicable ND9000 family characteristics, not a guarantee that every option is identical across all ten ordering codes. Verify model-specific electrical ratings, approvals, environmental limits and accessories before purchase.
How Does an ND9106 HART Valve Positioner Work?
The ND9106 HART Valve Positioner receives a positioning command from a compatible process control system through its 4–20 mA interface.
The controller compares the requested valve position with the actual position measured by its feedback system.
When a positioning difference is detected, the electronic control system regulates pneumatic output to move the actuator toward the requested position.
The feedback system continues monitoring actuator movement during operation, allowing the controller to make further adjustments as required.
Supported HART digital communication provides access to device configuration, status and diagnostic information through compatible host systems or maintenance tools.
This combination of electronic positioning, pneumatic regulation and digital communication makes the ND9106 family relevant to industrial facilities using intelligent control valve instrumentation.
Industrial Applications of ND9106 HART Positioners
Oil and Gas Processing
ND9106 HART models can be considered for compatible pneumatic control valve assemblies used in oil and gas processing facilities.
Suitable applications may benefit from intelligent positioning, high-capacity pneumatic control and diagnostic information.
Petrochemical Industry
Petrochemical facilities use automated valves to regulate process flow, pressure and temperature.
ND9106 HART controllers may support suitable pneumatic actuator installations where reliable positioning and maintenance diagnostics are important.
Chemical Processing Plants
Chemical production facilities depend on automated control valves for process regulation.
Intelligent valve controllers can help support positioning performance and maintenance monitoring in compatible installations.
Pulp and Paper Industry
Pulp and paper plants use pneumatic control valves in production systems, chemical recovery operations and plant utilities.
The ND9106 high-capacity family may be suitable for selected larger actuator applications.
Power Generation
Power plants use pneumatic valves in various process and auxiliary systems.
Compatible ND9106 HART installations can provide electronic positioning and supported device diagnostics.
General Industrial Process Automation
Other potential applications include industrial facilities using HART-compatible control systems and pneumatic valve actuators requiring high-capacity positioning equipment.
ND9106 HART Variants vs FOUNDATION Fieldbus and PROFIBUS PA
The VALMET / Neles ND9000 platform is available with several communication technologies.
The ND9106 HART Valve Positioner family uses 4–20 mA HART communication, while ND9106F and ND9106P models belong to different digital fieldbus families.
| Model Family | Communication | Pneumatic Category |
|---|---|---|
| ND9106H | 4–20 mA HART | High Capacity |
| ND9106F | FOUNDATION Fieldbus | High Capacity |
| ND9106P | PROFIBUS PA | High Capacity |
These communication technologies are not directly interchangeable. The correct controller must match the plant’s host system, wiring and device integration requirements.
ND9106 vs ND9103 – Pneumatic Capacity Comparison
The ND9106 and ND9103 families share the intelligent ND9000 control platform but differ in their base pneumatic capacity categories.
| Model Family | Pneumatic Capacity |
|---|---|
| ND9106 | High Capacity |
| ND9103 | Medium Capacity |
The correct model should be selected according to actuator stroke volume, required response performance and manufacturer specifications.
How to Select the Correct ND9106 HART Variant
When purchasing an ND9106 HART Valve Positioner, selecting the correct complete ordering code is essential.
- Exact Model Number: Match every letter, number, hyphen and slash.
- Communication: Confirm 4–20 mA HART compatibility.
- Actuator Size: Verify the ND9106 high-capacity pneumatic category.
- Valve Type: Confirm the rotary or linear valve arrangement.
- Mounting: Check brackets, couplings and other accessories.
- Air Supply: Confirm pneumatic operating requirements.
- Certifications: Verify required hazardous-area approvals.
- Special Options: Check suffixes such as /I02, A1, DS04 and A3.
- Device Revision: Confirm compatibility with the existing control system.
- Replacement Requirements: Compare the original nameplate and complete ordering code.
For replacement projects, customers should provide a photograph of the original device nameplate, the actuator model and the required quantity.
ND9106 HART Valve Positioner Frequently Asked Questions
What is the ND9106 HART Valve Positioner?
It is a family of intelligent electro-pneumatic valve controllers from VALMET / Neles, featuring 4–20 mA HART communication and high-capacity pneumatic control.
Which ND9106 HART models are available on this page?
The available model selections are ND9106HNT, ND9106HXT, ND9106HX8T, ND9106HU, ND9106HUT, ND9106HZ, ND9106HZT, ND9106HX8T/I02, ND9106HXT-A1-DS04 and ND9106HX2/I02-A3.
Does ND9106HNT support HART communication?
ND9106HNT belongs to the ND9106 HART ordering family. Confirm the complete configuration and device nameplate before installation.
What is ND9106HXT?
ND9106HXT is an ND9106 HART ordering variant. Its exact enclosure, approval and additional options should be checked against manufacturer documentation.
What is ND9106HX8T?
ND9106HX8T is another ordering configuration within the ND9106 HART family. The complete suffix must be matched for replacement applications.
What is the difference between ND9106HU and ND9106HUT?
These are distinct ordering designations. Their precise differences should be confirmed using the manufacturer’s ordering structure rather than inferred from the model names alone.
Are ND9106HZ and ND9106HZT interchangeable?
Not automatically. Verify the complete ordering specifications, certifications and installation requirements before substituting one model for another.
What is ND9106HX8T/I02?
ND9106HX8T/I02 is a special ordering designation within the ND9106 HART family. The /I02 option requires manufacturer confirmation.
What is ND9106HXT-A1-DS04?
ND9106HXT-A1-DS04 is a special configuration. The A1 and DS04 options should be checked against the relevant ordering documentation.
What is ND9106HX2/I02-A3?
ND9106HX2/I02-A3 is a distinct ordering configuration. The exact HX2, /I02 and A3 requirements should be verified before purchase.
Can ND9106 HART positioners be used with rotary valves?
The ND9000 family supports compatible rotary control valve applications with suitable mounting accessories.
Can ND9106 HART positioners be used with linear valves?
Compatible linear valve applications are supported when the appropriate mounting and actuator arrangement is selected.
How can I request pricing for ND9106 HART variants?
Contact YULI Automation with the exact model number, required quantity and delivery destination to request pricing and availability information.
Official VALMET / Neles Technical Resources
For manufacturer specifications and ordering guidance, consult the following resources:
- Valmet Neles ND9000 Intelligent Valve Controller
- Valmet ND9000 Technical Data
- Valmet ND9000 Product and Ordering Guide
Why Buy ND9106 HART Variants from YULI Automation?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation products and intelligent valve positioning equipment for international customers.
Our team supports model identification, procurement inquiries and order coordination for VALMET / Neles products.
- Support for ten ND9106 HART ordering variants.
- Assistance with complete model identification.
- Pricing and availability information upon request.
- Procurement support for maintenance and replacement projects.
- International order coordination.
Explore additional VALMET / Neles intelligent valve controllers at YULI Positioner.
Request a Quote – ND9106 HART Valve Positioner
Looking for an ND9106 HART Valve Positioner?
Select the required model from the available product variations and contact YULI Automation for pricing, availability and delivery information.
Please provide the complete ordering code, required quantity and destination country.
