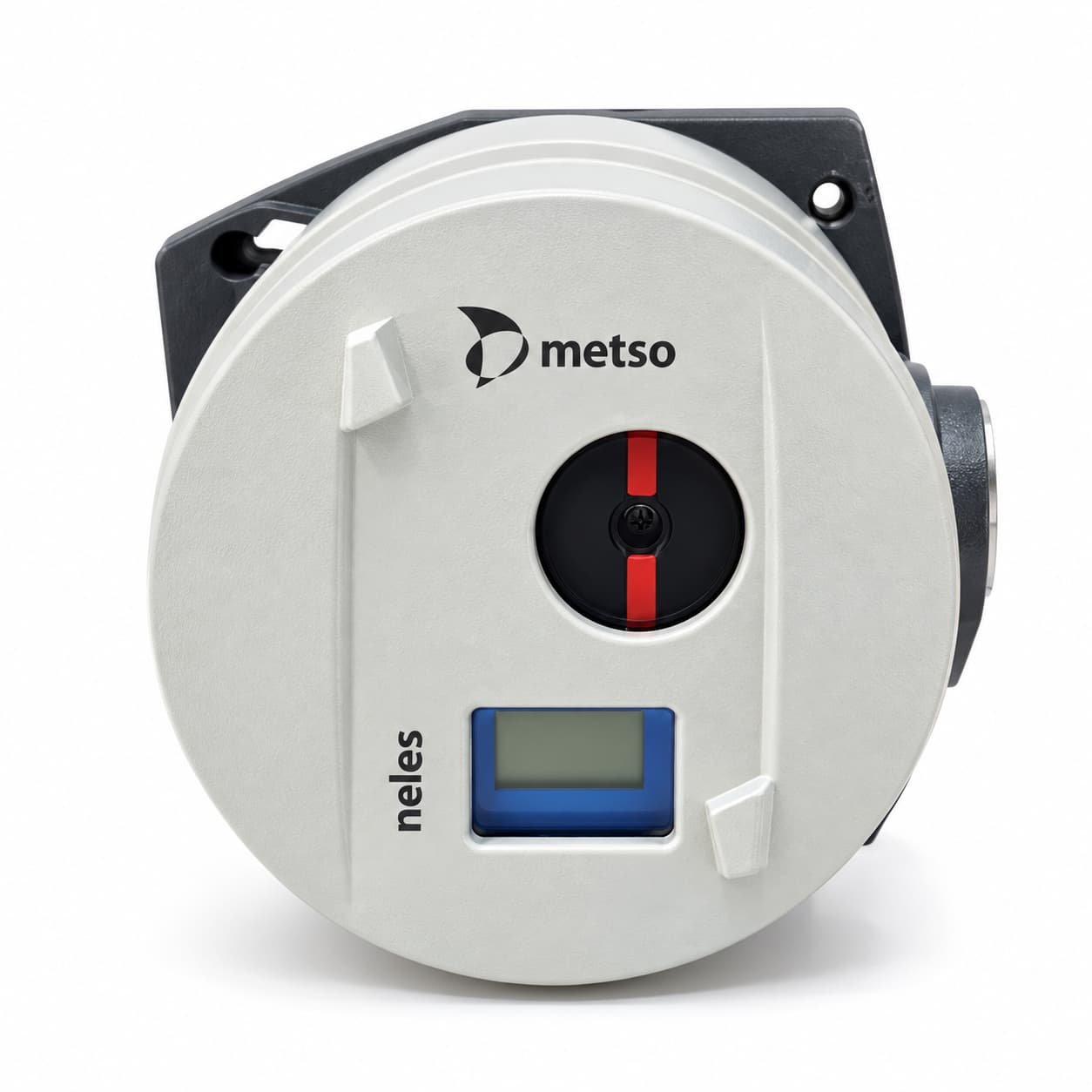

The ND9203 FOUNDATION Fieldbus Valve Positioner from VALMET / Neles is an intelligent electro-pneumatic valve controller designed for accurate valve positioning, digital process communication and advanced equipment diagnostics. It belongs to the Neles ND9000 intelligent valve controller family and combines electronic closed-loop positioning with FOUNDATION Fieldbus communication and a flameproof enclosure design.
Wuhan Yuli Automation Technology Co., Ltd. offers five ordering configurations in this product group: ND9203FE1, ND9203FE2, ND9203FE4, ND9203FE5 and ND9203FE8. These models are intended for compatible industrial pneumatic control valve applications where digital fieldbus integration and the appropriate hazardous-area approval are required.
The ND9203F features medium-capacity pneumatic control and intelligent valve monitoring capabilities. Consequently, it can be considered for industrial facilities seeking dependable valve automation, process visibility and maintenance support.
Available ND9203 FOUNDATION Fieldbus Valve Positioner Models
This variable product includes five ND9203F configurations. Customers can select the required model number when requesting pricing and availability.
| Model Number | Communication | Product Family |
|---|---|---|
| ND9203FE1 | FOUNDATION Fieldbus | ND9203F Ex d |
| ND9203FE2 | FOUNDATION Fieldbus | ND9203F Ex d |
| ND9203FE4 | FOUNDATION Fieldbus | ND9203F Ex d |
| ND9203FE5 | FOUNDATION Fieldbus | ND9203F Ex d |
| ND9203FE8 | FOUNDATION Fieldbus | ND9203F Ex d |
Ordering Notice: E1, E2, E4, E5 and E8 represent different ordering configurations. Exact approval markings, temperature classifications and installation requirements must be confirmed against the complete Valmet ordering documentation and original equipment nameplate.
Key Features of the ND9203 FOUNDATION Fieldbus Valve Positioner
FOUNDATION Fieldbus Digital Communication
The ND9203F uses FOUNDATION Fieldbus communication to exchange positioning commands, measured position information and supported diagnostic data with compatible distributed control systems.
Unlike conventional analog-only positioners, a fieldbus controller can provide additional digital information to supported engineering and asset management systems. Therefore, operators can monitor device status and review relevant operating parameters through the automation network.
Before installation, customers should confirm host compatibility, device revision and the required Device Description files.
Ex d Flameproof Enclosure
The ND9203 belongs to the ND9200 flameproof enclosure family. Appropriately certified configurations are designed for specified hazardous-area applications requiring flameproof protection.
However, approval requirements vary by installation. The selected device must match the relevant hazardous-area classification, certification markings, temperature requirements and applicable regulations.
Medium-Capacity Pneumatic Control
The ND9203 is the medium-capacity pneumatic configuration of the ND9000 family. Its selection category covers actuator stroke volumes of approximately 1–3 dm³.
Nevertheless, actual suitability depends on actuator design, pneumatic requirements, available instrument air and required valve response performance. Manufacturer selection guidance should be used for final verification.
Intelligent Closed-Loop Valve Positioning
The ND9203F continuously compares the requested valve position with the measured actuator position. When a positioning difference occurs, the electronic controller adjusts pneumatic output to move the connected actuator toward the required position.
Continuous position feedback supports repeatable valve movement and stable process control. In addition, the intelligent control platform provides configuration capabilities for compatible valve assemblies.
Advanced Device and Valve Diagnostics
The ND9000 family includes self-diagnostics, online diagnostics, performance monitoring and communication diagnostics.
These capabilities can help maintenance personnel identify changes in valve operation, review device condition and plan inspections. Furthermore, supported diagnostic data may be integrated into compatible asset management systems.
Specific functions depend on the device revision, installed configuration and host software.
Non-Contact Position Measurement
The ND9000 platform uses non-contact position measurement technology to monitor actuator movement. This provides electronic position feedback for closed-loop valve control.
As a result, the controller can continuously compare actual valve movement with the requested operating position.
Local and Remote Configuration
The ND9000 family supports local configuration and calibration through its user interface. Remote configuration is also available through compatible fieldbus engineering tools.
Correct commissioning, calibration and communication setup are essential for reliable operation.
Rotary and Linear Valve Compatibility
The ND9000 platform supports compatible rotary and linear valve applications. It can also be used with suitable single-acting and double-acting pneumatic actuator arrangements.
Appropriate mounting brackets, couplings and pneumatic connections must be selected for the specific valve assembly.
ND9203 FOUNDATION Fieldbus Valve Positioner Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | VALMET / Neles |
| Product Family | ND9000 Intelligent Valve Controller |
| Model Series | ND9203F |
| Product Type | Intelligent Electro-Pneumatic Valve Positioner |
| Communication | FOUNDATION Fieldbus |
| Enclosure Family | ND9200 Ex d Flameproof |
| Enclosure Protection | IP66 / NEMA 4X Family Specification |
| Pneumatic Capacity | Medium Capacity |
| Actuator Stroke Volume Category | Approximately 1–3 dm³ |
| Control Method | Electronic Closed-Loop Positioning |
| Position Feedback | Non-Contact Measurement |
| Valve Compatibility | Compatible Rotary and Linear Valves |
| Actuator Compatibility | Suitable Single-Acting and Double-Acting Actuators |
| Diagnostics | Self, Online, Performance and Communication Diagnostics |
| Configuration | Local Interface and Compatible Fieldbus Tools |
| Certification | Depends on Exact Ordering Configuration |
| Available Models | ND9203FE1, ND9203FE2, ND9203FE4, ND9203FE5, ND9203FE8 |
Technical Note: The specifications above describe the ND9203F family. Exact electrical ratings, approval markings, environmental limits and installation requirements must be verified against current manufacturer documentation.
FOUNDATION Fieldbus Function Blocks and Integration
The ND9000F platform provides standardized FOUNDATION Fieldbus function blocks for compatible process control applications.
These include resource management, transducer configuration, analog output, digital output, analog input, digital input, PID control, input selection and output splitting functions.
For example, an Analog Output block can support standard valve positioning applications. Meanwhile, Analog Input functionality can communicate measured valve position information to the fieldbus network.
Additional function blocks provide options for digital control, distributed control strategies and monitoring.
Supported capabilities and implementation details should be checked against the installed device revision and host system documentation.
ND9203 FOUNDATION Fieldbus Model Selection Guide
ND9203FE1 Intelligent Valve Positioner
The ND9203FE1 belongs to the ND9203F family and supports FOUNDATION Fieldbus communication. Customers should confirm the complete ordering specification, certification requirements and original equipment details before purchasing.
ND9203FE2 Intelligent Valve Positioner
The ND9203FE2 is another configuration within the same medium-capacity valve controller family. For replacement applications, compare the original device nameplate and approval requirements.
ND9203FE4 Intelligent Valve Positioner
The ND9203FE4 is intended for compatible industrial valve automation applications using FOUNDATION Fieldbus communication. Exact ordering and certification details should be verified before installation.
ND9203FE5 Intelligent Valve Positioner
The ND9203FE5 is a separate ND9203F ordering configuration. Customers should check the required hazardous-area approval, actuator compatibility and existing equipment specifications.
ND9203FE8 Intelligent Valve Positioner
The ND9203FE8 belongs to the ND9203F product family. The correct version should be selected using the complete manufacturer ordering code and original equipment information.
How Does the ND9203 FOUNDATION Fieldbus Valve Positioner Work?
The ND9203F receives digital positioning commands through a compatible FOUNDATION Fieldbus network. Its electronic control system compares the requested valve position with the actual actuator position.
When the two positions differ, the controller adjusts pneumatic output to move the actuator toward the required position.
During operation, the position measurement system continuously monitors actuator movement. Consequently, the controller can make additional adjustments as operating conditions change.
Furthermore, supported diagnostic and status information can be communicated to compatible host systems through the fieldbus network.
Industrial Applications of ND9203 FOUNDATION Fieldbus Positioners
Oil and Gas Processing
Appropriately certified ND9203F configurations can be considered for compatible pneumatic control valves in oil and gas processing facilities. Digital communication and diagnostics can support equipment monitoring and maintenance planning.
Petrochemical Plants
Petrochemical facilities use automated control valves to regulate process flow, pressure and temperature. The ND9203F can support compatible fieldbus-based valve automation systems.
Chemical Manufacturing
Chemical processing plants require dependable valve positioning for a wide range of industrial operations. Therefore, intelligent fieldbus controllers may support both process control and maintenance activities.
Pulp and Paper Production
Pulp and paper facilities use pneumatic valves in production, chemical recovery and utility systems. The medium-capacity ND9203 configuration may suit appropriately sized actuator applications.
Power Generation
Power generation facilities use intelligent valve controllers in process and auxiliary systems. FOUNDATION Fieldbus integration can provide digital positioning and supported diagnostic information.
General Industrial Automation
The ND9203F can also be considered for other facilities using compatible pneumatic actuators and FOUNDATION Fieldbus control networks.
ND9202 vs ND9203 vs ND9206 Valve Positioners
The ND9200 family provides different pneumatic capacity configurations to accommodate different actuator stroke volume requirements.
| Model Family | Capacity | Actuator Stroke Volume Category |
|---|---|---|
| ND9202 | Low | Below 1 dm³ |
| ND9203 | Medium | Approximately 1–3 dm³ |
| ND9206 | High | Above 3 dm³ |
These models are not automatically interchangeable. Actuator characteristics, pneumatic requirements and manufacturer recommendations should determine the final selection.
ND9203 FOUNDATION Fieldbus vs HART and PROFIBUS PA
The ND9000 intelligent valve controller platform supports multiple industrial communication technologies.
| Model Family | Communication Protocol |
|---|---|
| ND9203F | FOUNDATION Fieldbus |
| ND9203H | 4–20 mA HART |
| ND9203P | PROFIBUS PA |
These protocols use different communication interfaces and should not be considered directly interchangeable. Therefore, customers should verify the installed DCS interface before selecting a replacement controller.
How to Select the Correct ND9203 FOUNDATION Fieldbus Valve Positioner
- Model Number: Confirm the complete ND9203 ordering code.
- Communication: Verify FOUNDATION Fieldbus compatibility.
- Host Integration: Check Device Description files and device revisions.
- Certification: Confirm the required hazardous-area approval.
- Actuator Capacity: Verify actuator stroke volume and pneumatic requirements.
- Valve Type: Identify the rotary or linear valve arrangement.
- Mounting: Check brackets, couplings and mechanical connections.
- Replacement: Compare the original equipment nameplate.
- Project Requirements: Confirm quantity and delivery destination.
Providing complete equipment details can help reduce model selection errors and improve quotation accuracy.
Frequently Asked Questions About ND9203 FOUNDATION Fieldbus
What is the ND9203 FOUNDATION Fieldbus Valve Positioner?
It is an intelligent electro-pneumatic valve controller from VALMET / Neles that combines digital FOUNDATION Fieldbus communication, closed-loop positioning and advanced diagnostic functions.
Which ND9203 FOUNDATION Fieldbus models are available?
This listing includes ND9203FE1, ND9203FE2, ND9203FE4, ND9203FE5 and ND9203FE8.
What is the difference between ND9203FE1 and ND9203FE2?
They are different ordering configurations within the ND9203F family. Exact certification and configuration differences must be confirmed using manufacturer documentation.
Does ND9203F support intelligent diagnostics?
Yes. The ND9000 platform provides self-diagnostics, online diagnostics, performance diagnostics and communication diagnostics.
Can ND9203F replace ND9203H?
Not directly. ND9203F uses FOUNDATION Fieldbus, whereas ND9203H uses HART communication. The control system must support the selected protocol.
What does Ex d mean?
Ex d refers to a flameproof enclosure protection concept used in appropriately certified equipment for specified hazardous-area applications.
Can ND9203F be used with rotary and linear valves?
The ND9000 family supports compatible rotary and linear valve applications with suitable mounting accessories.
Is ND9203 suitable for medium-capacity pneumatic actuators?
Yes. ND9203 belongs to the medium-capacity selection category, although final compatibility depends on the actuator and application requirements.
How can I request ND9203F pricing?
Contact Wuhan Yuli Automation with the complete model number, quantity and delivery destination.
Why Choose Wuhan Yuli Automation?
Wuhan Yuli Automation Technology Co., Ltd. is an industrial automation supplier established in 2017.
We supply brand-new, original industrial automation products with a minimum one-year warranty under agreed sales terms. Our product range includes VALMET / Neles valve controllers, ABB automation modules, pneumatic actuators, industrial communication equipment and industrial spare parts.
Our team supports international procurement inquiries, product identification and delivery coordination for industrial maintenance and equipment replacement projects.
Explore additional products at Wuhan Yuli Automation.
Official VALMET Technical Information
For current product information and technical documentation, consult the following manufacturer resources:
- Valmet Neles ND9000 Intelligent Valve Controller
- Valmet ND9000F FOUNDATION Fieldbus User’s Guide
- Valmet Valve Software and Device Integration Files
Request a Quote – ND9203 FOUNDATION Fieldbus Valve Positioner
Looking for a VALMET / Neles ND9203 FOUNDATION Fieldbus Valve Positioner?
Wuhan Yuli Automation can assist with inquiries for ND9203FE1, ND9203FE2, ND9203FE4, ND9203FE5 and ND9203FE8.
