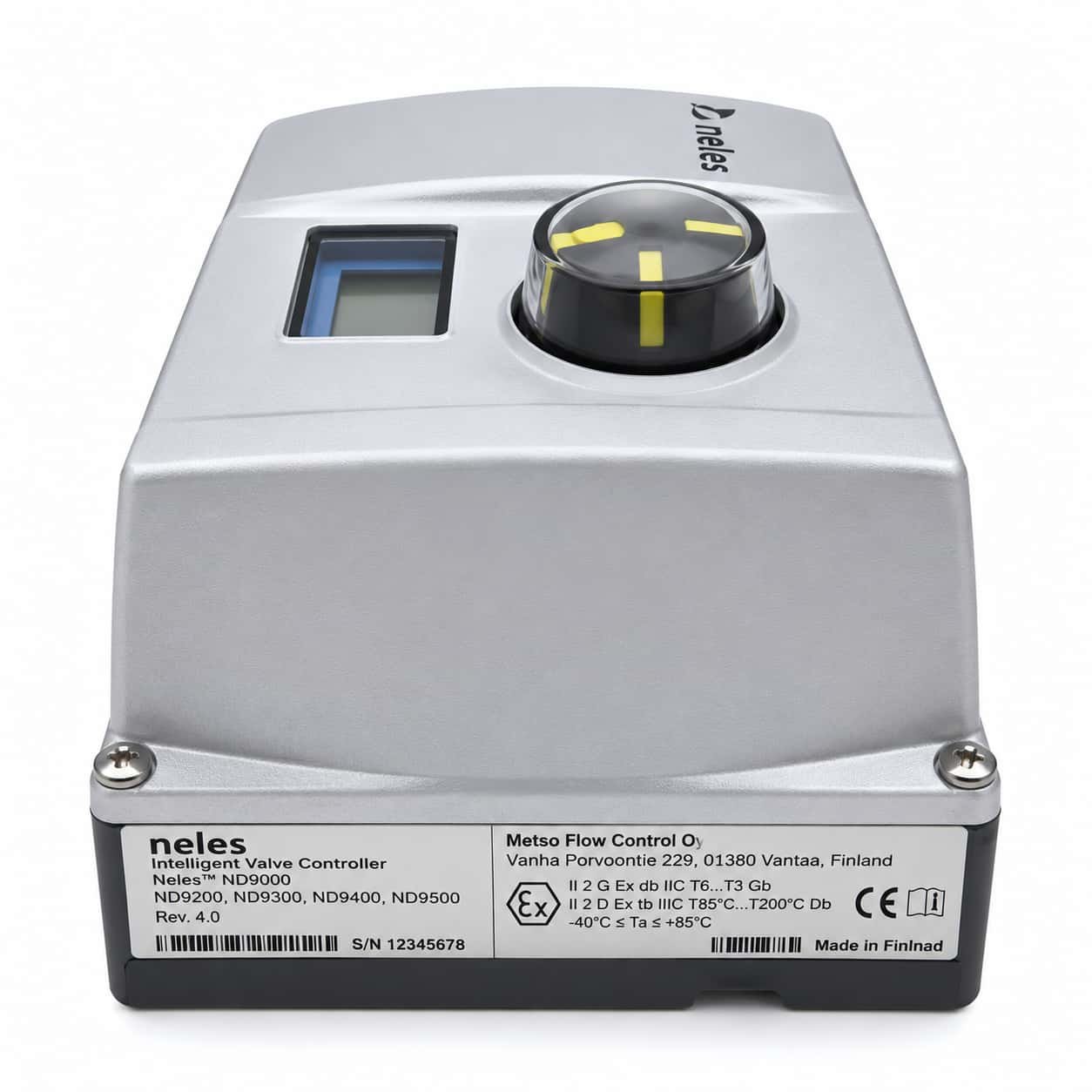

ND9202 FOUNDATION Fieldbus Valve Positioner – VALMET / Neles Ex d Flameproof Series
The ND9202 FOUNDATION Fieldbus Valve Positioner from VALMET / Neles is an intelligent electro-pneumatic valve controller designed for precise valve positioning, digital communication and advanced diagnostics. As part of the ND9000 intelligent valve controller family, the ND9202F combines electronic closed-loop control with a flameproof enclosure configuration for appropriately certified hazardous-area applications.
Wuhan Yuli Automation Technology Co., Ltd. supplies the ND9202 FOUNDATION Fieldbus Valve Positioner in five ordering configurations: ND9202FE1, ND9202FE2, ND9202FE4, ND9202FE5 and ND9202FE8. These models are designed for compatible pneumatic control valve assemblies in industrial process automation systems.
The ND9202F series provides digital FOUNDATION Fieldbus communication, non-contact position measurement and intelligent diagnostic functions. These features support valve control, equipment monitoring and maintenance planning in demanding industrial environments.
Available ND9202 FOUNDATION Fieldbus Valve Positioner Models
The following five models are included in this variable product listing. Customers can select the required configuration according to their existing equipment, communication system and hazardous-area approval requirements.
| Model Number | Communication | Product Type |
|---|---|---|
| ND9202FE1 | FOUNDATION Fieldbus | Ex d Flameproof Valve Positioner |
| ND9202FE2 | FOUNDATION Fieldbus | Ex d Flameproof Valve Positioner |
| ND9202FE4 | FOUNDATION Fieldbus | Ex d Flameproof Valve Positioner |
| ND9202FE5 | FOUNDATION Fieldbus | Ex d Flameproof Valve Positioner |
| ND9202FE8 | FOUNDATION Fieldbus | Ex d Flameproof Valve Positioner |
Important: E1, E2, E4, E5 and E8 identify different ordering or approval configurations. Exact hazardous-area certifications, temperature classes and installation requirements must be verified using the manufacturer’s documentation and original product nameplate.
Key Features of the ND9202 FOUNDATION Fieldbus Valve Positioner
1. FOUNDATION Fieldbus Digital Communication
The ND9202F uses FOUNDATION Fieldbus communication to exchange control commands and device information with compatible distributed control systems.
Digital fieldbus communication enables access to supported position information, device status and diagnostic data through the automation network. This can simplify device monitoring and support maintenance planning when the controller is integrated with compatible host equipment.
Before installation, users should confirm the required device description files, communication compatibility and fieldbus segment requirements.
2. Ex d Flameproof Enclosure
The ND9202 belongs to the ND9200 flameproof enclosure family. Appropriately certified configurations are intended for specified hazardous-area applications where flameproof protection is required.
The enclosure design helps provide protection in accordance with the applicable certification requirements. However, certification coverage differs between ordering configurations and must be checked for the installation location.
Customers should verify the required hazardous-area classification, gas group, temperature class, cable entry and environmental limits before ordering.
3. Intelligent Closed-Loop Valve Positioning
The ND9202 intelligent valve controller continuously compares the requested valve position with the measured actuator position.
When a positioning difference is detected, the electronic control system regulates pneumatic output to move the actuator toward the requested position.
This closed-loop control principle supports accurate positioning and repeatable valve operation in compatible industrial process applications.
4. Low-Capacity Pneumatic Configuration
The ND9202 is the low-capacity pneumatic configuration within the ND9000 valve controller family.
It is associated with actuator stroke volumes below 1 dm³. Actual suitability depends on actuator characteristics, required response performance, instrument air conditions and manufacturer selection guidance.
For applications involving larger pneumatic actuators, customers should evaluate the appropriate medium-capacity or high-capacity ND9000 model.
5. Advanced Valve Diagnostics
The ND9000 platform incorporates intelligent diagnostic capabilities designed to support valve condition monitoring and maintenance planning.
Supported diagnostic functions can provide information about controller operation, device status and valve performance. This information may help maintenance personnel identify changes in operating conditions and plan appropriate service activities.
The availability of specific diagnostic functions depends on device configuration, software revision and compatible engineering tools.
6. Non-Contact Position Measurement
The ND9000 family uses non-contact position measurement technology to monitor actuator movement.
This electronic feedback arrangement supports continuous position monitoring and closed-loop valve control without relying on conventional contact-based position measurement mechanisms.
7. FOUNDATION Fieldbus Function Blocks
The ND9000F platform supports FOUNDATION Fieldbus function blocks for compatible process automation applications.
These can include resource, transducer, analog output, analog input and other supported control or monitoring functions.
Actual block availability and configuration options should be verified against the device revision and the manufacturer’s technical documentation.
8. Local and Remote Configuration
The ND9000 intelligent valve controller platform supports local configuration and calibration through its local user interface.
Compatible FOUNDATION Fieldbus engineering and asset management systems can also provide access to supported device parameters and diagnostic information.
Correct commissioning, calibration and network configuration are important for reliable operation.
9. Rotary and Linear Valve Applications
The ND9000 family supports compatible rotary and linear control valve applications.
With suitable mounting accessories, the ND9202 can be considered for appropriate pneumatic actuator arrangements.
The complete valve assembly, mounting interface and actuator requirements must be checked before installation.
ND9202 FOUNDATION Fieldbus Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | VALMET / Neles |
| Series | ND9000 / ND9200 |
| Model Family | ND9202F |
| Product Type | Intelligent Electro-Pneumatic Valve Positioner |
| Communication | FOUNDATION Fieldbus |
| Enclosure Family | Ex d Flameproof |
| Pneumatic Capacity | Low Capacity |
| Actuator Stroke Volume Category | Below 1 dm³ |
| Position Measurement | Non-Contact Position Feedback |
| Control Method | Electronic Closed-Loop Positioning |
| Valve Compatibility | Compatible Rotary and Linear Valves |
| Diagnostics | Intelligent Device and Valve Diagnostics |
| Configuration | Local Interface and Compatible Fieldbus Tools |
| Hazardous-Area Approval | Depends on Exact Ordering Configuration |
| Available Models | ND9202FE1, ND9202FE2, ND9202FE4, ND9202FE5, ND9202FE8 |
Technical Notice: The specifications above describe the ND9202F product family. Individual certifications, electrical ratings, environmental limits and installation requirements must be confirmed using current manufacturer documentation.
ND9202FE1, ND9202FE2, ND9202FE4, ND9202FE5 and ND9202FE8 Model Guide
ND9202FE1 FOUNDATION Fieldbus Positioner
The ND9202FE1 is an ordering configuration within the ND9202F intelligent valve controller family. It combines FOUNDATION Fieldbus communication with the ND9202 low-capacity pneumatic platform.
Customers should verify the complete model number and certification requirements before selecting this configuration for an existing installation.
ND9202FE2 FOUNDATION Fieldbus Positioner
The ND9202FE2 is another ordering configuration of the ND9202 FOUNDATION Fieldbus valve controller.
For replacement projects, the original equipment nameplate should be checked to confirm the required approval, electrical connection arrangement and device compatibility.
ND9202FE4 FOUNDATION Fieldbus Positioner
The ND9202FE4 belongs to the ND9202F family and is intended for compatible pneumatic valve automation applications.
The exact approval designation and installation requirements should be verified before purchase.
ND9202FE5 FOUNDATION Fieldbus Positioner
The ND9202FE5 is a separate ordering configuration within the ND9202F product range.
Customers should confirm the required certification and complete ordering information to ensure that the selected device meets the project requirements.
ND9202FE8 FOUNDATION Fieldbus Positioner
The ND9202FE8 is an additional ND9202 FOUNDATION Fieldbus ordering configuration.
Before ordering, customers should verify the original controller model, hazardous-area requirements and compatibility with the existing control system.
How Does the ND9202 FOUNDATION Fieldbus Valve Positioner Work?
The ND9202F receives digital positioning commands through a compatible FOUNDATION Fieldbus network.
The electronic controller compares the requested valve position with the actual actuator position measured by its feedback system.
When the requested and actual positions differ, the controller adjusts pneumatic output to move the actuator toward the desired position.
Continuous feedback allows the controller to make further positioning adjustments during operation.
Supported device status, position information and diagnostic data can be communicated through the fieldbus network to compatible host systems.
Industrial Applications of ND9202 FOUNDATION Fieldbus Positioners
Oil and Gas Processing
Appropriately certified ND9202F configurations can be considered for compatible pneumatic control valves in oil and gas processing facilities.
Digital fieldbus communication and intelligent diagnostics can support process monitoring and maintenance activities.
Petrochemical Plants
Petrochemical facilities use automated valves to regulate process flow, pressure and temperature.
Suitable ND9202F configurations provide electronic valve positioning and supported diagnostic capabilities for compatible automation systems.
Chemical Processing
Chemical manufacturing plants require accurate valve control and dependable process equipment.
The ND9202F can support compatible pneumatic valve assemblies integrated into FOUNDATION Fieldbus control systems.
Pulp and Paper Industry
Pulp and paper plants use pneumatic control valves in production, chemical recovery and utility systems.
The ND9202 FOUNDATION Fieldbus valve controller can be considered for suitable low-capacity actuator applications.
Power Generation
Power generation facilities use intelligent valve controllers in process and auxiliary systems.
Compatible FOUNDATION Fieldbus installations provide digital communication and access to supported valve diagnostic information.
General Industrial Automation
Other potential applications include industrial facilities using digital fieldbus networks, distributed control systems and compatible pneumatic valve assemblies.
ND9202 vs ND9203 vs ND9206 Valve Positioners
The ND9200 series offers different pneumatic capacity configurations to suit different actuator stroke volume requirements.
| Model Family | Pneumatic Capacity | Actuator Stroke Volume |
|---|---|---|
| ND9202 | Low Capacity | Below 1 dm³ |
| ND9203 | Medium Capacity | 1–3 dm³ |
| ND9206 | High Capacity | Above 3 dm³ |
These models should not be treated as directly interchangeable. Selection depends on the actuator characteristics and manufacturer recommendations.
ND9202 FOUNDATION Fieldbus vs HART and PROFIBUS PA
The VALMET / Neles ND9000 platform is available with different industrial communication technologies.
| Model Family | Communication |
|---|---|
| ND9202F | FOUNDATION Fieldbus |
| ND9202H | 4–20 mA HART |
| ND9202P | PROFIBUS PA |
These communication technologies require different control system interfaces and are not directly interchangeable.
Customers must confirm the host system, field wiring and network architecture before selecting a replacement controller.
How to Select the Correct ND9202 FOUNDATION Fieldbus Valve Positioner
- Model Number: Confirm the complete ND9202 ordering code.
- Communication: Verify FOUNDATION Fieldbus compatibility.
- Host System: Check device description and software revision compatibility.
- Hazardous-Area Approval: Confirm the required certification.
- Temperature Class: Verify the required environmental limits.
- Actuator Capacity: Check actuator stroke volume.
- Valve Type: Identify the rotary or linear valve arrangement.
- Mounting Accessories: Verify brackets and coupling requirements.
- Pneumatic Connections: Confirm air supply and connection requirements.
- Electrical Connections: Verify cable entry and wiring requirements.
- Replacement Compatibility: Compare the original equipment nameplate.
For replacement projects, customers are encouraged to provide the complete model number, original device nameplate photograph, required quantity and delivery destination.
Frequently Asked Questions About ND9202 FOUNDATION Fieldbus
What is the ND9202 FOUNDATION Fieldbus Valve Positioner?
It is an intelligent electro-pneumatic valve controller from VALMET / Neles featuring FOUNDATION Fieldbus communication, electronic positioning, intelligent diagnostics and an Ex d flameproof enclosure family.
Which ND9202 FOUNDATION Fieldbus models are included?
This listing includes ND9202FE1, ND9202FE2, ND9202FE4, ND9202FE5 and ND9202FE8.
What is the difference between ND9202FE1 and ND9202FE2?
They are different ordering configurations within the ND9202F product family. Exact certification and installation differences must be confirmed using manufacturer documentation.
Does ND9202F support FOUNDATION Fieldbus communication?
Yes. ND9202F configurations belong to the FOUNDATION Fieldbus communication family of the ND9000 platform.
What does Ex d mean?
Ex d refers to a flameproof enclosure protection concept used in appropriately certified equipment for hazardous-area applications.
Can ND9202F replace an ND9202 HART controller?
Not directly. FOUNDATION Fieldbus and HART use different communication technologies and require compatible control systems.
Does ND9202F support intelligent diagnostics?
Yes. The ND9000 platform includes intelligent diagnostic capabilities designed to support valve monitoring and maintenance planning.
Can ND9202F be used with rotary valves?
The ND9000 family supports compatible rotary valve applications with suitable mounting accessories.
Can ND9202F be used with linear valves?
Compatible linear valve applications are supported when the correct actuator and mounting arrangement is selected.
How can I request ND9202F pricing?
Contact Wuhan Yuli Automation with the complete model number, required quantity and delivery destination.
Why Choose Wuhan Yuli Automation?
Wuhan Yuli Automation Technology Co., Ltd. is an industrial automation supplier established in 2017.
We supply brand-new, original industrial automation products with a minimum one-year warranty under agreed sales terms.
Our product range includes VALMET / Neles intelligent valve controllers, ABB automation modules, pneumatic actuators, industrial communication equipment and other industrial spare parts.
We support international procurement inquiries, product identification and delivery coordination for industrial maintenance and equipment replacement projects.
- Brand-new, original industrial automation products.
- Minimum one-year warranty under agreed terms.
- Support for multiple ND9202F ordering configurations.
- Assistance with complete model identification.
- International sourcing and delivery coordination.
- Quotation support for industrial automation projects.
Explore more products at Wuhan Yuli Automation.
Official VALMET Technical Information
For additional manufacturer information about ND9000 intelligent valve controllers, visit the official Valmet Flow Control website.
Customers should use the latest manufacturer documentation to confirm exact ordering configurations, certification markings and installation requirements.
