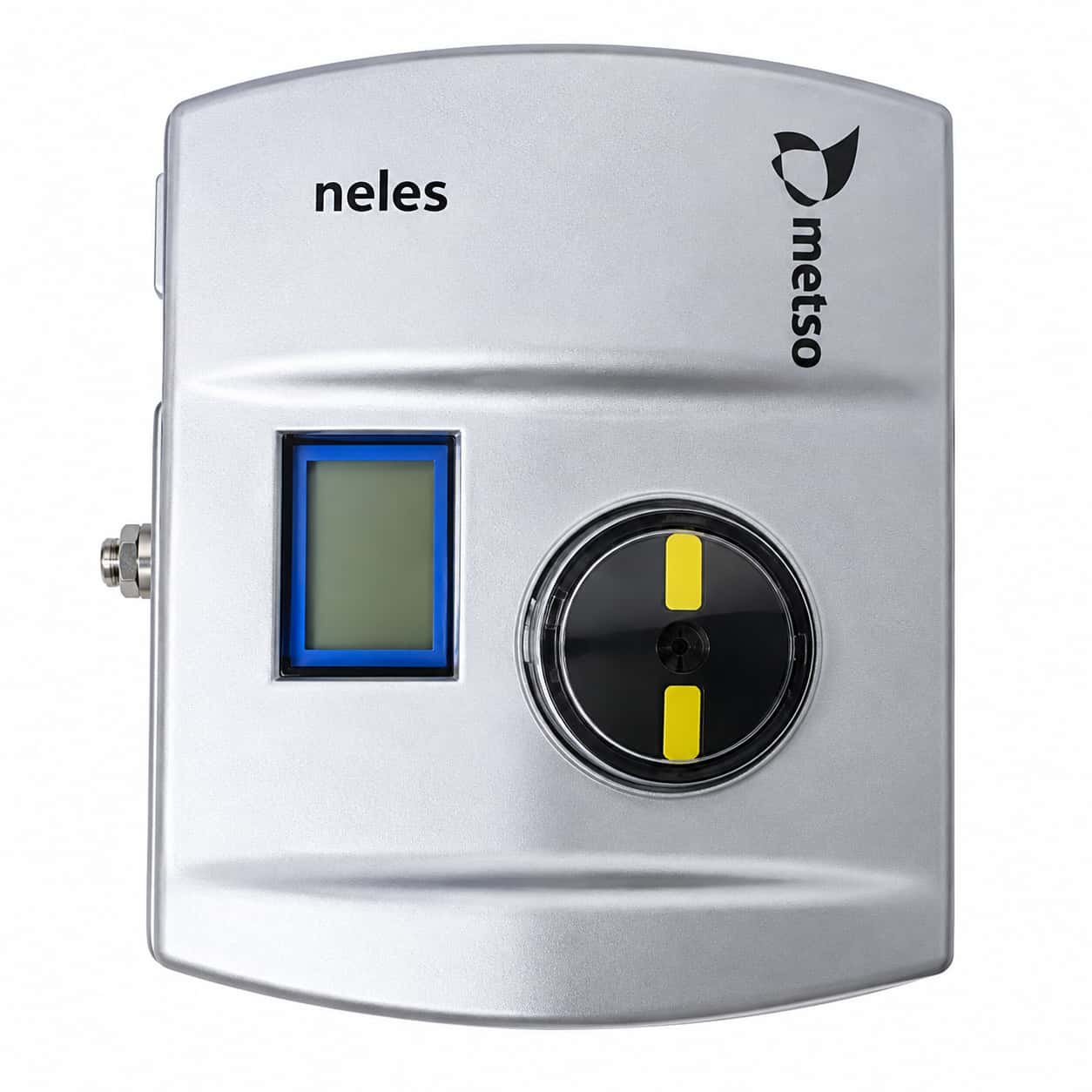

ND9106HX8 HART Intelligent Valve Positioner – VALMET / Neles
The ND9106HX8 is an intelligent electro-pneumatic valve positioner from the VALMET / Neles ND9000 series. Designed for demanding industrial process control applications, the ND9106HX8 combines accurate valve positioning, 4–20 mA HART communication, high-capacity pneumatic control and intelligent valve diagnostics.
This product listing covers the standard ND9106HX8 designation and three additional ordering configurations: ND9106HX8-CE07, ND9106HX8-A3B-DS01 and ND9106HX8/109-CE07. Customers can select the required model from the available product variations and request a quotation for the exact configuration.
The ND9106HX8 family is suitable for consideration in pneumatic valve automation systems where accurate actuator positioning, dependable process control and access to device diagnostics are important. Its ND9106 high-capacity spool valve configuration is intended for actuator stroke volumes greater than 3 dm³, subject to the complete actuator and application requirements.
Wuhan Yuli Automation Technology Co., Ltd. supplies VALMET / Neles intelligent valve controllers for industrial maintenance, equipment replacement and international procurement projects. Contact our team for ND9106HX8 pricing, availability and delivery information.
Available ND9106HX8 Models and Ordering Variants
The following four model numbers are included in this ND9106HX8 product listing:
| Model Number | Product Family | Communication |
|---|---|---|
| ND9106HX8 | ND9000 / ND9100 | HART |
| ND9106HX8-CE07 | ND9000 / ND9100 | HART |
| ND9106HX8-A3B-DS01 | ND9000 / ND9100 | HART |
| ND9106HX8/109-CE07 | ND9000 / ND9100 | HART |
Ordering Note: The additional designations CE07, A3B, DS01 and /109 identify ordering differences that require confirmation against manufacturer documentation. Their precise technical meanings, approvals and supplied accessories should not be assumed from the model names alone.
For replacement projects, the complete ordering code on the original product nameplate should be matched whenever possible.
Key Features of the VALMET ND9106HX8
Intelligent Electro-Pneumatic Positioning
The ND9106HX8 uses electronic position control and pneumatic output regulation to manage compatible control valve actuators. Its closed-loop control system compares the requested valve position with actual position feedback and adjusts pneumatic output to reduce positioning error.
This intelligent positioning method supports stable valve operation and repeatable control in suitable industrial process applications.
4–20 mA HART Communication
The ND9106HX8 belongs to the HART communication family of ND9000 intelligent valve controllers. It uses a conventional 4–20 mA control signal together with supported HART digital communication.
Through compatible engineering and maintenance tools, operators can access supported device information, configuration parameters and diagnostic data.
HART communication makes the ND9106HX8 relevant to existing process automation systems that use analog valve control signals while requiring additional digital device information.
High-Capacity Pneumatic Output
The ND9106HX8 uses the ND9106 high-capacity pneumatic configuration. According to the manufacturer ordering structure, the 06 spool valve category is associated with actuator stroke volumes greater than 3 dm³.
This capacity category distinguishes ND9106 models from the medium-capacity ND9103 family and the low-capacity ND9102 family.
Actual actuator suitability depends on the required valve travel, pneumatic supply, operating speed, mounting arrangement and other installation conditions.
Advanced Valve Diagnostics
The VALMET / Neles ND9000 platform includes intelligent diagnostic capabilities designed to support process control performance and maintenance planning.
Supported functions may include self-diagnostics, online diagnostics, performance monitoring and communication diagnostics, depending on the device version and engineering software.
These functions help maintenance personnel evaluate operating conditions, investigate abnormal valve behavior and identify potential maintenance requirements.
Local Configuration and Calibration
ND9000 intelligent valve controllers support local configuration and calibration functions. Compatible remote configuration tools may also be used for supported device revisions.
Correct calibration and setup are important for accurate positioning after installation, actuator replacement or maintenance.
Rotary and Linear Valve Compatibility
The ND9000 family is designed for compatible rotary and linear pneumatic control valve applications. Suitable mounting kits and actuator interfaces are required for each installation.
Depending on the actuator and pneumatic arrangement, ND9000 controllers can support compatible single-acting and double-acting applications.
Industrial Enclosure Protection
The standard ND9100 enclosure family provides IP66 / NEMA 4X protection for industrial environments.
For applications requiring hazardous-area approvals or additional environmental protection, verify the certification and operating limits of the exact ND9106HX8 ordering configuration before installation.
ND9106HX8 Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | VALMET / Neles |
| Model Family | ND9106HX8 |
| Product Series | ND9000 / ND9100 |
| Product Type | Intelligent Electro-Pneumatic Valve Positioner |
| Control Signal | 4–20 mA |
| Communication Protocol | HART |
| Pneumatic Configuration | High-Capacity Spool Valve |
| Actuator Stroke Volume Category | Greater Than 3 dm³ |
| Pneumatic Connections | G 1/4 for ND9100 Series |
| Standard Enclosure Family | IP66 / NEMA 4X |
| Positioning Method | Electronic Feedback and Pneumatic Regulation |
| Valve Compatibility | Suitable Rotary and Linear Control Valves |
| Actuator Compatibility | Suitable Pneumatic Actuators |
| Diagnostics | ND9000 Intelligent Diagnostic Functions |
| Configuration | Local and Supported Remote Configuration |
| Available Ordering Codes | ND9106HX8, ND9106HX8-CE07, ND9106HX8-A3B-DS01, ND9106HX8/109-CE07 |
| Special Options | Verify Against Complete Ordering Code |
| Certifications | Dependent on Exact Device Configuration |
Technical Notice: These specifications describe applicable ND9000 / ND9100 family characteristics. Exact electrical ratings, approvals, temperature limits and special configuration options must be confirmed against the selected model’s official documentation and nameplate.
How Does the ND9106HX8 Valve Positioner Work?
The ND9106HX8 receives a positioning command from a compatible process control system through its 4–20 mA interface.
Its electronic controller continuously compares the requested valve position with the actual position detected through its feedback mechanism. When a difference is detected, the controller regulates pneumatic output to move the connected actuator toward the required position.
The high-capacity pneumatic configuration supports suitable larger actuator applications, while intelligent control helps maintain stable positioning during process operation.
HART communication provides an additional digital interface for supported configuration, device information and diagnostic functions.
This combination of pneumatic control and electronic intelligence makes the ND9106HX8 relevant to industrial facilities using automated control valves and intelligent process instrumentation.
ND9106HX8 Industrial Applications
Oil and Gas Processing
The ND9106HX8 may be considered for compatible pneumatic control valve assemblies used in oil and gas processing facilities. Suitable applications can benefit from intelligent positioning, HART communication and diagnostic information.
Petrochemical Industry
Petrochemical facilities use automated control valves to regulate process flow, pressure and temperature. The ND9106HX8 can support appropriate pneumatic actuator installations where the high-capacity configuration is required.
Chemical Processing Plants
Chemical manufacturing operations require dependable control of process valves across production and utility systems. Intelligent valve controllers can assist with accurate positioning and maintenance monitoring.
Pulp and Paper Industry
Pulp and paper facilities use automated valves in production lines, chemical recovery and auxiliary systems. The ND9106HX8 may be suitable for compatible pneumatic control valve packages in these applications.
Power Generation
Power plants use pneumatic control valves in various process and auxiliary services. Compatible ND9106HX8 installations can provide intelligent valve positioning and access to supported diagnostic information.
General Industrial Process Control
Other potential applications include industrial plants using HART-compatible distributed control systems and pneumatic valve actuators requiring high-capacity positioning equipment.
How to Select the Correct ND9106HX8 Variant
Correct model selection is essential when replacing an existing valve controller or ordering a new device for a pneumatic actuator.
Before purchasing ND9106HX8 or one of its special ordering variants, confirm the following:
- Complete Model Number: Match every letter, number, hyphen and slash in the ordering code.
- Original Nameplate: Compare the replacement device with the installed controller.
- Communication: Confirm compatibility with the required 4–20 mA HART interface.
- Actuator Capacity: Verify the ND9106 high-capacity pneumatic category.
- Valve Type: Identify the rotary or linear valve arrangement.
- Mounting: Confirm brackets, couplings and other installation accessories.
- Air Supply: Check pneumatic supply conditions and connection requirements.
- Certifications: Confirm the approvals required for the installation.
- Special Ordering Options: Verify CE07, A3B, DS01 and /109 designations.
- Device Revision: Confirm compatibility with the existing control and maintenance systems.
For industrial replacement projects, customers are encouraged to provide a photograph of the original device nameplate and the actuator model number.
ND9106HX8 vs ND9106HX vs ND9103HX8
The ND9106HX8, ND9106HX and ND9103HX8 belong to the VALMET / Neles ND9000 intelligent valve controller family.
The ND9106 and ND9103 designations identify different pneumatic capacity categories.
| Model | Pneumatic Capacity | Communication Family |
|---|---|---|
| ND9106HX8 | High Capacity | HART |
| ND9106HX | High Capacity | HART |
| ND9103HX8 | Medium Capacity | HART |
Although ND9106HX8 and ND9106HX share the same base pneumatic capacity category, their complete ordering configurations differ.
Do not assume interchangeability between these models without verifying the required approvals, options, installation conditions and actuator compatibility.
Why Choose an ND9106HX8 Intelligent Valve Controller?
The ND9106HX8 combines high-capacity pneumatic positioning with intelligent electronic control and HART communication.
- Accurate positioning for compatible industrial control valves.
- High-capacity pneumatic configuration for suitable actuators.
- 4–20 mA HART communication.
- Advanced diagnostic capabilities.
- Support for compatible rotary and linear valves.
- Local configuration and supported remote tools.
- Industrial enclosure protection.
- Integration with compatible process automation systems.
These characteristics make the ND9106HX8 relevant to industrial maintenance, equipment replacement and new process automation projects.
ND9106HX8 Frequently Asked Questions
What is the VALMET / Neles ND9106HX8?
The ND9106HX8 is an intelligent electro-pneumatic valve positioner from the ND9000 series, featuring HART communication and a high-capacity pneumatic configuration.
Does ND9106HX8 support HART communication?
Yes. The ND9106H family uses a 4–20 mA control signal with HART digital communication.
What is ND9106HX8-CE07?
ND9106HX8-CE07 is an additional ordering designation associated with the ND9106HX8 family. The CE07 option must be confirmed using the relevant manufacturer documentation.
What is ND9106HX8-A3B-DS01?
ND9106HX8-A3B-DS01 is a special ordering configuration. Its exact options and technical requirements should be verified before purchase.
What is ND9106HX8/109-CE07?
ND9106HX8/109-CE07 is a distinct ordering designation. The /109 and CE07 elements require confirmation against the original product specification.
Can ND9106HX8 replace ND9106HX?
Replacement compatibility depends on the complete ordering codes, installed options, approvals and actuator requirements. They should not be treated as automatically interchangeable.
What is the difference between ND9106HX8 and ND9103HX8?
ND9106HX8 uses the ND9106 high-capacity pneumatic configuration, while ND9103HX8 belongs to the medium-capacity category.
Can ND9106HX8 be used with rotary control valves?
The ND9000 family supports compatible rotary pneumatic control valve applications with appropriate mounting accessories.
Can ND9106HX8 be used with linear control valves?
Compatible linear valve applications are also supported within the ND9000 family when the correct installation arrangement is selected.
Does ND9106HX8 provide valve diagnostics?
The ND9000 platform supports intelligent diagnostic functions designed to assist valve performance monitoring and maintenance planning.
How can I identify the correct ND9106HX8 replacement?
Check the complete model number on the original device nameplate, including all suffixes and option codes. Provide the actuator information and any required certifications when requesting a replacement.
Where can I request ND9106HX8 pricing?
Contact Wuhan Yuli Automation Technology Co., Ltd. with the complete ordering code, quantity and delivery destination for pricing and availability information.
