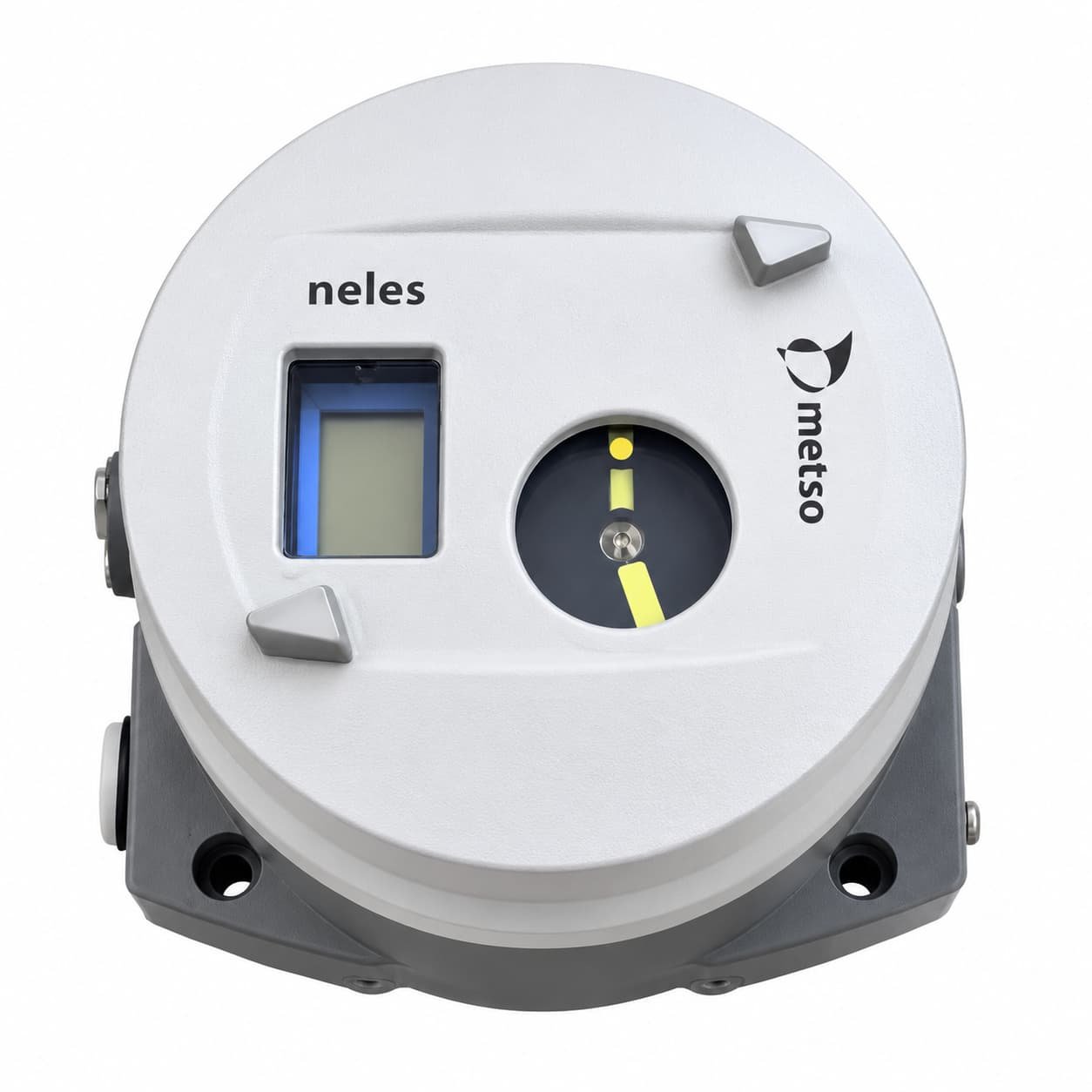

VALMET / Neles ND9202 HART Ex d Flameproof Valve Positioner
The VALMET / Neles ND9202 HART Ex d Flameproof Valve Positioner is an intelligent electro-pneumatic valve controller from the ND9000 series. It combines precise valve positioning, 4–20 mA HART communication, intelligent diagnostics and a flameproof enclosure design for appropriately certified industrial hazardous-area applications.
This product listing covers ten ND9202 HART configurations: ND9202HE1, ND9202HE1T, ND9202HE2, ND9202HE2T, ND9202HE4, ND9202HE4T, ND9202HE5, ND9202HE5T, ND9202HE8 and ND9202HE8T.
Designed for compatible pneumatic control valve assemblies, the ND9202 family provides electronic closed-loop positioning and diagnostic capabilities to support stable process control and maintenance planning.
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation equipment and replacement components to international customers. We assist with VALMET / Neles valve positioner identification, procurement inquiries and international delivery arrangements.
Available ND9202 HART Ex d Valve Positioner Models
Choose the required model from the available product variations.
| Model Number | Communication | Product Family |
|---|---|---|
| ND9202HE1 | HART | ND9202 Ex d |
| ND9202HE1T | HART | ND9202 Ex d |
| ND9202HE2 | HART | ND9202 Ex d |
| ND9202HE2T | HART | ND9202 Ex d |
| ND9202HE4 | HART | ND9202 Ex d |
| ND9202HE4T | HART | ND9202 Ex d |
| ND9202HE5 | HART | ND9202 Ex d |
| ND9202HE5T | HART | ND9202 Ex d |
| ND9202HE8 | HART | ND9202 Ex d |
| ND9202HE8T | HART | ND9202 Ex d |
Model Selection Notice: The E1, E2, E4, E5 and E8 designations identify different ordering configurations. The T suffix is associated with an optional position transmitter in applicable HART configurations. Exact approvals and permitted options must be confirmed against the manufacturer’s documentation and device nameplate.
Key Features of the VALMET ND9202 Intelligent Valve Controller
Ex d Flameproof Enclosure
The ND9202 is part of the flameproof enclosure family of the VALMET / Neles ND9000 intelligent valve controller platform.
Appropriately certified Ex d configurations are intended for use in specified hazardous-area installations. Certification requirements vary by model, region and installation conditions.
Customers must verify the selected controller’s approval marking, hazardous-area classification, temperature class and installation instructions before use.
4–20 mA HART Communication
The ND9202H family uses a 4–20 mA positioning signal with HART digital communication.
This allows integration with compatible industrial control systems while providing access to supported configuration and diagnostic functions through HART maintenance tools.
For replacement projects, the communication protocol must match the existing control system.
Accurate Closed-Loop Valve Positioning
The ND9202 intelligent valve controller compares the requested valve position with actual actuator position feedback.
Its electronic control system regulates pneumatic output to move the actuator toward the required position.
This closed-loop positioning method supports accurate and repeatable valve control in suitable process automation applications.
Low-Capacity Pneumatic Configuration
The ND9202 belongs to the low-capacity pneumatic configuration of the ND9000 family, associated with actuator stroke volumes below 1 dm³.
Actual compatibility depends on actuator design, operating conditions, available instrument air and the manufacturer’s selection guidance.
Applications involving larger actuator stroke volumes may require a different ND9000 pneumatic capacity configuration.
Intelligent Valve Diagnostics
The ND9000 platform incorporates diagnostic functions designed to support valve condition monitoring and maintenance planning.
Supported functions include device self-diagnostics, online diagnostics, performance diagnostics and communication diagnostics.
Diagnostic information can assist maintenance personnel in evaluating valve operation and planning appropriate maintenance activities.
Non-Contact Position Measurement
The ND9000 family uses non-contact position measurement technology to monitor actuator movement.
This electronic feedback system supports accurate position monitoring and closed-loop control.
Optional Position Transmitter
Applicable T-suffix HART configurations are associated with an optional position transmitter.
The additional feedback signal may be useful for compatible valve monitoring systems.
The exact output, electrical connections and certification compatibility must be verified for the ordered configuration.
Rotary and Linear Valve Compatibility
The ND9000 intelligent valve controller family supports compatible rotary and linear valve applications.
Suitable mounting accessories and pneumatic connections are required for each actuator arrangement.
Local Calibration and Configuration
The ND9000 platform supports local configuration and calibration through its local user interface.
Compatible HART engineering tools can also provide access to supported parameters and diagnostics.
Correct installation and calibration are important for reliable positioning performance.
ND9202 HART Ex d Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | VALMET / Neles |
| Series | ND9000 / ND9200 |
| Model Family | ND9202H |
| Product Type | Intelligent Electro-Pneumatic Valve Positioner |
| Communication | 4–20 mA HART |
| Enclosure Family | Ex d Flameproof |
| Enclosure Protection | IP66 / NEMA 4X Family |
| Pneumatic Capacity | Low Capacity |
| Actuator Stroke Volume Category | Below 1 dm³ |
| Position Feedback | Non-Contact Measurement |
| Control Method | Electronic Closed-Loop Positioning |
| Valve Applications | Compatible Rotary and Linear Valves |
| Actuator Applications | Compatible Pneumatic Actuators |
| Diagnostics | ND9000 Intelligent Diagnostic Functions |
| Optional Feedback | Position Transmitter on Applicable T Configurations |
| Hazardous-Area Approvals | Dependent on Exact Model Configuration |
| Temperature Rating | Dependent on Certification and Temperature Class |
| Available Models | ND9202HE1, HE1T, HE2, HE2T, HE4, HE4T, HE5, HE5T, HE8, HE8T |
Important: These specifications describe the product family. The complete model number and original manufacturer documentation must be used to confirm approval markings, electrical options, pneumatic ratings and environmental limits.
ND9202HE1, HE2, HE4, HE5 and HE8 Model Selection
ND9202HE1 and ND9202HE1T
The ND9202HE1 and ND9202HE1T are HART intelligent valve controller configurations within the ND9202 flameproof family.
The T-suffix version is associated with an optional position transmitter. Customers should confirm the complete ordering code before replacing an existing controller.
ND9202HE2 and ND9202HE2T
The ND9202HE2 and ND9202HE2T are separate ND9202 HART ordering configurations.
Approval requirements, electrical connections and position transmitter options must be checked against the original device specification.
ND9202HE4 and ND9202HE4T
The ND9202HE4 and ND9202HE4T belong to the ND9202 HART Ex d product family.
These models should be selected according to the required certification and complete manufacturer ordering information.
ND9202HE5 and ND9202HE5T
The ND9202HE5 and ND9202HE5T are HART intelligent valve controller configurations for compatible industrial pneumatic valve applications.
Customers should verify the required hazardous-area approvals and optional position transmitter arrangement.
ND9202HE8 and ND9202HE8T
The ND9202HE8 and ND9202HE8T are additional ordering configurations within the ND9202 HART flameproof family.
Exact approval markings, installation requirements and accessory compatibility must be confirmed before purchase.
How Does the ND9202 HART Valve Positioner Work?
The ND9202 receives a 4–20 mA positioning command from a compatible industrial control system.
The electronic controller compares the requested position with the actual position measured by its feedback system.
When a positioning difference occurs, the controller adjusts pneumatic output to move the actuator toward the requested position.
Continuous position feedback allows the controller to make further adjustments during valve operation.
HART communication provides access to supported configuration parameters, device status and diagnostic information.
Industrial Applications
Oil and Gas
Suitable ND9202 HART Ex d configurations can be considered for pneumatic control valve applications in oil and gas processing facilities where the required hazardous-area approvals are satisfied.
Petrochemical Processing
Petrochemical facilities use automated control valves to regulate process flow, pressure and temperature. Intelligent valve positioning can support stable operation and maintenance monitoring.
Chemical Manufacturing
Chemical processing plants require accurate valve positioning and dependable process equipment. The ND9202 family can support compatible pneumatic control valve assemblies.
Power Generation
Power plants use pneumatic control valves in process and auxiliary systems. Compatible ND9202 configurations provide electronic positioning and supported diagnostic functions.
Pulp and Paper
Pulp and paper plants use control valves in production, chemical recovery and utility applications. Suitable ND9202 configurations can be selected for compatible actuator arrangements.
Industrial Process Automation
Other applications include industrial facilities using 4–20 mA HART instrumentation and pneumatic control valve systems.
ND9202 vs ND9203 vs ND9206 Valve Positioners
The ND9200 series offers different pneumatic capacity configurations for different actuator stroke volume requirements.
| Model Family | Pneumatic Capacity | Stroke Volume Category |
|---|---|---|
| ND9202 | Low Capacity | Below 1 dm³ |
| ND9203 | Medium Capacity | 1–3 dm³ |
| ND9206 | High Capacity | Above 3 dm³ |
The correct controller must be selected according to the actuator characteristics and manufacturer recommendations.
ND9202 HART vs FOUNDATION Fieldbus and PROFIBUS PA
The ND9000 intelligent valve controller platform is available with different communication technologies.
| Model Family | Communication |
|---|---|
| ND9202H | 4–20 mA HART |
| ND9202F | FOUNDATION Fieldbus |
| ND9202P | PROFIBUS PA |
These communication technologies are not directly interchangeable. Customers should verify compatibility with the existing control system before selecting a replacement.
How to Choose the Correct ND9202 HART Ex d Model
- Exact Model: Match the complete ND9202 ordering code.
- Communication: Confirm 4–20 mA HART compatibility.
- Approval: Verify the required hazardous-area certification.
- Temperature Class: Confirm the required environmental and temperature ratings.
- Position Transmitter: Check whether the T option is required.
- Actuator Capacity: Confirm the actuator stroke volume.
- Valve Type: Identify the rotary or linear valve application.
- Mounting: Verify the required mounting accessories.
- Connections: Check pneumatic and electrical connection requirements.
- Replacement: Compare the original device nameplate.
For replacement orders, please provide the complete model number, original nameplate photograph, required quantity and delivery destination.
Frequently Asked Questions About ND9202 HART Ex d
What is the ND9202 HART Ex d Flameproof Valve Positioner?
It is an intelligent electro-pneumatic valve controller from VALMET / Neles featuring 4–20 mA HART communication, a flameproof enclosure family and intelligent valve diagnostics.
Which ND9202 HART models are available?
This listing covers ND9202HE1, ND9202HE1T, ND9202HE2, ND9202HE2T, ND9202HE4, ND9202HE4T, ND9202HE5, ND9202HE5T, ND9202HE8 and ND9202HE8T.
What is the difference between ND9202HE1 and ND9202HE1T?
The T suffix is associated with an optional position transmitter in applicable HART configurations. Exact output and certification requirements must be confirmed.
Are ND9202HE1 and ND9202HE2 interchangeable?
Not automatically. They have different ordering configurations and may require different certifications or installation arrangements.
What does Ex d mean?
Ex d is a flameproof enclosure protection concept used in appropriately certified equipment for hazardous-area applications.
Does ND9202 support HART communication?
Yes. ND9202H configurations use 4–20 mA HART communication.
Is ND9202 suitable for large pneumatic actuators?
ND9202 belongs to the low-capacity pneumatic family. Larger actuator applications may require a different ND9000 capacity configuration.
Does the ND9202 support valve diagnostics?
Yes. The ND9000 platform includes intelligent diagnostic functions designed to support valve monitoring and maintenance planning.
Can the ND9202 be used with rotary valves?
The ND9000 family supports compatible rotary valve applications with suitable mounting accessories.
Can the ND9202 be used with linear valves?
Compatible linear valve applications are supported when the correct mounting and actuator arrangement is selected.
How do I order the correct ND9202 model?
Provide the complete ordering code, original device nameplate and required quantity. Our team can assist with identifying the requested configuration.
Why Buy from Wuhan Yuli Automation?
Wuhan Yuli Automation Technology Co., Ltd. is an industrial automation supplier established in 2017.
We supply brand-new, original industrial automation products with a minimum one-year warranty, subject to the agreed sales terms.
Our product range includes VALMET / Neles valve positioners, ABB automation components, industrial communication modules, pneumatic actuators and other industrial spare parts.
We support international procurement inquiries, product identification and delivery coordination for industrial maintenance and replacement projects.
- Brand-new, original products.
- Minimum one-year warranty under agreed terms.
- Support for multiple ND9202 HART ordering configurations.
- Assistance with model identification.
- International sourcing and delivery coordination.
- Quotation support for industrial automation projects.
Explore more industrial automation products at Wuhan Yuli Automation.
Request a Quote – VALMET / Neles ND9202 HART Ex d
Looking for an ND9202 HART Ex d Flameproof Valve Positioner?
Select the required model from the available variations and contact Wuhan Yuli Automation for pricing, availability and international delivery information.
