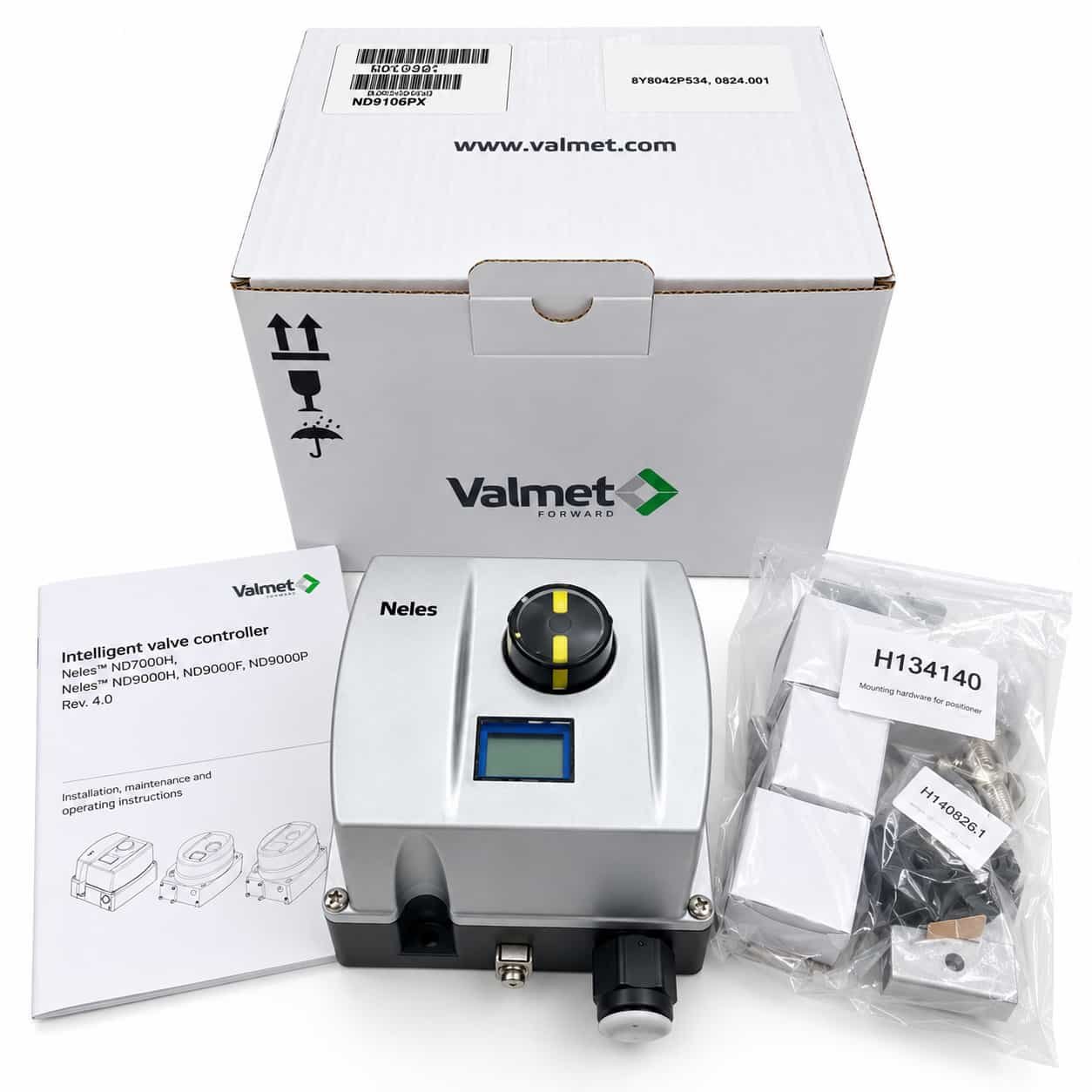

ND9106 PROFIBUS PA Valve Positioner – VALMET / Neles ND9000 Series
The ND9106 PROFIBUS PA Valve Positioner belongs to the VALMET / Neles ND9000 family of intelligent electro-pneumatic valve controllers. Designed for industrial process automation, this product family combines precise valve positioning, digital PROFIBUS PA communication, high-capacity pneumatic control and advanced valve diagnostics.
This product listing includes four model variants: ND9106PX, ND9106PX8, ND9106PU and ND9106PZ. Each model is available for selection through the product variation menu, allowing customers to request pricing for their specific ordering configuration.
The ND9106 series is designed for compatible pneumatic control valve assemblies requiring intelligent positioning and high-capacity pneumatic performance. Its PROFIBUS PA communication interface enables integration with suitable digital process control systems.
Wuhan Yuli Automation Technology Co., Ltd. supplies VALMET / Neles intelligent valve controllers for industrial maintenance, equipment replacement and international procurement projects. Contact our team for pricing, availability and assistance identifying the correct ND9106 PROFIBUS PA Valve Positioner.
Available ND9106 PROFIBUS PA Valve Positioner Models
Four ND9106 PROFIBUS PA ordering configurations are included in this variable product listing.
| Model Number | Communication | Product Series |
|---|---|---|
| ND9106PX | PROFIBUS PA | ND9000 / ND9100 |
| ND9106PX8 | PROFIBUS PA | ND9000 / ND9100 |
| ND9106PU | PROFIBUS PA | ND9000 / ND9100 |
| ND9106PZ | PROFIBUS PA | ND9000 / ND9100 |
Although these four models share the same communication family, their ordering suffixes identify different configurations. Exact enclosure options, approvals and additional specifications must be verified against the manufacturer’s ordering documentation.
Key Features of the ND9106 PROFIBUS PA Valve Positioner
PROFIBUS PA Digital Communication
The ND9106 PROFIBUS PA Valve Positioner uses digital communication designed for industrial process automation networks.
PROFIBUS PA enables compatible field instruments to exchange positioning commands, valve position information and supported diagnostic data with the host automation system.
Unlike conventional 4–20 mA HART positioners, PROFIBUS PA controllers require a compatible fieldbus network, suitable segment infrastructure and appropriate device integration files.
The ND9000P platform supports standardized PROFIBUS communication functions and configuration through compatible engineering tools.
High-Capacity Pneumatic Control
The ND9106 family uses a high-capacity pneumatic configuration intended for suitable larger pneumatic actuator applications.
The ND9106 designation is associated with actuator stroke volumes greater than 3 dm³.
This pneumatic configuration may be suitable for applications requiring higher pneumatic output capacity, provided the actuator and valve assembly meet the manufacturer’s selection criteria.
Accurate Closed-Loop Valve Positioning
The ND9106 PROFIBUS PA Valve Positioner uses electronic position feedback and pneumatic output regulation to control compatible pneumatic valve actuators.
During operation, the electronic controller compares the requested valve position with the measured actuator position.
When a positioning difference is detected, the controller adjusts pneumatic output to move the actuator toward the required position.
This closed-loop positioning method supports stable valve operation and repeatable positioning performance.
Advanced Intelligent Valve Diagnostics
The VALMET / Neles ND9000 platform incorporates intelligent diagnostic functions designed to support maintenance planning and valve performance monitoring.
Diagnostic capabilities include device self-diagnostics, online diagnostics, performance diagnostics and communication diagnostics.
Supported diagnostic information can assist maintenance personnel in identifying changes in valve operation and planning inspections or corrective maintenance.
Non-Contact Position Measurement
The ND9000 family incorporates non-contact position measurement technology.
This technology provides electronic feedback of actuator movement and supports accurate position monitoring during operation.
PROFIBUS PA Host System Integration
The ND9000P platform can be integrated into compatible process control systems using the appropriate PROFIBUS device configuration files.
Manufacturer documentation describes GSD file integration and configuration using engineering tools such as Siemens SIMATIC PDM.
Before installation, customers should verify device revision, supported communication functions, network configuration and host system compatibility.
Local and Remote Configuration
The ND9000 platform supports local configuration and calibration through its local user interface.
Compatible PROFIBUS engineering tools can also provide access to supported device parameters, configuration functions and diagnostic information.
Correct calibration is important after installation, actuator replacement or maintenance.
Rotary and Linear Valve Applications
The ND9000 intelligent valve controller family supports compatible rotary and linear control valves.
With suitable mounting accessories and pneumatic connections, the controller can be considered for compatible single-acting and double-acting pneumatic actuator arrangements.
Industrial Enclosure Protection
The standard ND9100 enclosure family provides IP66 protection.
Exact enclosure ratings, hazardous-area approvals and environmental operating limits depend on the selected ordering configuration and must be verified before purchase.
ND9106 PROFIBUS PA Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | VALMET / Neles |
| Product Family | ND9106 PROFIBUS PA |
| Series | ND9000 / ND9100 |
| Product Type | Intelligent Electro-Pneumatic Valve Positioner |
| Communication Protocol | PROFIBUS PA |
| Communication Architecture | Digital Process Fieldbus |
| Pneumatic Configuration | High Capacity |
| Actuator Stroke Volume Category | Greater Than 3 dm³ |
| Position Feedback | Non-Contact Position Measurement |
| Control Method | Closed-Loop Electronic Positioning |
| Standard Enclosure Family | IP66 |
| Valve Applications | Compatible Rotary and Linear Valves |
| Actuator Applications | Compatible Pneumatic Actuators |
| Diagnostics | ND9000 Intelligent Diagnostic Functions |
| Configuration | Local Interface and Compatible Engineering Tools |
| Host Integration | Compatible PROFIBUS PA Systems |
| Available Models | ND9106PX, ND9106PX8, ND9106PU, ND9106PZ |
| Certifications | Dependent on Exact Ordering Configuration |
Technical Notice: The specifications above describe applicable ND9000 family characteristics. Exact electrical ratings, pneumatic limits, certifications, temperature ranges and model-specific options must be confirmed against manufacturer documentation and the original device nameplate.
How Does the ND9106 PROFIBUS PA Valve Positioner Work?
The ND9106 PROFIBUS PA Valve Positioner receives digital positioning commands from a compatible PROFIBUS PA process control network.
Its electronic controller compares the requested valve position with the actual position measured by the feedback system.
When a positioning difference is detected, the controller regulates pneumatic output to move the connected actuator toward the required position.
The feedback system continuously monitors actuator movement, allowing the controller to make further adjustments as operating conditions change.
Supported position feedback, device status and diagnostic information can be communicated to the host system through the PROFIBUS PA network.
This combination of digital communication, electronic positioning and pneumatic control makes the ND9106 family suitable for consideration in modern process automation applications.
Industrial Applications of ND9106 PROFIBUS PA Positioners
Oil and Gas Processing
ND9106 PROFIBUS PA models can be considered for compatible pneumatic control valve assemblies in oil and gas processing facilities.
Suitable installations may benefit from intelligent positioning, digital communication and access to diagnostic information.
Petrochemical Plants
Petrochemical facilities use automated control valves to regulate process flow, pressure and temperature.
The ND9106 family can support suitable pneumatic actuator applications where PROFIBUS PA communication is required.
Chemical Processing
Chemical manufacturing facilities depend on accurate control valve operation to maintain process conditions.
Intelligent valve positioning and diagnostic information can support maintenance planning and equipment monitoring.
Pulp and Paper Industry
Pulp and paper plants use pneumatic control valves in production systems, chemical recovery operations and plant utilities.
The ND9106 high-capacity family may be suitable for selected larger actuator applications.
Power Generation
Power generation facilities use pneumatic control valves in various process and auxiliary systems.
Compatible ND9106 PROFIBUS PA installations can provide electronic positioning and supported device diagnostics.
General Industrial Automation
Other potential applications include industrial facilities using PROFIBUS PA networks, distributed control systems and pneumatic control valve assemblies.
ND9106 PROFIBUS PA vs FOUNDATION Fieldbus and HART
The VALMET / Neles ND9000 intelligent valve controller platform supports several communication technologies.
The ND9106 PROFIBUS PA Valve Positioner uses PROFIBUS PA communication, while ND9106F and ND9106H models use different communication interfaces.
| Model Family | Communication | Pneumatic Category |
|---|---|---|
| ND9106P | PROFIBUS PA | High Capacity |
| ND9106F | FOUNDATION Fieldbus | High Capacity |
| ND9106H | 4–20 mA HART | High Capacity |
These communication technologies are not directly interchangeable. The correct controller must match the host system, network architecture, wiring and complete ordering requirements.
ND9106 vs ND9103 PROFIBUS PA Positioners
The ND9106 and ND9103 families share the ND9000 intelligent valve control platform but differ in their pneumatic capacity categories.
| Model Family | Pneumatic Capacity |
|---|---|
| ND9106 | High Capacity |
| ND9103 | Medium Capacity |
The correct pneumatic configuration depends on actuator stroke volume, required operating performance and manufacturer selection guidance.
How to Select the Correct ND9106 PROFIBUS PA Variant
When ordering an ND9106 PROFIBUS PA Valve Positioner, customers should verify the complete ordering code and installation requirements.
- Exact Model Number: Match ND9106PX, ND9106PX8, ND9106PU or ND9106PZ.
- Communication: Confirm PROFIBUS PA compatibility.
- Host System: Verify device integration and GSD file support.
- Network Infrastructure: Check the required PROFIBUS PA segment and interface arrangement.
- Pneumatic Capacity: Confirm compatibility with the actuator stroke volume.
- Valve Type: Identify the rotary or linear valve application.
- Actuator Type: Confirm the pneumatic operating arrangement.
- Mounting Accessories: Verify brackets, couplings and pneumatic connections.
- Air Supply: Check pneumatic operating requirements.
- Environmental Conditions: Confirm enclosure and temperature limits.
- Approvals: Verify required hazardous-area certifications.
- Replacement Compatibility: Compare the original device nameplate and complete ordering code.
For replacement projects, customers should provide a photograph of the original nameplate, actuator model and host system information whenever possible.
ND9106 PROFIBUS PA Frequently Asked Questions
What is the ND9106 PROFIBUS PA Valve Positioner?
It is an intelligent electro-pneumatic valve controller family from VALMET / Neles featuring PROFIBUS PA communication and high-capacity pneumatic control.
Which ND9106 PROFIBUS PA models are available?
This listing includes ND9106PX, ND9106PX8, ND9106PU and ND9106PZ.
Does ND9106PX support PROFIBUS PA?
ND9106PX belongs to the ND9106 PROFIBUS PA ordering family. Confirm the complete device configuration before installation.
What is ND9106PX8?
ND9106PX8 is a distinct ordering configuration within the ND9106 PROFIBUS PA family. Its exact options and approvals should be verified against manufacturer documentation.
What is the difference between ND9106PU and ND9106PZ?
These are separate ordering designations. Their precise differences should be confirmed using the manufacturer’s ordering structure rather than inferred from the model names alone.
Is ND9106PX the same as ND9106PN?
No. They are different ordering configurations within the ND9106 PROFIBUS PA family. Replacement compatibility must be verified using the complete specifications.
Can ND9106 PROFIBUS PA models replace HART positioners?
Not directly. PROFIBUS PA and HART use different communication architectures and require compatible control systems.
Can these positioners be used with rotary valves?
The ND9000 family supports compatible rotary valve applications with suitable mounting accessories.
Can these positioners be used with linear valves?
Compatible linear valve applications are supported when the correct mounting and actuator arrangement is selected.
Do ND9106 PROFIBUS PA positioners provide diagnostics?
Yes. The ND9000 platform supports intelligent diagnostic functions designed to assist valve monitoring and maintenance planning.
Can the ND9000P platform be configured with Siemens SIMATIC PDM?
Manufacturer documentation describes ND9000P configuration and diagnostics using Siemens SIMATIC PDM. Compatibility depends on the device revision and engineering software.
How can I request ND9106 PROFIBUS PA pricing?
Contact YULI Automation with the exact model number, required quantity and delivery destination for a quotation.
Official VALMET / Neles Technical Resources
For manufacturer specifications, PROFIBUS communication details and configuration guidance, consult these resources:
- Valmet ND9000 Intelligent Valve Controller Technical Documentation
- Valmet ND9000P PROFIBUS PA Configuration Guide
- Valmet Valve Software and Device Integration Files
Why Choose YULI Automation?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation products and intelligent valve positioning equipment to international customers.
Our team supports VALMET / Neles model identification, procurement inquiries and international order coordination.
- Support for four ND9106 PROFIBUS PA ordering variants.
- Assistance with complete model identification.
- Pricing and availability information upon request.
- Procurement support for industrial maintenance projects.
- International customer communication.
Explore additional VALMET / Neles valve controllers at YULI Positioner.
Request a Quote – ND9106 PROFIBUS PA Valve Positioner
Looking for a VALMET / Neles ND9106 PROFIBUS PA Valve Positioner?
Select ND9106PX, ND9106PX8, ND9106PU or ND9106PZ from the available product variations and contact YULI Automation for pricing and availability.
Please provide the complete ordering code, required quantity and delivery destination.
