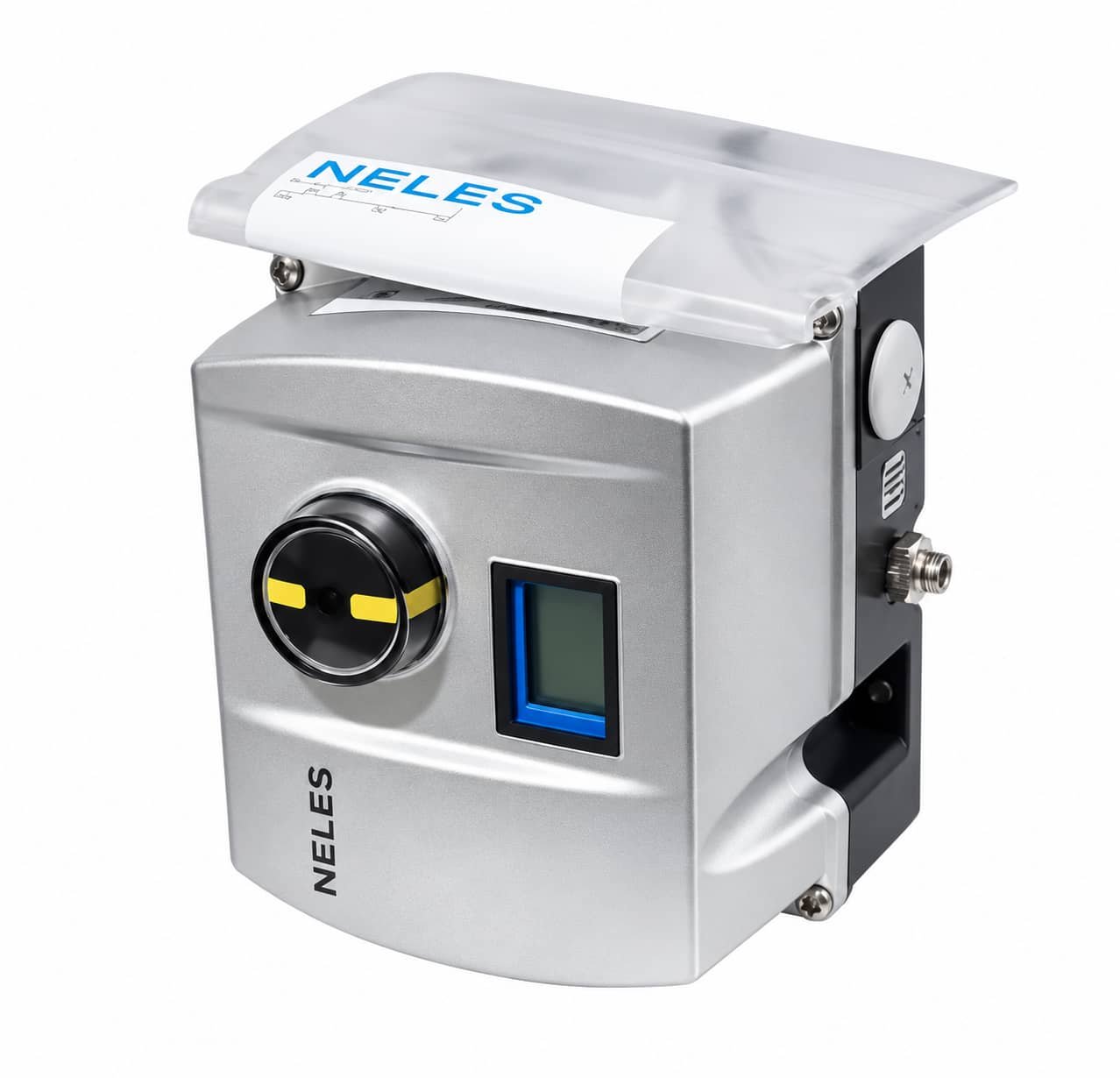

ND9103 PROFIBUS PA Intelligent Valve Controller – VALMET / Neles
ND9103 PROFIBUS PA intelligent valve controllers belong to the VALMET / Neles ND9000 series of advanced electro-pneumatic valve positioners. This product group includes four ordering models: ND9103PX, ND9103PX8, ND9103PU and ND9103PZ.
Designed for industrial process automation, the ND9103 PROFIBUS PA family combines precise pneumatic valve positioning, digital PROFIBUS PA communication and advanced device diagnostics. These features support reliable valve control and help maintenance teams access useful operating information through compatible control systems.
The ND9103 PROFIBUS PA valve controller is suitable for appropriately configured rotary and linear pneumatic control valve assemblies. Its medium-capacity pneumatic arrangement is designed for an actuator stroke volume category of approximately 1–3 dm³.
Wuhan Yuli Automation Technology Co., Ltd. supplies VALMET / Neles intelligent valve controllers for industrial customers worldwide. Contact our sales team for exact model identification, quotations, availability and delivery information.
Available ND9103 PROFIBUS PA Models
This WooCommerce variable product includes four ND9103 PROFIBUS PA ordering codes. Customers can choose their required model from the available product variations.
| Model Number | Communication | Series |
|---|---|---|
| ND9103PX | PROFIBUS PA | ND9000 / ND9100 |
| ND9103PX8 | PROFIBUS PA | ND9000 / ND9100 |
| ND9103PU | PROFIBUS PA | ND9000 / ND9100 |
| ND9103PZ | PROFIBUS PA | ND9000 / ND9100 |
Ordering Note: ND9103PX, ND9103PX8, ND9103PU and ND9103PZ are different manufacturer ordering configurations. Exact option differences, approvals and installation requirements must be confirmed using the complete ordering code and applicable Valmet documentation.
Key Features of ND9103 PROFIBUS PA Valve Controllers
Intelligent Pneumatic Valve Positioning
The ND9103 PROFIBUS PA intelligent valve controller uses electronic position control and pneumatic output regulation to position compatible industrial control valves.
The controller monitors actuator position and adjusts its pneumatic output to achieve the requested valve position. This design supports accurate control performance in suitable industrial process applications.
Digital PROFIBUS PA Communication
ND9103 PROFIBUS PA controllers communicate through compatible PROFIBUS PA fieldbus networks. Digital communication enables the exchange of control commands, position feedback, device status and supported diagnostic information.
Unlike ND9103 HART configurations, PROFIBUS PA models use a digital fieldbus communication architecture rather than a conventional 4–20 mA analog command input.
Integration requires a compatible PROFIBUS PA network and appropriate host-system configuration.
Medium-Capacity Pneumatic Control
The ND9103 designation identifies the medium-capacity spool valve configuration within the ND9100 family.
According to the manufacturer ordering structure, this configuration corresponds to an actuator stroke volume category of 1–3 dm³.
Final suitability depends on the actuator design, pneumatic supply, mounting arrangement and required valve response.
Advanced Device Diagnostics
The ND9000 platform provides intelligent diagnostic functions designed to support valve condition monitoring and maintenance planning.
Supported diagnostic categories include self-diagnostics, online diagnostics, performance diagnostics and communication diagnostics.
Diagnostic information can help maintenance personnel evaluate operating conditions, investigate changes in valve performance and plan appropriate maintenance activities.
Local and Remote Configuration
ND9000 PROFIBUS PA controllers support local configuration through the device interface and remote configuration through compatible engineering tools.
Depending on the device revision and system configuration, supported software tools may include PROFIBUS configuration environments such as Siemens SIMATIC PDM.
Rotary and Linear Valve Applications
The ND9000 family supports compatible rotary and linear pneumatic valve actuators.
Appropriate mounting kits and pneumatic connections allow the controller to be used with suitable single-acting and double-acting actuator arrangements.
Robust Industrial Enclosure
The ND9100 standard enclosure family provides IP66 / NEMA 4X protection.
Specific hazardous-area certifications, ambient temperature limitations and installation conditions depend on the complete device ordering code.
ND9103 PROFIBUS PA Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | VALMET / Neles |
| Product Family | ND9000 |
| Series | ND9100 |
| Product Type | Intelligent Electro-Pneumatic Valve Controller |
| Communication Protocol | PROFIBUS PA |
| Ordering Code Prefix | ND9103P |
| Pneumatic Capacity | Medium Capacity |
| Actuator Stroke Volume Category | 1–3 dm³ |
| Standard Enclosure Protection | IP66 / NEMA 4X |
| Standard Family Temperature Range | -40°C to +85°C |
| Supported Valve Types | Compatible Rotary and Linear Valves |
| Actuator Configurations | Compatible Single-Acting and Double-Acting Actuators |
| Configuration | Local Interface and Supported PROFIBUS Engineering Tools |
| Diagnostics | Self, Online, Performance and Communication Diagnostics |
| Available Models | ND9103PX, ND9103PX8, ND9103PU, ND9103PZ |
| Certifications | Depend on Complete Ordering Code |
Technical Note: The specifications above describe applicable ND9000 / ND9100 family characteristics. Exact device approvals, electrical ratings, options and operating limitations should be verified against the selected product nameplate and official technical documentation.
How Does the ND9103 PROFIBUS PA Valve Controller Work?
The ND9103 PROFIBUS PA valve controller receives digital positioning commands from a compatible process automation system through the PROFIBUS PA network.
Its electronic control system compares the requested valve position with the actual position measured by the device.
The controller then adjusts pneumatic output to move the actuator toward the required position.
During operation, the device can communicate supported position feedback, operating status and diagnostic information to the host system.
This combination of intelligent control and digital fieldbus communication supports integrated valve automation and maintenance monitoring.
PROFIBUS PA Integration with Industrial Control Systems
PROFIBUS PA is a digital fieldbus technology designed for process instrumentation and automation.
ND9103 PROFIBUS PA controllers can be integrated into compatible control architectures using appropriate PROFIBUS PA network infrastructure.
Depending on the system design, a PROFIBUS PA segment may connect to a higher-level PROFIBUS DP network through a suitable coupler or link.
Successful integration requires the correct device configuration, communication files and host-system support.
Valmet provides support resources for ND9000 PROFIBUS devices, including GSD files and compatible engineering software information.
Industrial Applications of ND9103 PROFIBUS PA
Oil and Gas Processing
ND9103 PROFIBUS PA controllers can be considered for compatible pneumatic control valves used in oil and gas processing facilities.
Digital device communication and valve diagnostics can support operating visibility and maintenance activities when the required installation approvals are satisfied.
Petrochemical Plants
Petrochemical production facilities use automated valves to regulate process flow, pressure and temperature.
The ND9103 PROFIBUS PA family can support suitable control valve applications where the plant automation system uses PROFIBUS PA instrumentation.
Chemical Processing
Chemical manufacturing plants often require reliable pneumatic valve positioning and integrated device monitoring.
ND9103 PROFIBUS PA intelligent valve controllers provide digital communication and diagnostic functions for compatible process control systems.
Pulp and Paper Industry
Pulp and paper facilities use automated valves in production, chemical recovery and utility processes.
Compatible ND9103 PROFIBUS PA controllers can support intelligent positioning and fieldbus communication in these industrial environments.
Power Generation
Power generation facilities use pneumatic control valves in process and auxiliary systems.
ND9103 PROFIBUS PA controllers may be selected for suitable valve assemblies where compatible digital fieldbus communication is required.
General Industrial Process Automation
Other applications include industrial facilities using PROFIBUS PA networks for intelligent field devices and distributed process control.
How to Select ND9103PX, ND9103PX8, ND9103PU or ND9103PZ
Selecting the correct ND9103 PROFIBUS PA configuration requires checking the complete manufacturer ordering code.
Before ordering a replacement or a new valve controller, confirm the following information:
- Exact Model Number: ND9103PX, ND9103PX8, ND9103PU or ND9103PZ.
- Communication Protocol: Confirm PROFIBUS PA compatibility.
- Actuator Type: Identify the rotary or linear actuator.
- Pneumatic Capacity: Verify the medium-capacity configuration.
- Mounting Arrangement: Check mounting brackets, couplings and connections.
- Environmental Conditions: Review temperature and enclosure requirements.
- Hazardous-Area Approvals: Confirm all required certifications.
- System Integration: Verify device revision and host-system compatibility.
- Ordering Options: Confirm suffix-dependent configurations.
- Replacement Compatibility: Compare the complete original product nameplate.
Customers replacing an existing controller are encouraged to provide the complete model number and a photograph of the original nameplate.
ND9103 PROFIBUS PA vs HART vs FOUNDATION Fieldbus
The VALMET / Neles ND9103 family includes several communication configurations for different industrial automation systems.
| Product Family | Model Prefix | Communication |
|---|---|---|
| ND9103 PROFIBUS PA | ND9103P | PROFIBUS PA |
| ND9103 HART | ND9103H | 4–20 mA HART |
| ND9103 FOUNDATION Fieldbus | ND9103F | FOUNDATION Fieldbus |
Although these controllers belong to the same ND9000 product family, their communication technologies and electrical integration requirements differ.
A PROFIBUS PA model should not be assumed to replace a HART or FOUNDATION Fieldbus model without appropriate engineering verification.
Benefits of ND9103 PROFIBUS PA Intelligent Valve Controllers
The ND9103 PROFIBUS PA family combines pneumatic positioning with digital communication and advanced valve diagnostics.
For compatible industrial applications, this provides several practical benefits:
- Accurate pneumatic valve positioning.
- Digital communication with compatible PROFIBUS PA networks.
- Access to supported valve operating information.
- Intelligent diagnostics for maintenance planning.
- Compatibility with suitable rotary and linear valve actuators.
- Local configuration and supported remote engineering tools.
- Industrial enclosure protection.
- Integration with compatible distributed control systems.
These capabilities make the ND9103 PROFIBUS PA family relevant to industrial users seeking intelligent valve automation and digital process instrumentation.
Frequently Asked Questions About ND9103 PROFIBUS PA
What models are included in the ND9103 PROFIBUS PA product group?
This product group includes ND9103PX, ND9103PX8, ND9103PU and ND9103PZ.
Does ND9103PX support PROFIBUS PA communication?
ND9103PX belongs to the ND9103P PROFIBUS PA communication family. Verify the complete ordering code and device revision before purchase.
What is ND9103PX8?
ND9103PX8 is a specific ordering designation within the ND9103 PROFIBUS PA family. Its exact option configuration should be confirmed using the manufacturer ordering guide.
What is the difference between ND9103PU and ND9103PZ?
Both belong to the ND9103 PROFIBUS PA family, but their ordering suffixes differ. The exact option and certification differences require verification using official manufacturer documentation.
Can ND9103 PROFIBUS PA replace ND9103 HART?
Not as a direct communication replacement. PROFIBUS PA and HART use different communication architectures and require compatible control system interfaces.
Can ND9103 PROFIBUS PA controllers be used with rotary valves?
Yes. The ND9000 family supports compatible rotary pneumatic valve actuators with the appropriate mounting arrangement.
Are ND9103 PROFIBUS PA controllers suitable for linear valves?
The ND9000 platform also supports compatible linear valve applications using suitable mounting and pneumatic configurations.
Does the ND9103 PROFIBUS PA family support diagnostics?
Yes. The ND9000 platform provides self-diagnostics, online diagnostics, performance diagnostics and communication diagnostics.
Can ND9103PX, ND9103PX8, ND9103PU and ND9103PZ be interchanged?
Interchangeability depends on the complete ordering code, approvals, installed options, actuator requirements and host-system compatibility.
Where can I buy ND9103 PROFIBUS PA valve controllers?
Contact Wuhan Yuli Automation Technology Co., Ltd. with the required model number and quantity to request pricing and availability.
Official VALMET / Neles Technical Resources
For technical verification, consult the manufacturer’s product documentation and software resources:
- Valmet Neles ND9000 Intelligent Valve Controller
- Valmet ND9000 Ordering Code Guide
- Valmet ND9000 Fieldbus Technical Information
- Valmet Valve Software and Device Support Files
