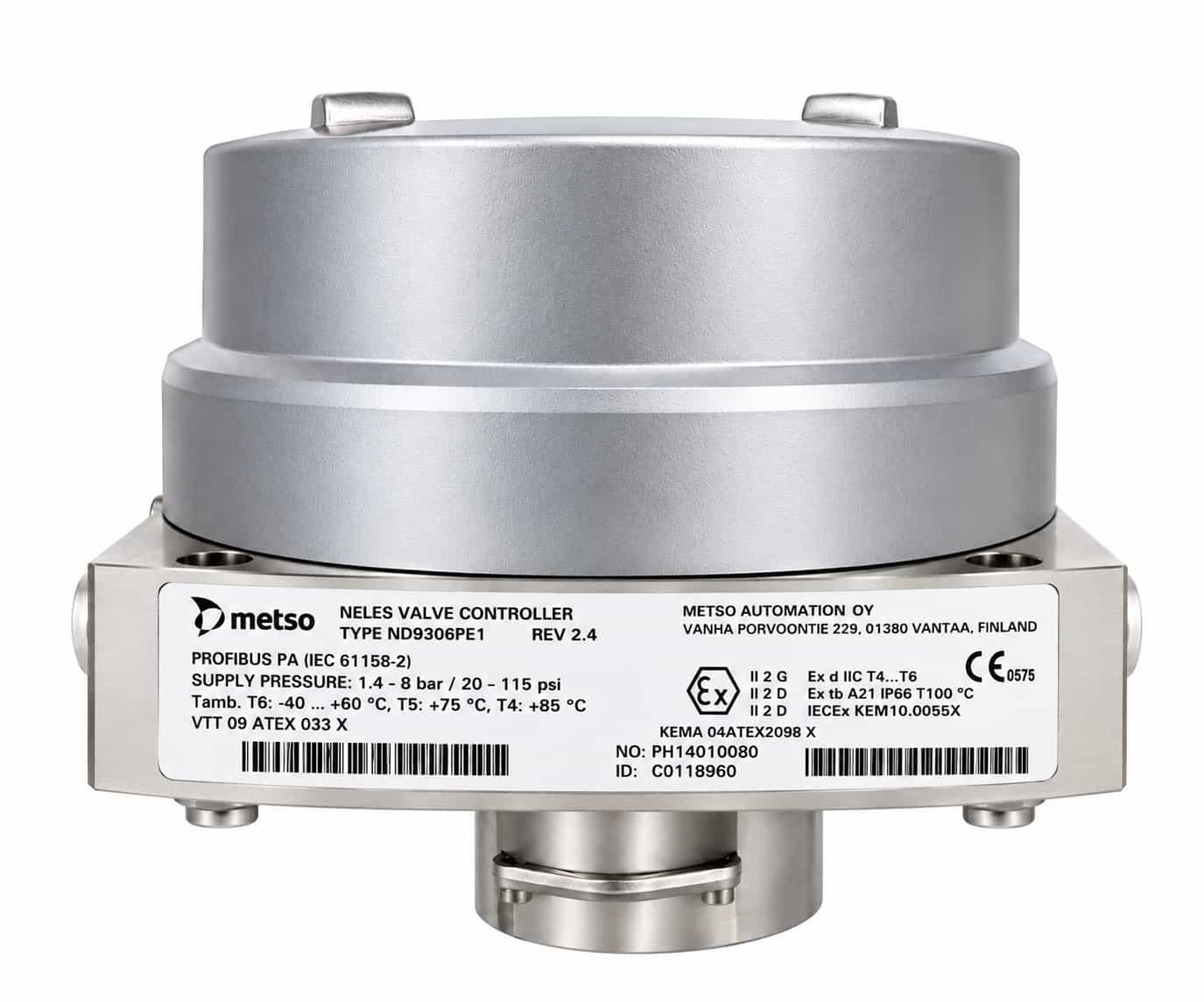

VALMET / Neles ND9306PE PROFIBUS PA Stainless Steel Ex d High Capacity Valve Controller

VALMET ND9306PE PROFIBUS PA Stainless Steel Ex d High Capacity Valve Controller

The VALMET ND9306PE is a high-capacity intelligent valve controller from the Neles ND9000 series, developed for demanding industrial process automation applications. It combines accurate valve positioning, PROFIBUS PA digital communication, advanced valve diagnostics, and robust stainless steel construction.

The ND9306PE features a stainless steel flameproof Ex d enclosure with IP66 / NEMA 4X environmental protection. In addition, its high-capacity pneumatic spool valve is designed for compatible actuators with stroke volumes greater than 3 dm³. Therefore, it is particularly relevant for larger pneumatic valve actuator applications requiring increased air-flow capacity.

Furthermore, PROFIBUS PA communication enables integration with compatible distributed control systems and industrial fieldbus networks. The intelligent ND9000 platform also supports device diagnostics, helping maintenance teams evaluate valve performance and plan service activities.

The available models include ND9306PE1, ND9306PE2, ND9306PE5, and ND9306PE8. These configurations share the ND9306P control platform but offer different hazardous-area approval options. Consequently, customers should verify the complete ordering code and certification requirements before purchasing.

Key Features of VALMET ND9306PE

• PROFIBUS PA Communication: Digital communication with compatible process control and automation systems.
• High Pneumatic Capacity: Designed for actuator stroke volumes greater than 3 dm³.
• Stainless Steel Enclosure: Durable construction for demanding industrial environments.
• Ex d Flameproof Design: Available with different hazardous-area certification options.
• Intelligent Valve Positioning: Precise control of compatible rotary and linear valve assemblies.
• Advanced Diagnostics: Supports device diagnostics, online monitoring, and valve performance evaluation.
• IP66 / NEMA 4X Protection: Robust environmental protection against dust and water ingress.
• 1/4 NPT Pneumatic Connections: Connection configuration specified for the ND9300 series.
• Flexible Installation: Supports suitable actuator and mounting arrangements.
• Multiple Approval Configurations: ND9306PE1, ND9306PE2, ND9306PE5, and ND9306PE8.

Moreover, the ND9000 intelligent valve controller platform supports commissioning and configuration using compatible engineering tools. As a result, maintenance personnel can access useful information about controller condition and valve operation.

VALMET ND9306PE Technical Specifications

Technical Note: Exact electrical ratings, supply pressure, ambient temperature limits, explosion-protection markings, certificates, and optional accessories must be confirmed using the complete manufacturer ordering code and product nameplate.

Available VALMET ND9306PE Models

The following four configurations are offered as selectable variations within the VALMET ND9306PE product family. All use PROFIBUS PA communication and high-capacity pneumatic control.

VALMET ND9306PE1 PROFIBUS PA Valve Controller

The VALMET ND9306PE1 is a high-capacity intelligent valve controller featuring PROFIBUS PA communication and a stainless steel Ex d enclosure. The E1 approval option must be matched to the relevant hazardous-area installation requirements.

VALMET ND9306PE2 PROFIBUS PA Valve Controller

The VALMET ND9306PE2 combines intelligent valve positioning, high pneumatic capacity, and digital fieldbus communication. Its E2 approval configuration provides an alternative ordering option for suitable industrial applications.

VALMET ND9306PE5 PROFIBUS PA Valve Controller

The VALMET ND9306PE5 features the ND9306P control platform with an E5 approval option. It supports digital integration, advanced diagnostics, and high-capacity valve control in compatible process automation systems.

VALMET ND9306PE8 PROFIBUS PA Valve Controller

The VALMET ND9306PE8 offers PROFIBUS PA communication, stainless steel construction, and an E8 approval option. Its specific certification and installation requirements must be verified before selection.

Model Selection Note: ND9306PE1, ND9306PE2, ND9306PE5, and ND9306PE8 must not be considered interchangeable without verifying the applicable hazardous-area approvals.

Industrial Applications of VALMET ND9306PE

Oil and Gas Processing

Oil and gas processing facilities rely on dependable control valve automation. The VALMET ND9306PE supports high-capacity pneumatic positioning and digital communication for compatible valve assemblies. Furthermore, its stainless steel enclosure is designed for demanding operating environments.

Petrochemical Plants

Petrochemical plants frequently require robust industrial instrumentation. Therefore, the ND9306PE can be considered for installations requiring PROFIBUS PA communication, high pneumatic capacity, and appropriately certified flameproof construction.

Chemical Processing

Chemical processing facilities depend on stable process control and accurate valve positioning. The ND9000 platform supports intelligent valve management and diagnostic monitoring for suitable applications.

Power Generation

Power generation facilities use automated valves to regulate steam, water, and other process media. The ND9306PE supports compatible high-capacity actuator applications and digital integration with suitable PROFIBUS PA control systems.

Pulp and Paper Industry

Pulp and paper production requires consistent valve operation. The ND9306PE provides intelligent valve positioning and diagnostic information that can support maintenance planning and process stability.

Large Pneumatic Actuator Applications

The ND9306PE high-capacity configuration is particularly relevant where actuator stroke volume exceeds 3 dm³. Nevertheless, final selection must consider the actuator size, required stroke time, supply pressure, and manufacturer sizing recommendations.

Advantages of PROFIBUS PA Communication

PROFIBUS PA is a digital communication technology used in industrial process automation. It allows compatible field instruments to exchange process information, configuration data, and diagnostic information with control systems.

The VALMET ND9306PE uses PROFIBUS PA communication to support intelligent valve control and device integration. Consequently, operators can obtain useful information about controller condition and valve behavior through compatible host systems.

Furthermore, the ND9000 platform provides advanced diagnostic capabilities. These functions can help maintenance teams identify changes in valve performance and support preventive maintenance planning.

In addition, compatible fieldbus engineering tools can assist with commissioning and configuration. However, the availability of specific features depends on the installed device revision and host-system integration.

Why Choose Wuhan Yuli Automation?

Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation equipment and replacement components to international customers. Our product portfolio includes VALMET / Neles intelligent valve controllers, valve positioners, and related industrial process control products.

• New and original industrial automation products.
• Minimum 12-month warranty.
• Assistance with complete model identification.
• Competitive quotations based on product availability.
• International shipping support.
• Support for industrial maintenance and replacement projects.

Whether you need ND9306PE1, ND9306PE2, ND9306PE5, or ND9306PE8, our sales team can assist with ordering-code verification and quotation requests.

Frequently Asked Questions About VALMET ND9306PE

What is the VALMET ND9306PE?

The VALMET ND9306PE is a high-capacity PROFIBUS PA intelligent valve controller in the Neles ND9000 series. It features a stainless steel Ex d enclosure and advanced diagnostic capabilities.

Does ND9306PE support PROFIBUS PA?

Yes. The ND9306PE uses PROFIBUS PA communication based on the IEC 61158-2 physical layer for compatible process automation systems.

What is the difference between ND9306PE and ND9306FE?

ND9306PE uses PROFIBUS PA communication, while ND9306FE uses FOUNDATION Fieldbus. The correct version depends on the communication protocol required by the control system.

What is the difference between ND9306PE and ND9306HE?

ND9306PE uses PROFIBUS PA communication, while ND9306HE uses HART communication. These configurations are not direct communication equivalents.

What is the difference between ND9306PE and ND9303PE?

ND9306PE uses a high-capacity spool valve for actuator stroke volumes greater than 3 dm³. ND9303PE uses a medium-capacity configuration for approximately 1–3 dm³.

What is the difference between ND9306PE1 and ND9306PE2?

Both share the ND9306P platform, but E1 and E2 indicate different approval options. The applicable certification should be verified before ordering.

Can ND9306PE be installed in hazardous areas?

The ND9306PE features a flameproof Ex d enclosure. Installation suitability depends on the exact certification, hazardous-area classification, and applicable requirements.

Can ND9306PE control rotary and linear valves?

The ND9000 platform supports compatible rotary and linear valve assemblies. Actuator sizing and mounting compatibility must be checked for each installation.

Where can I buy VALMET ND9306PE?

Contact Wuhan Yuli Automation with your complete model number, quantity, and delivery destination to request pricing and availability information.
