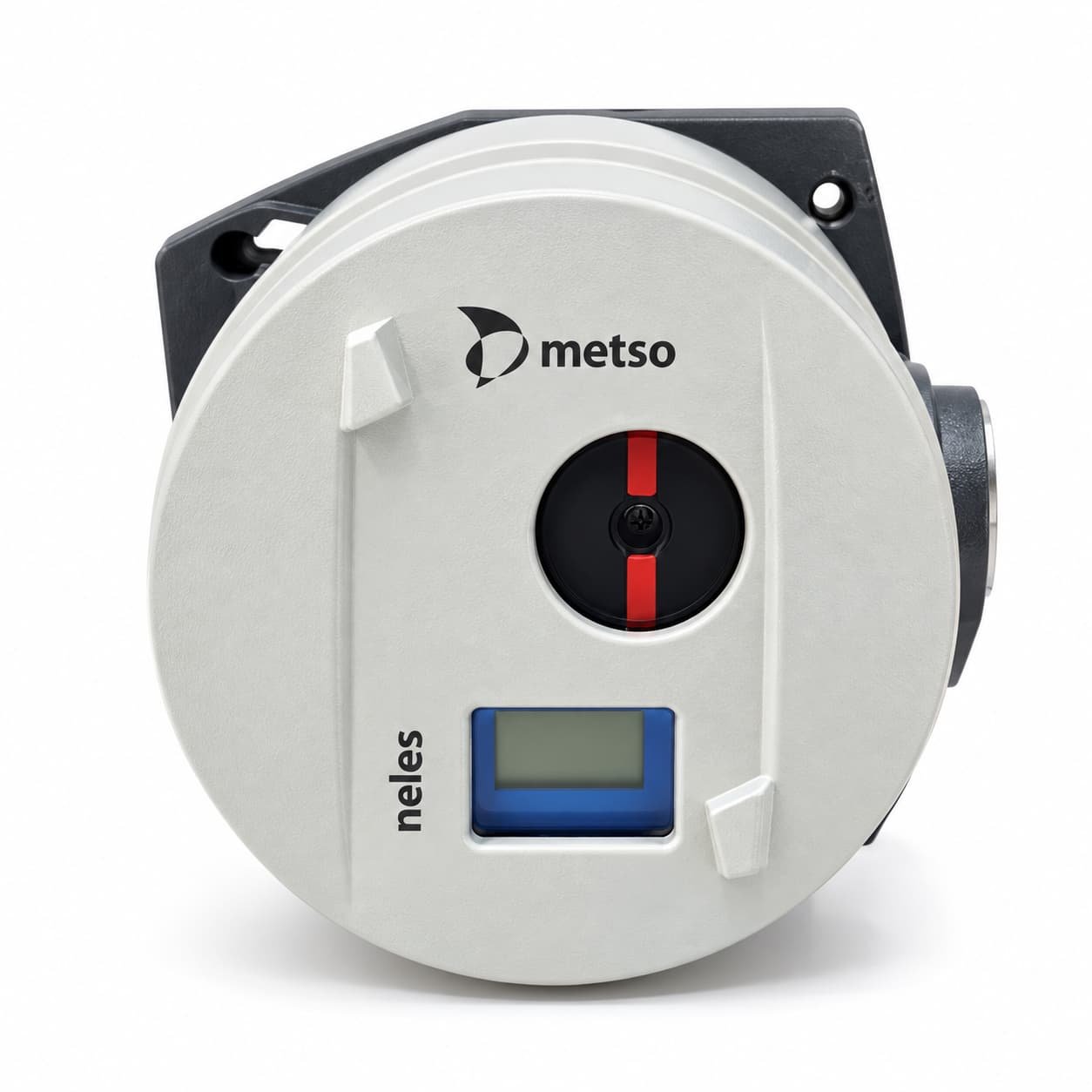

VALMET ND9406 Stainless Steel High Capacity Intelligent Valve Controller
The VALMET / Neles ND9406 is a high-capacity intelligent valve controller from the ND9000 series, developed for demanding industrial process automation and pneumatic valve positioning. The ND9406 product family combines advanced valve control, digital communication and diagnostic capabilities with durable stainless steel housing construction.
Designed for compatible pneumatic actuators requiring high air-flow capacity, the ND9406 uses the high-capacity 06 pneumatic configuration. It is particularly relevant for applications with actuator stroke volumes greater than 3 dm³, subject to final actuator sizing and installation requirements.
The ND9406 series is available in three communication versions: ND9406H with HART, ND9406F with FOUNDATION Fieldbus, and ND9406P with PROFIBUS PA. Therefore, plant engineers can select the appropriate configuration according to their installed distributed control system and field instrumentation network.
Furthermore, the ND94 platform features stainless steel housing construction with a polymer composite cover. The intelligent ND9000 architecture also provides device and valve diagnostic information through compatible configuration and maintenance systems.
The available ordering codes include 20 variations across the HART, FOUNDATION Fieldbus and PROFIBUS PA families. Each complete ordering code should be verified for its communication protocol, approval options, accessories and actuator compatibility before purchase.
Key Features of VALMET ND9406
- High Pneumatic Capacity: Designed for compatible actuators with stroke volumes greater than 3 dm³.
- Three Communication Protocols: HART, FOUNDATION Fieldbus and PROFIBUS PA.
- Stainless Steel Housing: Durable housing with a polymer composite cover.
- Intelligent Valve Positioning: Supports accurate control of compatible pneumatic valve assemblies.
- Advanced Diagnostics: Provides controller and valve performance information through compatible tools.
- Rotary and Linear Valve Applications: Supports suitable actuator and mounting configurations.
- Industrial Environmental Protection: Robust construction for demanding process environments.
- Digital Device Integration: Supports configuration, monitoring and troubleshooting through suitable host systems.
- Multiple Ordering Options: N, X, X8, U, Z and T configurations are represented in the listed models.
- Industrial Replacement Applications: Suitable for appropriately specified valve controller maintenance and replacement projects.
In addition, the ND9406 high-capacity configuration can be considered when a lower-capacity controller does not meet actuator sizing requirements. However, pneumatic capacity alone does not determine compatibility; actuator type, required stroke time, mounting and air supply must also be evaluated.
VALMET ND9406 Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | VALMET / Neles |
| Product Family | ND9000 Intelligent Valve Controller |
| Series | ND9406 |
| Product Type | High Capacity Intelligent Valve Controller |
| Housing Construction | Stainless steel housing with polymer composite cover |
| Pneumatic Configuration | High capacity, 06 spool valve |
| Actuator Stroke Volume | Generally greater than 3 dm³; verify actuator sizing |
| ND9406H Communication | 4–20 mA / HART |
| ND9406F Communication | FOUNDATION Fieldbus |
| ND9406P Communication | PROFIBUS PA |
| Fieldbus Physical Layer | IEC 61158-2 for F and P configurations |
| Valve Compatibility | Compatible rotary and linear valve assemblies |
| Diagnostics | Intelligent controller and valve diagnostics |
| Mounting | Confirm actuator and mounting kit compatibility |
| Environmental Protection | Check applicable ND94 datasheet and configuration |
| Hazardous-Area Approvals | Depend on complete ordering code and certificate |
| Ordering Suffixes | N, X, X8, U, Z and T – verify exact option meanings |
| Total Variations | 20 |
Technical Note: Electrical ratings, supply pressure, operating temperature, environmental protection, hazardous-area certifications, pneumatic connections and accessories must be confirmed against the official technical documentation and the selected product nameplate.
ND9406H vs ND9406F vs ND9406P
VALMET ND9406H – HART High Capacity Valve Controller
The VALMET ND9406H supports 4–20 mA control with HART digital communication. It combines high-capacity pneumatic control with intelligent valve positioning and available diagnostic capabilities. This version is intended for compatible HART-based process automation systems.
VALMET ND9406F – FOUNDATION Fieldbus High Capacity Valve Controller
The VALMET ND9406F uses FOUNDATION Fieldbus communication for digital integration with compatible fieldbus control systems. It supports high-capacity valve automation applications where fieldbus-based configuration and diagnostic information are required.
VALMET ND9406P – PROFIBUS PA High Capacity Valve Controller
The VALMET ND9406P provides PROFIBUS PA communication for suitable industrial process control networks. Its high-capacity pneumatic configuration supports appropriately selected actuators requiring increased pneumatic output.
Communication Selection: HART, FOUNDATION Fieldbus and PROFIBUS PA are different protocols. Confirm the existing control-system interface before selecting or replacing a valve controller.
Available VALMET ND9406 Models
The ND9406 family includes the following 20 ordering configurations. Models are grouped by communication protocol to simplify product selection and quotation requests.
VALMET ND9406H – HART Models
The HART family includes 10 ordering codes. These configurations share the ND9406 high-capacity platform, while their suffixes identify different ordering options.
| Model Number | Communication | Pneumatic Capacity |
|---|---|---|
| ND9406HN | HART | High |
| ND9406HNT | HART | High |
| ND9406HX | HART | High |
| ND9406HXT | HART | High |
| ND9406HX8 | HART | High |
| ND9406HX8T | HART | High |
| ND9406HU | HART | High |
| ND9406HUT | HART | High |
| ND9406HZ | HART | High |
| ND9406HZT | HART | High |
VALMET ND9406F – FOUNDATION Fieldbus Models
The FOUNDATION Fieldbus family includes 5 ordering codes. These configurations share the ND9406 high-capacity platform, while their suffixes identify different ordering options.
| Model Number | Communication | Pneumatic Capacity |
|---|---|---|
| ND9406FN | FOUNDATION Fieldbus | High |
| ND9406FX | FOUNDATION Fieldbus | High |
| ND9406FX8 | FOUNDATION Fieldbus | High |
| ND9406FU | FOUNDATION Fieldbus | High |
| ND9406FZ | FOUNDATION Fieldbus | High |
VALMET ND9406P – PROFIBUS PA Models
The PROFIBUS PA family includes 5 ordering codes. These configurations share the ND9406 high-capacity platform, while their suffixes identify different ordering options.
| Model Number | Communication | Pneumatic Capacity |
|---|---|---|
| ND9406PN | PROFIBUS PA | High |
| ND9406PX | PROFIBUS PA | High |
| ND9406PX8 | PROFIBUS PA | High |
| ND9406PU | PROFIBUS PA | High |
| ND9406PZ | PROFIBUS PA | High |
Important Ordering Note: ND9406HN, ND9406HNT, ND9406HX8T and other suffix variations may have different approval or feature requirements. Do not substitute one complete model code for another without checking manufacturer documentation.
Industrial Applications of VALMET ND9406
Oil and Gas Processing
Oil and gas processing plants use automated valves to regulate flow and pressure across demanding operations. The ND9406 high-capacity controller can support appropriately sized pneumatic valve assemblies and compatible digital control systems.
Petrochemical and Chemical Plants
Petrochemical and chemical processing facilities often require durable valve automation equipment. The ND9406 provides a high-capacity pneumatic option together with intelligent diagnostics and multiple communication technologies.
Power Generation
Power generation facilities use pneumatic control valves in steam, water and auxiliary process systems. The ND9406 can be considered for compatible applications requiring greater pneumatic capacity and suitable host-system communication.
Pulp and Paper Manufacturing
Pulp and paper production depends on reliable process control and valve operation. The ND9000 platform supports intelligent positioning and diagnostic information that can assist maintenance personnel.
Mining and Mineral Processing
Mining and mineral processing plants operate in demanding industrial environments. The ND9406 family offers high-capacity valve control and different communication options for appropriately specified pneumatic actuators.
Large Pneumatic Actuator Applications
The ND9406 high-capacity configuration is particularly relevant to actuators with stroke volumes greater than 3 dm³. Nevertheless, final selection must consider actuator volume, supply pressure, required operating speed and manufacturer sizing recommendations.
Benefits of High Capacity Intelligent Valve Control
High-capacity pneumatic valve controllers are selected when the actuator requires increased pneumatic output. The VALMET ND9406 provides this capability within the intelligent ND9000 platform, supporting precise valve positioning in compatible installations.
Furthermore, the availability of HART, FOUNDATION Fieldbus and PROFIBUS PA configurations allows engineers to choose the communication technology required by the existing control system. This can support system integration and maintenance planning.
The ND9000 platform also provides diagnostic information for evaluating controller and valve behavior. Consequently, compatible maintenance systems can help personnel identify changes in operating performance and investigate potential issues.
Why Choose Wuhan Yuli Automation?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation products and replacement components to customers worldwide. Our product range includes VALMET / Neles intelligent valve controllers, valve positioners and other industrial process control equipment.
- New and original industrial automation products.
- Minimum 12-month warranty.
- Assistance with complete ordering-code verification.
- Competitive quotations subject to availability.
- International shipping support.
- Support for industrial maintenance and replacement projects.
Whether you require ND9406HN, ND9406HXT, ND9406FX8, ND9406PU or ND9406PZ, our sales team can assist with product identification and quotation requests.
Frequently Asked Questions About VALMET ND9406
What is the VALMET ND9406?
The VALMET ND9406 is a high-capacity intelligent valve controller from the Neles ND9000 family, available with HART, FOUNDATION Fieldbus and PROFIBUS PA communication.
What is the difference between ND9406 and ND9403?
ND9406 uses a high-capacity pneumatic configuration generally intended for actuator stroke volumes above 3 dm³. ND9403 is a medium-capacity configuration for approximately 1–3 dm³.
What is the difference between ND9406 and ND9402?
ND9406 is a high-capacity configuration, while ND9402 is a low-capacity configuration intended for smaller pneumatic actuators.
What is the difference between ND9406H and ND9406F?
ND9406H uses HART communication, while ND9406F uses FOUNDATION Fieldbus. These protocols require compatible control-system interfaces.
What is the difference between ND9406F and ND9406P?
ND9406F supports FOUNDATION Fieldbus, whereas ND9406P supports PROFIBUS PA. They are not direct communication substitutes.
What does the T suffix mean in ND9406HNT?
The T suffix identifies an additional manufacturer ordering option. Its exact meaning and compatibility must be confirmed using the applicable ordering guide.
Can ND9406 be used in hazardous areas?
Only configurations with the appropriate hazardous-area certification may be used in the relevant installation. Verify the complete ordering code and certificate.
Does ND9406 support valve diagnostics?
The ND9000 intelligent valve controller platform provides diagnostic capabilities. Available functions depend on the device revision, communication protocol and host-system integration.
Where can I request an ND9406 quotation?
Contact Wuhan Yuli Automation with the complete model number, required quantity and delivery destination to request pricing and availability.
