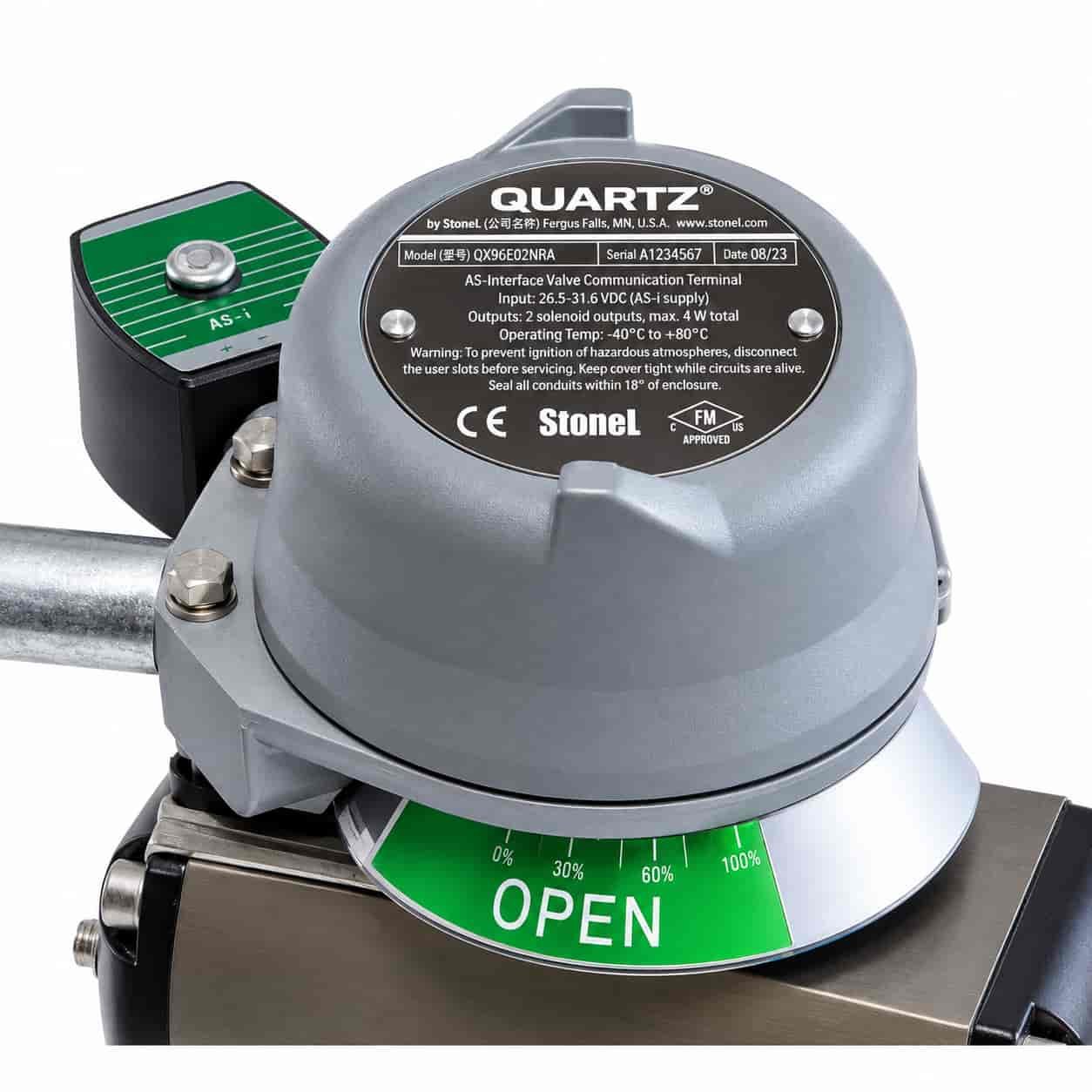

StoneL Quartz QX96 AS-Interface Valve Communication Terminal
The StoneL Quartz QX96 AS-Interface Valve Communication Terminal is designed to connect automated on/off valves to industrial AS-Interface (AS-i) communication networks. Part of the StoneL Quartz valve automation family, the QX96 combines valve position monitoring, auxiliary discrete inputs and solenoid output control within a field-mounted industrial enclosure.
By bringing valve feedback and control functions together, the StoneL QX96 helps industrial facilities organize their valve automation systems. In addition, its AS-i communication capability makes the terminal suitable for applications where multiple field devices communicate with a compatible AS-Interface master. The Quartz platform offers different ordering configurations to accommodate the requirements of industrial process installations.
Key Features and Benefits
- AS-Interface communication: Connects compatible automated valves to an AS-i network.
- Two valve position inputs: Supports feedback from open and closed position sensors.
- Two auxiliary discrete inputs: Provides additional input channels for compatible field signals.
- Two solenoid outputs: Enables control of appropriately rated solenoid valve circuits.
- AS-i 3.0 support: Uses the AS-Interface communication architecture documented for the QX96 family.
- Integrated valve automation: Combines monitoring and control functions in one terminal.
- Industrial construction: The Quartz enclosure family is intended for challenging process environments.
- Multiple configurations: Different ordering codes support different connection and indication requirements.
Available StoneL Quartz QX96 Models
Wuhan Yuli Automation accepts quotation inquiries for the following StoneL Quartz QX96 AS-Interface Valve Communication Terminal models. Each model number is available as a separate product variation on this page. When purchasing replacement equipment, customers should match the complete ordering code instead of selecting a product based only on its external appearance.
| Model Number | Product Description |
|---|---|
| QX96E02NRA | StoneL Quartz QX96 AS-Interface VCT |
| QX96E03NRA | StoneL Quartz QX96 AS-Interface VCT |
| QX96R05NRA | StoneL Quartz QX96 AS-Interface VCT |
| QX96R06NRA | StoneL Quartz QX96 AS-Interface VCT |
Important: Enclosure type, conduit entries, indication options and certifications may differ between complete ordering codes. Confirm the original manufacturer’s model selector and product nameplate before ordering.
Technical Specifications
| Brand | StoneL / Valmet |
|---|---|
| Product Series | Quartz QX96 |
| Device Type | Valve Communication Terminal (VCT) |
| Communication Protocol | AS-Interface (AS-i) |
| AS-i Version | 3.0 |
| Position Sensor Inputs | 2 discrete inputs |
| Auxiliary Inputs | 2 discrete inputs; 24 VDC at 2 mA, self-powered |
| Solenoid Outputs | 2 power outputs |
| Combined Output Current | 160 mA maximum |
| Combined Output Power | 4 W at 24 VDC maximum |
| Output Voltage | 21–26 VDC |
| Configuration | 4 discrete inputs / 2 discrete outputs |
| AS-i ID / IO | ID=F, IO=4 |
| Devices per Standard Network | Up to 31 |
These are QX96 family-level specifications from StoneL technical literature. Confirm supply voltage, installation temperature, hazardous-area approvals and electrical limits for the specific product revision.
How the QX96 AS-Interface Terminal Works
The QX96 exchanges valve position and output control information through an AS-Interface network. Its two position sensor inputs are used to represent valve end positions, while the two auxiliary inputs can accommodate additional compatible discrete signals. The terminal also provides two outputs for controlling appropriately rated solenoid devices.
In a typical automated valve installation, a control system communicates through an AS-i master and receives information from field devices on the network. The QX96 provides an interface between the valve assembly and that communication architecture. This can reduce the need to manage separate feedback and output devices for every valve, depending on the installation design.
Correct network addressing, wiring and electrical compatibility remain essential. The AS-i master must support the appropriate device configuration, and the connected solenoid loads must remain within the manufacturer’s specified output limits. Installation and commissioning should follow the applicable StoneL documentation.
Industrial Applications
The StoneL Quartz QX96 is intended for industrial valve automation systems using AS-Interface communication. Potential applications include oil and gas processing, petrochemical plants, chemical manufacturing, power generation, pulp and paper, water treatment and general process control.
For example, automated isolation valves may require both remote position confirmation and solenoid actuation. When the facility already uses AS-i communication, an integrated valve communication terminal can provide these functions through a compatible network arrangement.
However, application suitability must be evaluated individually. Actuator mounting, electrical loads, ambient temperature, conduit requirements and site approvals can affect the correct model selection. For hazardous-area installations, use only the specific product configuration approved for the relevant location and follow the manufacturer’s installation requirements.
QX96 vs. QX97 AS-Interface Terminals
Both QX96 and QX97 belong to the StoneL Quartz AS-Interface communication family, but their standard configurations are different. The QX96 provides two solenoid outputs and is associated with standard addressing for up to 31 devices per network. The QX97 extended-addressing family is designed for up to 62 devices and has a different standard output arrangement.
Consequently, the two series should not be considered direct replacements without a review of network addressing, output requirements and the complete model configuration. For existing systems, the original part number is an important starting point.
Ordering and Replacement Guidance
When requesting a StoneL Quartz QX96 replacement, identify the complete model number on the product nameplate. Customers should also provide the quantity, delivery country, existing network requirements and any special approvals. If available, photographs of the original terminal can help confirm its enclosure and connection arrangement.
For a new project, confirm that the controller or gateway supports the required AS-i device profile. Additionally, check the solenoid load and the desired position indication arrangement. These details can help avoid configuration errors and unnecessary replacement delays.
Wuhan Yuli Automation can review the requested ordering code and prepare a quotation based on available supply information. Final availability, lead time, product revision and shipping terms will be confirmed before order acceptance.
Why Choose Wuhan Yuli Automation?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation products and replacement components to international customers. Our product range includes StoneL valve monitors, valve communication terminals and other industrial process automation equipment.
We support inquiries for new original products, complete model-number identification and international procurement. Our team can help customers communicate their technical requirements clearly and request quotations for the specific StoneL Quartz QX96 configuration they need.
Frequently Asked Questions
What is the StoneL Quartz QX96?
The QX96 is an AS-Interface valve communication terminal that integrates valve position feedback, auxiliary discrete inputs and solenoid control outputs for compatible industrial networks.
How many inputs and outputs does the QX96 support?
The documented QX96 configuration includes two position sensor inputs, two auxiliary discrete inputs and two solenoid outputs.
Can QX96 replace a QX92 DeviceNet terminal?
No direct interchangeability should be assumed. QX96 uses AS-Interface, while QX92 uses DeviceNet. The network protocol and complete hardware configuration must match the application.
Are QX96E02NRA and QX96R06NRA identical?
They belong to the same QX96 family but have different complete ordering codes. Verify enclosure, connection and indication details before selecting a replacement.
How can I request a QX96 quotation?
Send the full model number, required quantity, delivery destination and any relevant technical requirements to our sales team.
