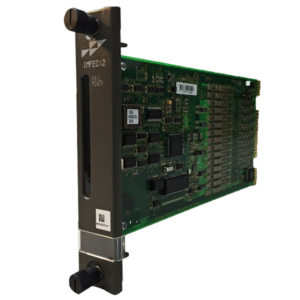

ABB ANALOG INPUT MODULE (15 INPUTS) IMFEC12 – Detailed Specifications & Technical Overview

The IMFEC12 Analog Input Module (15 Inputs) supports industrial plants that require fast, reliable, and highly scalable signal acquisition. Moreover, this module integrates seamlessly into complex control architectures, and therefore users gain continuous stability across demanding operational environments. Because the IMFEC12 Analog Input Module handles multi-channel input processing with exceptional accuracy, it strengthens the foundation of data collection for manufacturing, energy production, chemical processing, and many other forms of industrial automation.

As industrial applications evolve quickly, engineers increasingly prefer modules that combine real-time responsiveness, high-resolution signal conversion, and long-term durability. Consequently, the ABB IMFEC12 responds to these expectations with a design that promotes efficiency and consistent measurement quality. Additionally, the 15-input structure ensures that the system expands easily without forcing the user to redesign the entire control cabinet.

IMFEC12 General Product Overview

The IMFEC12 Analog Input Module includes 15 high-accuracy analog channels that support current and voltage signal types widely used across industrial automation systems. Because each channel captures real-time process data, the module provides continuous insights that enhance operational decision-making. Furthermore, the IMFEC12 strengthens signal integrity through noise-reduction circuits and stable conversion technology, which improves measurement reliability in high-interference environments.

The module fits seamlessly into distributed control systems and programmable automation systems, and it interacts smoothly with controllers, power modules, and communication card components. Since the IMFEC12 Analog Input Module supports multi-voltage signal ranges, it adapts easily to various field devices such as transmitters, pressure sensors, temperature converters, position feedback units, and flow transducers.

Key Technical Specifications of the IMFEC12 Module

1. Input Channel Specifications

The IMFEC12 supports 15 analog inputs, and each channel accepts current or voltage signals depending on project requirements. Moreover, the module captures low-level signals with high resolution, ensuring consistent performance when precise process feedback is essential.

Channel Features:

• 15 isolated analog input channels

• Input signal types: 4–20 mA, 0–5 V, 1–5 V, 0–10 V (model-dependent)

• High-resolution A/D conversion for enhanced measurement precision

• Built-in noise filtering for stable signal interpretation

• Rapid sampling rate supporting real-time process control

Because the system handles these signal types smoothly, engineers gain predictable measurement output even in noisy industrial environments.

2. Electrical and Power Characteristics

To maintain uninterrupted operation, the IMFEC12 Analog Input Module draws stable power from a control backplane and manages internal circuitry efficiently. Additionally, low power consumption reduces heat generation, which prolongs component lifespan.

Electrical Specifications:

• Power supply: Backplane powered

• Typical power usage: 3–5 W

• Isolation protection: Channel-to-bus and channel-to-channel

• Surge and transient suppression for robust field performance

With these characteristics, the IMFEC12 operates reliably even when subjected to electrical noise and power fluctuations.

3. Environmental and Durability Specifications

Because industrial sites experience large temperature swings and vibration exposure, the IMFEC12 module includes protective design enhancements that ensure long-term stability.

Environmental Ratings:

• Operating temperature: –20°C to +60°C

• Storage temperature: –40°C to +85°C

• Humidity: 5–95% non-condensing

• Shock and vibration resistance compliant with industrial standards

Consequently, the module performs consistently within control rooms, outdoor enclosures, and high-load mechanical environments.

4. Mechanical & Installation Details

The compact profile of the IMFEC12 Analog Input Module allows it to fit neatly into standard rack-mount or cabinet-mount control systems. Furthermore, the plug-in connector structure shortens installation time significantly.

Mechanical Information:

• Mounting style: Modular backplane installation

• Lightweight housing optimized for cabinet airflow

• Front-access terminals for easy maintenance

• Diagnostic LEDs for channel activity and module status

Because engineers can install, test, and replace the IMFEC12 quickly, downtime during maintenance decreases dramatically.

IMFEC12 Functional Advantages for Industrial Applications

High Accuracy and Real-Time Performance

The IMFEC12 module collects process values rapidly, and therefore control systems respond more effectively to operational variations. Additionally, the module’s noise-suppression and high-resolution architecture promote accurate data interpretation.

Flexible Signal Compatibility

Since analog sensors vary widely across industries, the 15-channel multi-range structure of the IMFEC12 ensures that most field devices interface smoothly with the module. Consequently, integration becomes simpler and more reliable.

Reliable Integration into Automation Ecosystems

The IMFEC12 connects with advanced systems that include PLCs, communication modules, and distributed control platforms. Moreover, its compatibility supports modernization projects and legacy equipment upgrades.

Application Areas for the IMFEC12 Analog Input Module

The IMFEC12 Analog Input Module benefits operations across a wide spectrum of industrial sectors:

• Power generation and transmission

• Chemical and petrochemical processing

• Water treatment and environmental monitoring

• Manufacturing automation

• Food and beverage production

• Metallurgy and mining equipment

• Building automation systems

Because the module consistently provides stable real-time input data, each of these industries achieves improved operational precision, reduced errors, and enhanced equipment efficiency.

Conclusion

The IMFEC12 Analog Input Module (15 Inputs) supports professional automation engineers who need a dependable signal-processing component with high compatibility, long-term durability, and precise measurement accuracy. As processes become more digitalized, the IMFEC12 continues to provide modern functionality with a straightforward installation and integration approach. Therefore, industries that rely on structured control loops and real-time monitoring benefit significantly from adopting this module into their automation architecture.
