Carlo Gavazzi Dupline GTU8 Test Cables
The Carlo Gavazzi Dupline GTU8 Test Cables include two model-specific connection accessories: GTU8-ASIC-CAB and GTU8-GRIP-CAB. These cables are designed for use with the Carlo Gavazzi GTU8 portable Dupline fieldbus test unit.
The GTU8 is a handheld diagnostic instrument used for monitoring and controlling channels in compatible Dupline communication networks. During system commissioning, troubleshooting and maintenance, the correct connection cable is essential for establishing the intended interface between the GTU8 test unit and the equipment being examined.
The GTU8-ASIC-CAB and GTU8-GRIP-CAB have different connection arrangements. Customers should select the required model according to the device or Dupline network connection specified in the manufacturer documentation.
Wuhan Yuli Automation Technology Co., Ltd. supplies Carlo Gavazzi Dupline equipment and accessories for international industrial automation customers. Contact us for GTU8 test cable pricing, availability and delivery information.
Available GTU8 Test Cable Models
This product listing includes two selectable Carlo Gavazzi Dupline test cable models:

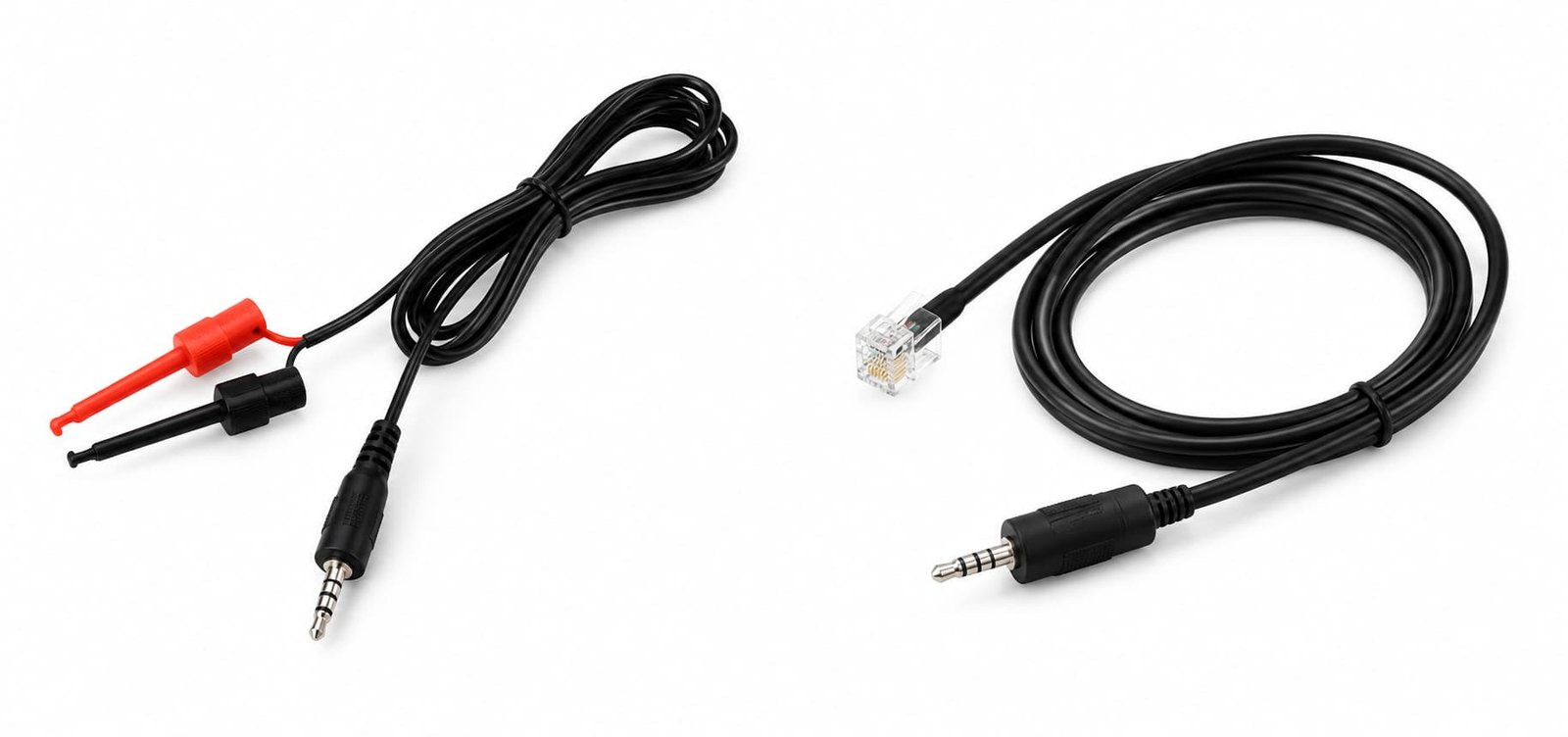

- GTU8-ASIC-CAB – GTU8-to-ASIC module connection cable with a 3 mm Jack plug and a 6/6 modular plug.
- GTU8-GRIP-CAB – GTU8-to-Dupline network connection cable with a 3 mm Jack plug and two mini-grip connectors.
Both cable models are identified in the published Carlo Gavazzi GTU8 technical datasheet.
Carlo Gavazzi GTU8-ASIC-CAB Test Cable
The Carlo Gavazzi GTU8-ASIC-CAB is a dedicated connection cable for the GTU8 Dupline test unit and compatible ASIC modules.
According to the manufacturer datasheet, this cable has a 3 mm Jack plug at the GTU8 end and a 6/6 modular plug at the ASIC module end.
The GTU8-ASIC-CAB is intended for supported test and diagnostic applications involving the relevant ASIC module interface.
GTU8-ASIC-CAB Key Features
- Original Carlo Gavazzi part number: GTU8-ASIC-CAB.
- Designed for the GTU8 Dupline test unit.
- Connection to compatible ASIC modules.
- GTU8-side connector: 3 mm Jack plug.
- ASIC-side connector: 6/6 modular plug.
- Suitable for supported commissioning and diagnostic applications.
GTU8-ASIC-CAB Applications
The GTU8-ASIC-CAB is suitable for applications where the GTU8 must be connected to a compatible ASIC module through the specified modular interface.
Before ordering, verify the ASIC module type and confirm that the manufacturer specifies GTU8-ASIC-CAB for the intended connection.
Carlo Gavazzi GTU8-GRIP-CAB Test Cable
The Carlo Gavazzi GTU8-GRIP-CAB is a Dupline fieldbus test cable designed to connect the GTU8 portable test unit to a compatible Dupline network.
The cable features a 3 mm Jack plug for connection to the GTU8 and two mini-grip connectors for the Dupline signal and common connections.
According to the manufacturer datasheet, the red mini-grip is assigned to the signal connection, while the black mini-grip is assigned to the common connection.
GTU8-GRIP-CAB Key Features
- Original Carlo Gavazzi part number: GTU8-GRIP-CAB.
- Designed for the GTU8 Dupline test unit.
- Used for connection to compatible Dupline networks.
- GTU8-side connector: 3 mm Jack plug.
- Network-side connectors: two mini grips.
- Red mini grip: signal connection.
- Black mini grip: common connection.
GTU8-GRIP-CAB Applications
The GTU8-GRIP-CAB supports fieldbus testing activities where a compatible GTU8 test unit must be connected to the Dupline network.
It is relevant to system commissioning, channel monitoring, troubleshooting and maintenance activities performed by qualified personnel.
GTU8-ASIC-CAB vs GTU8-GRIP-CAB – What Is the Difference?
Although both accessories are designed for the Carlo Gavazzi GTU8 test unit, their connection interfaces are different.
| Feature | GTU8-ASIC-CAB | GTU8-GRIP-CAB |
|---|---|---|
| Manufacturer | Carlo Gavazzi | Carlo Gavazzi |
| Product Family | Dupline | Dupline |
| Compatible Test Unit | GTU8 | GTU8 |
| GTU8 Connector | 3 mm Jack Plug | 3 mm Jack Plug |
| Other Connector | 6/6 Modular Plug | Two Mini Grips |
| Connection Purpose | GTU8 to ASIC Module | GTU8 to Dupline Network |
| Primary Application | Compatible ASIC Module Testing | Dupline Network Testing |
Selection Guide: Choose GTU8-ASIC-CAB when the required connection is between the GTU8 and a compatible ASIC module. Choose GTU8-GRIP-CAB when the required connection is between the GTU8 and the Dupline network using mini-grip connectors.
The two cables have different connector arrangements and should not be treated as interchangeable.
Technical Specifications – Carlo Gavazzi GTU8 Test Cables
| Parameter | Specification |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Product Series | Dupline |
| Product Type | Fieldbus Test Cable Accessories |
| Available Models | GTU8-ASIC-CAB / GTU8-GRIP-CAB |
| Associated Test Unit | GTU8 |
| GTU8-Side Connector | 3 mm Jack Plug |
| GTU8-ASIC-CAB Other Connector | 6/6 Modular Plug |
| GTU8-GRIP-CAB Other Connectors | Two Mini Grips |
| GTU8-GRIP-CAB Signal Connector | Red Mini Grip |
| GTU8-GRIP-CAB Common Connector | Black Mini Grip |
| Cable Length | Confirm with Supplier |
| Application | Compatible Dupline Testing and Diagnostics |
Connector information is based on the Carlo Gavazzi GTU8 manufacturer datasheet. Confirm cable length, revision and compatibility before purchasing.
Applications of Carlo Gavazzi Dupline Test Cables
Dupline Fieldbus Commissioning
GTU8 test cables provide the specified connections for supported diagnostic activities during commissioning of compatible Dupline systems.
Industrial Automation Maintenance
Maintenance personnel may use these accessories with the GTU8 test unit when inspecting Dupline channels and compatible modules.
Dupline Network Troubleshooting
The GTU8-GRIP-CAB is designed for connecting the GTU8 to the Dupline network, supporting channel monitoring and troubleshooting procedures.
ASIC Module Testing
The GTU8-ASIC-CAB provides the specified connection between the GTU8 and compatible ASIC modules.
Replacement Cable Procurement
Customers maintaining GTU8 testing equipment can order the required cable model separately when a replacement accessory is needed.
Building Automation Maintenance
Dupline technology is used in building automation applications. These cables may be required for supported GTU8 service and diagnostic activities.
How to Choose the Correct GTU8 Test Cable
Before ordering, review the following selection points:
- Required Model: Confirm GTU8-ASIC-CAB or GTU8-GRIP-CAB.
- Target Connection: Determine whether the GTU8 will connect to an ASIC module or the Dupline network.
- Connector Type: Check the 6/6 modular plug or mini-grip connection requirements.
- Equipment Compatibility: Verify the relevant Carlo Gavazzi module and test unit documentation.
- Replacement Requirements: Match the original cable model whenever possible.
- Availability: Confirm current stock and delivery information before ordering.
Use the GTU8 and its connection accessories only in accordance with the manufacturer’s instructions and approved site procedures.
GTU8 Test Unit and Related Dupline Accessories
The GTU8 is a portable test unit designed for monitoring and controlling Dupline channels. Its supported functions include channel status monitoring, transmission latching, dual-group reading, analog BCD reading and split I/O channel reading.
The manufacturer datasheet lists one GTU8-GRIP-CAB and one GTU8-ASIC-CAB in the standard GTU8 test unit package.
Customers requiring replacement cables can select the appropriate model from this product listing.
Explore our Carlo Gavazzi Dupline Fieldbus product range.
For official technical information, refer to the Carlo Gavazzi GTU8 English Datasheet.
Why Choose YULI Automation?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation products for international customers requiring Dupline communication equipment, testing accessories and replacement components.
- Carlo Gavazzi Dupline product sourcing.
- Quotation support for GTU8-ASIC-CAB and GTU8-GRIP-CAB.
- Exact manufacturer part-number inquiries.
- Procurement assistance for industrial maintenance projects.
- International customer support.
- Availability and lead-time information upon request.
Frequently Asked Questions About GTU8 Test Cables
What is the Carlo Gavazzi GTU8-ASIC-CAB?
The GTU8-ASIC-CAB is a connection cable designed for linking the GTU8 Dupline test unit to compatible ASIC modules. It has a 3 mm Jack plug and a 6/6 modular plug.
What is the Carlo Gavazzi GTU8-GRIP-CAB?
The GTU8-GRIP-CAB is a cable designed to connect the GTU8 test unit to a compatible Dupline network. It has a 3 mm Jack plug and two mini-grip connectors.
What is the difference between GTU8-ASIC-CAB and GTU8-GRIP-CAB?
The GTU8-ASIC-CAB is intended for connection to compatible ASIC modules, while the GTU8-GRIP-CAB is intended for connection to the Dupline network.
Which GTU8 cable has the mini-grip connectors?
The GTU8-GRIP-CAB has two mini-grip connectors: red for signal and black for common.
Which GTU8 cable uses a modular plug?
The GTU8-ASIC-CAB uses a 6/6 modular plug at the ASIC module end.
Are both cables listed in the GTU8 manufacturer datasheet?
Yes. The GTU8 datasheet lists both GTU8-GRIP-CAB and GTU8-ASIC-CAB in the standard scope of supply.
Can I purchase one cable separately?
You can select the required cable model from this listing and request a quotation. Availability is subject to confirmation.
Are GTU8-ASIC-CAB and GTU8-GRIP-CAB interchangeable?
No. They have different connection arrangements and are intended for different GTU8 connection applications.
Where can I request GTU8 test cable pricing?
Contact Wuhan Yuli Automation Technology Co., Ltd. at sales@wuhanyuli.com for pricing, availability and delivery information.
Request a Quote – Carlo Gavazzi GTU8 Test Cables
Looking for Carlo Gavazzi GTU8-ASIC-CAB or GTU8-GRIP-CAB?
Select the required model and contact YULI Automation for product pricing, availability and international delivery information.
Brand: Carlo Gavazzi
Models: GTU8-ASIC-CAB / GTU8-GRIP-CAB
Product Type: Dupline Fieldbus Test Cables
Email: sales@wuhanyuli.com
Company: Wuhan Yuli Automation Technology Co., Ltd.
