Carlo Gavazzi GTU8 Dupline Fieldbus Test Unit
The Carlo Gavazzi GTU8 Dupline Fieldbus Test Unit is a portable testing and diagnostic instrument designed for monitoring and controlling channels in compatible Dupline fieldbus networks. Developed for fieldbus installation, commissioning and maintenance, the GTU8 provides a convenient interface for checking channel status and supporting system troubleshooting.
The GTU8 Dupline Test Unit features a two-line LCD display, a 12-key tactile keyboard and several dedicated channel monitoring functions. Its compact handheld construction makes it suitable for industrial automation technicians, system integrators and maintenance personnel working with Dupline communication networks.
The GTU8 receives its operating power directly from the Dupline network. Therefore, no separate operating power supply is required when the unit is connected to a compatible system according to the manufacturer’s instructions.
Wuhan Yuli Automation Technology Co., Ltd. supplies Carlo Gavazzi Dupline products and industrial automation components for international customers. Contact us for GTU8 pricing, availability and quotation support.
Carlo Gavazzi GTU8 Product Overview
The Carlo Gavazzi GTU8 is a dedicated portable test unit for Dupline fieldbus modules and networks. It is intended to support system startup, channel verification, troubleshooting and routine maintenance.
Dupline is a fieldbus communication system used in distributed industrial and building automation applications. A typical installation may include channel generators, digital input modules, output modules, sensors and communication interfaces.
During commissioning or maintenance, technicians may need to verify the status of individual Dupline channels and identify unexpected signal behavior. The GTU8 provides a dedicated interface for these tasks.
With its integrated display and keyboard, the GTU8 allows channel information to be accessed locally without requiring a separate computer for its supported testing functions.
Key Features of the GTU8 Dupline Test Unit
Portable Dupline Fieldbus Tester
The GTU8 is a compact handheld diagnostic device designed for use with compatible Dupline fieldbus installations. Its portable construction supports on-site system verification and maintenance.
Dupline Channel Status Monitoring
The test unit supports monitoring of Dupline channel status, helping technicians examine fieldbus signals during commissioning and troubleshooting.
Two-Line LCD Display

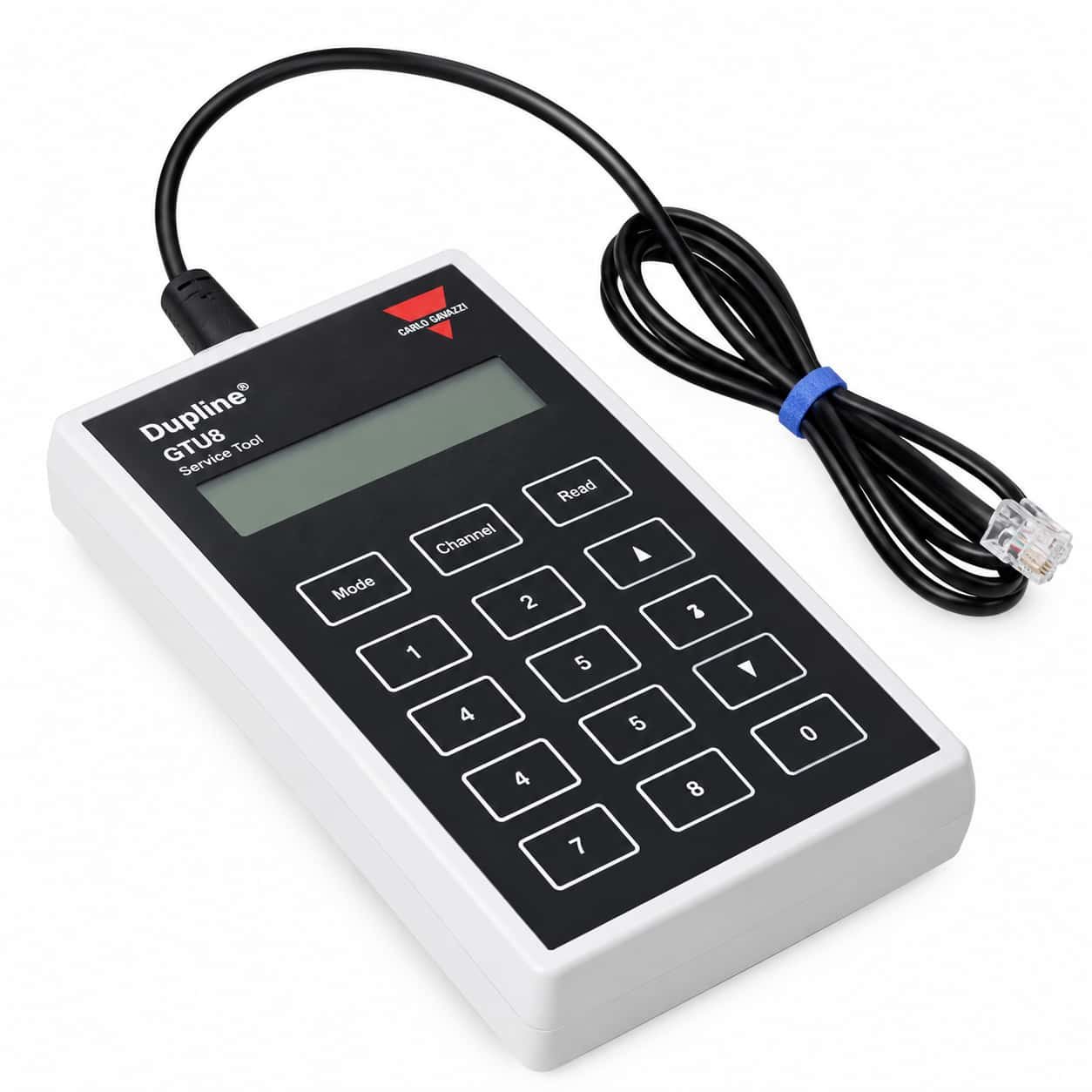

The Carlo Gavazzi GTU8 features a two-line LCD display with 16 characters per line. This provides a convenient local interface for viewing channel information.
12-Key Tactile Keyboard
The integrated keyboard includes eight channel keys and four command keys, allowing operators to navigate supported monitoring and test functions.
Transmission Latch Function
The GTU8 includes a transmission latch function for supported Dupline testing applications.
Dual-Group Reading
Dual-group reading provides an additional method for examining channel information within compatible Dupline networks.
Analog BCD Reading
The test unit supports analog BCD reading for relevant Dupline signal configurations.
Split Input and Output Channel Reading
The GTU8 includes split I/O channel reading functionality for supported Dupline installations.
Dupline Bus-Powered Operation
The GTU8 receives its operating power from the connected Dupline network. Its rated operational current is less than 4.0 mA.
Carlo Gavazzi GTU8 Technical Specifications
The following specifications summarize the manufacturer’s published technical data for the GTU8 Dupline Test Unit.
| Technical Parameter | Specification |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Model Number | GTU8 |
| Product Type | Dupline Fieldbus Test Unit |
| Product Series | Dupline |
| Primary Function | Dupline Channel Monitoring and Control |
| Power Supply | Supplied by Dupline Network |
| Rated Operational Current | Less than 4.0 mA |
| Reverse-Polarity Protection | Yes |
| Display | LCD, 2 Lines × 16 Characters |
| Character Height | 5 mm |
| Keyboard | 12 Tactile Keys |
| Connection | 3 mm Jack Socket |
| Protection Rating | IP40 |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Relative Humidity | 20% to 80%, Non-Condensing |
| Dimensions | 145 × 90 × 28 mm |
| Housing Material | Grey ABS |
| Weight | Approximately 250 g |
Specifications are based on the published manufacturer datasheet. Please verify the applicable document revision before ordering or installation.
GTU8 Dupline Channel Monitoring and Diagnostic Functions
Fieldbus Channel Verification
The GTU8 provides a local interface for observing Dupline channel status. This can support verification of signal behavior during system commissioning and maintenance.
System Startup and Commissioning
During the startup of a compatible Dupline network, the GTU8 can assist qualified technicians in checking channel information against the intended system configuration.
Fieldbus Troubleshooting
When unexpected channel states or communication issues occur, the GTU8 can be used as part of an approved diagnostic procedure to investigate the Dupline network.
Maintenance of Dupline Modules
The test unit supports maintenance activities involving compatible Dupline modules, helping technicians verify channel information during servicing or replacement work.
Safety Note: Channel control and testing functions must only be performed by qualified personnel following approved site procedures. Test operations may affect connected equipment.
Typical Applications of Carlo Gavazzi GTU8
Industrial Automation Systems
The GTU8 is suitable for diagnostic and maintenance work on compatible Dupline networks used in industrial automation installations.
Building Automation
Dupline technology is used in building automation systems. The GTU8 can assist technicians in checking supported channel information during commissioning and servicing.
Fieldbus Commissioning
The portable GTU8 test unit supports verification activities when a new Dupline installation is being commissioned.
Industrial Maintenance
Maintenance teams can use the GTU8 as part of routine system checks and troubleshooting procedures for compatible Dupline equipment.
System Integration
Automation integrators may use the GTU8 to verify channel status when installing or modifying supported Dupline communication networks.
Replacement Equipment Testing
The GTU8 can support verification of compatible fieldbus channel behavior during equipment replacement and maintenance projects.
Carlo Gavazzi GTU8 vs GAP1605 – Product Comparison
The GTU8 and GAP1605 are both Carlo Gavazzi Dupline accessories, but they perform different functions.
| Feature | GTU8 | GAP1605 |
|---|---|---|
| Product Type | Fieldbus Test Unit | Programming Unit |
| Main Function | Channel Monitoring and Testing | Device Address Programming |
| Typical Application | Commissioning and Troubleshooting | Dupline Device Configuration |
| Product Family | Dupline | Dupline |
Choose the GTU8 when channel monitoring and diagnostic functions are required. The GAP1605 is intended for assigning addresses to compatible Dupline I/O modules and sensors.
The two devices are designed for different tasks and should not be considered interchangeable.
GTU8 Accessories and Scope of Supply
The published Carlo Gavazzi GTU8 datasheet identifies the following standard supply items:
- 1 × GTU8 Dupline Test Unit
- 1 × GTU8-GRIP-CAB connection cable
- 1 × GTU8-ASIC-CAB connection cable
Actual accessories and package contents should be confirmed with the supplier before purchase.
Why Choose YULI Automation for Carlo Gavazzi GTU8?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation products for customers seeking Dupline communication equipment, programming tools, testing accessories and replacement components.
- Carlo Gavazzi Dupline product sourcing.
- Quotation support for the GTU8 test unit.
- Exact manufacturer part-number inquiries.
- Procurement assistance for maintenance projects.
- International customer support.
- Product availability and lead-time information upon request.
Explore our Carlo Gavazzi Dupline Fieldbus product range.
For technical documentation, visit the Carlo Gavazzi GTU8 Official Product Page.
Frequently Asked Questions About Carlo Gavazzi GTU8
What is the Carlo Gavazzi GTU8?
The GTU8 is a portable Dupline fieldbus test unit used for monitoring and controlling compatible Dupline channels during commissioning, troubleshooting and maintenance.
What is the GTU8 used for?
It is designed for Dupline channel status monitoring, supported diagnostic functions and fieldbus system verification.
Does the GTU8 have an LCD display?
Yes. The GTU8 features a two-line, 16-character-per-line LCD display.
How is the GTU8 powered?
The GTU8 receives operating power directly from the compatible Dupline network.
What is the GTU8 operating temperature range?
The published operating temperature range is 0°C to +50°C.
What is the difference between GTU8 and GAP1605?
The GTU8 is primarily a Dupline channel monitoring and testing device. The GAP1605 is used for address programming of compatible Dupline I/O modules and sensors.
What cables are listed in the GTU8 datasheet?
The published scope of supply includes the GTU8-GRIP-CAB and GTU8-ASIC-CAB connection cables. Confirm the actual package contents before ordering.
Can the GTU8 be used with all Dupline systems?
Compatibility depends on the system configuration and supported Dupline equipment. Verify the manufacturer’s documentation before use.
Where can I request a Carlo Gavazzi GTU8 quotation?
Contact Wuhan Yuli Automation Technology Co., Ltd. at sales@wuhanyuli.com with your required quantity and delivery destination.
