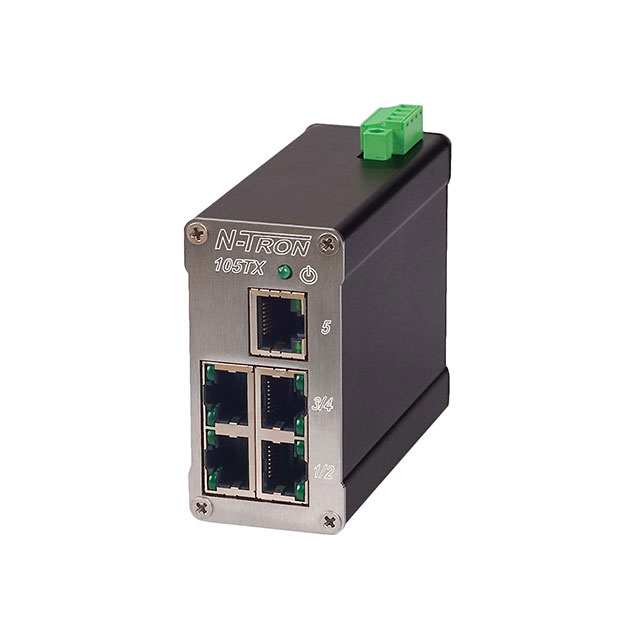

N-TRON 105TX: 5-Port Full Gigabit Industrial Ethernet Switch
Build for Harsh Environments. Engineered for Reliability.
The N-TRON 105TX is a robust, unmanaged 5-port industrial Ethernet switch designed to deliver unwavering network performance in the most demanding conditions. Whether deployed on a factory floor, a transportation system, or a remote energy site, the 105TX provides reliable, high-speed Gigabit connectivity where commercial-grade equipment would fail. Its fanless, all-metal housing, wide-temperature tolerance, and immunity to shock, vibration, and EMI make it the ideal cornerstone for any critical industrial network infrastructure.
Key Features & Benefits
Full Gigabit Performance: Five 10/100/1000Base-TX ports provide the necessary bandwidth for data-intensive modern industrial applications, including high-resolution machine vision, large file transfers, and real-time control systems without bottlenecks.
Rugged Industrial Design: Built to survive where it counts.
Wide Operating Temperature: Operates flawlessly in extreme temperatures from -40°C to 75°C (-40°F to 167°F).
Hardened Construction: A sturdy metal case ensures superior heat dissipation and protection against shock, vibration, and physical impact.
High EMI Immunity: Meets rigorous industrial EMC standards (EMC Level 4) for reliable operation in high-noise electrical environments.
Simplified Deployment & Reliability:
Plug-and-Play: No configuration required. Install it, and it works immediately, reducing setup time and eliminating maintenance overhead.
DIN-Rail Mountable: Designed for easy integration into control panels and industrial racks using standard DIN-rail mounting.
Redundant Power Inputs: Features dual 12-48 VDC power inputs to ensure continuous 24/7 operation, even if one power source fails.
Unmanaged Simplicity: The perfect “set-it-and-forget-it” solution for creating robust network segments without the complexity of managed switches.
Technical Specifications
Attribute Specification
Brand N-TRON (A leading brand in industrial networking)
Model 105TX
Number of Ports 5 x 10/100/1000Base-TX RJ45 ports, auto-MDI/MDIX
Switching Capacity 10 Gbps
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Power Supply Dual redundant 12-48 VDC
Installation DIN-rail mounting
Enclosure Heavy-duty metal
EMC Immunity Industrial Grade 4
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x
Ideal Applications
The N-TRON 105TX industrial Gigabit switch is perfectly suited for a wide range of demanding applications, including:
Industrial Automation & Control Systems: Connecting PLCs, HMIs, drives, and sensors on the factory floor.
SCADA & Critical Infrastructure: Monitoring and control networks in power utility substations, water/wastewater treatment plants, and oil & gas facilities.
Intelligent Transportation Systems (ITS): For traffic management, tolling, and roadside communication cabinets.
Outdoor & Rugged Environments: Renewable energy sites (wind & solar), mining operations, and maritime applications.
Manufacturing & IIoT: Building the backbone for Industrial Internet of Things (IIoT) networks that require reliable Gigabit speed.
Why Choose the N-TRON 105TX Industrial Switch?
Proven Reliability: N-TRON is trusted by engineers worldwide for mission-critical applications where network failure is not an option.
Future-Proof Bandwidth: Gigabit ports ensure your network is ready for today’s and tomorrow’s high-bandwidth demands.
Reduced Total Cost of Ownership: Exceptional durability and zero-touch operation minimize downtime and maintenance costs.
Peace of Mind: With its rugged design and redundant features, you can deploy the 105TX with confidence, knowing it will perform consistently.
Upgrade your network with the robustness of the N-TRON 105TX. Request a quote or find a distributor today!
