ABB RLM01 PROFIBUS Redundancy Link Module – RLM01 & RLM02

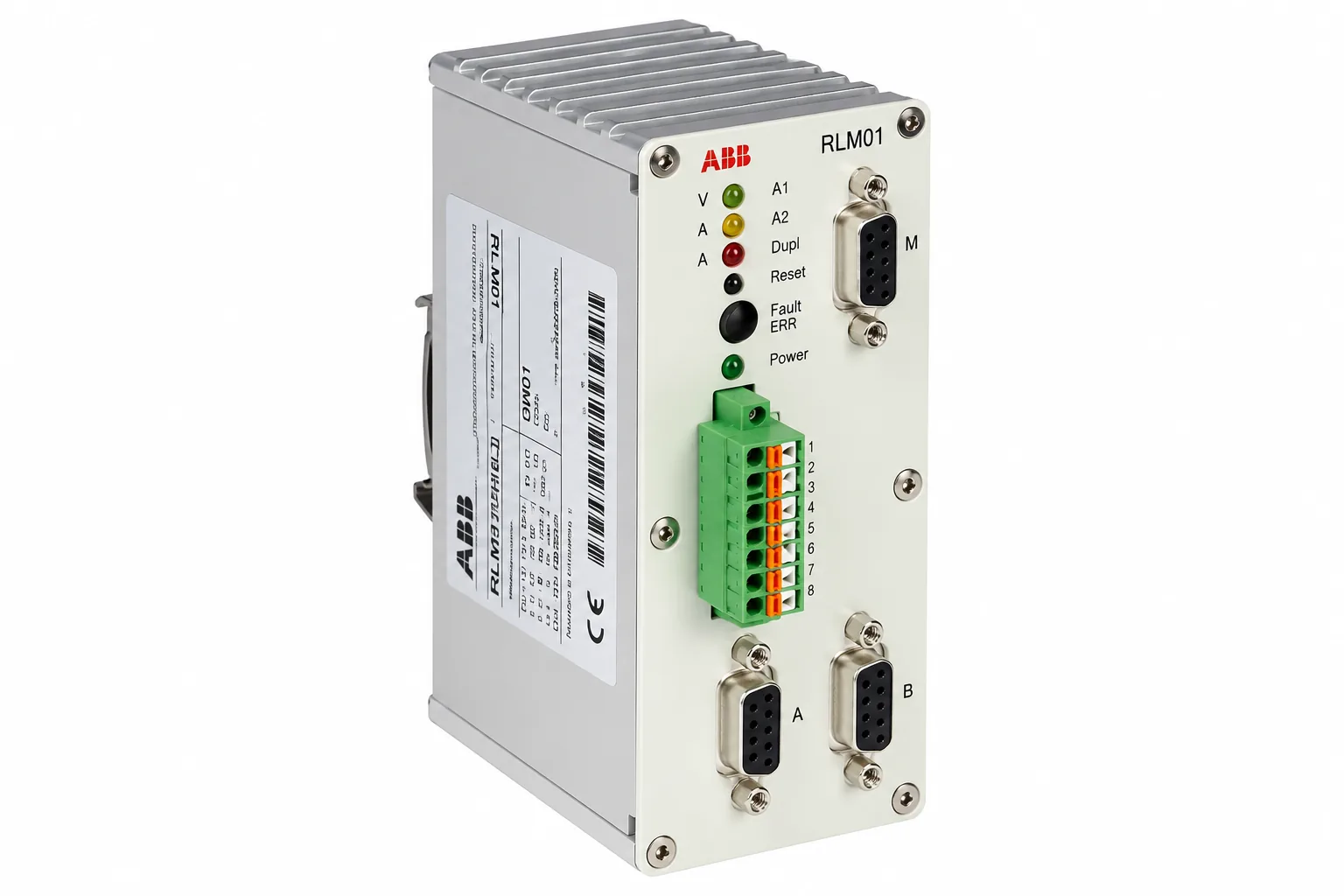

The ABB RLM01 PROFIBUS Redundancy Link Module is designed for PROFIBUS communication architectures that require the connection of a single bus line to redundant communication paths. This variable product includes ABB RLM01 and ABB RLM02, two redundancy link module references used in industrial fieldbus applications. Both models are associated with PROFIBUS redundancy, but their exact functions, installation requirements and compatibility must be evaluated individually.
Wuhan Yuli Automation supplies industrial automation components for maintenance, replacement and spare parts procurement. Customers can select the required model and request confirmation of availability, product condition and delivery information.
Product Overview
PROFIBUS is a fieldbus communication technology used in industrial automation systems to exchange information between controllers and connected equipment. Depending on the installation, communication networks may use a single bus path or a redundant arrangement with alternative paths.
Redundancy link modules help integrate these different arrangements. In an appropriately designed network, they can connect a non-redundant PROFIBUS segment to two redundant bus lines. This is useful when existing devices have a single communication interface but must operate within a system designed with redundant communication paths.
ABB documents the RLM01 in PROFIBUS DP installation guidance and identifies the RLM02 as a redundancy link module for PROFIBUS DP/FMS. Both references are relevant to industrial communication infrastructure, although their specifications and application details should not be assumed identical.
These products do not independently make an entire control system redundant. Overall availability depends on the controller architecture, field devices, bus layout, power supply arrangements and other installed equipment. Engineering review remains necessary when modifying an operating industrial network.
ABB RLM01 and RLM02 Available Models
| Model | Product Type | Manufacturer-Documented Context |
|---|---|---|
| RLM01 | PROFIBUS DP Redundancy Link Module | Single DP line and redundant A/B line conversion |
| RLM02 | PROFIBUS DP/FMS Redundancy Link Module | Redundancy linking, communication monitoring and automatic line selection |
Note: This table is a purchasing overview, not a complete technical specification. Verify the exact ordering number, hardware revision and manufacturer documentation before selecting a replacement.
ABB RLM01 PROFIBUS Redundancy Link Module Features
RLM01 PROFIBUS DP Redundancy
ABB installation documentation describes the RLM01 as a DP redundancy link module that connects a single PROFIBUS DP line, identified as M, with two redundant lines, identified as A and B. The manufacturer’s examples include different arrangements involving PROFIBUS masters and connected field equipment.
This makes the RLM01 relevant when maintaining an existing PROFIBUS DP redundancy architecture. The module should be selected using the original equipment identification and applicable network documentation rather than appearance alone.
RLM02 PROFIBUS DP/FMS Redundancy
The ABB RLM02 is documented for PROFIBUS DP/FMS applications. ABB describes its ability to convert a non-redundant PROFIBUS connection into two redundant RS485 lines, or to combine redundant lines into one connection.
The manufacturer’s documentation also identifies automatic line selection, communication monitoring, repeater functionality, status and error indication, and redundant power supply capability. These functions are specific to the documented RLM02 configuration and should not automatically be attributed to every RLM01 revision.
Communication Monitoring
In redundant PROFIBUS applications, monitoring the communication paths is important for system diagnostics. ABB describes the RLM02 as monitoring communication activity and errors across its connected lines.
Status information can help maintenance personnel investigate network conditions. However, indicators must be interpreted using the relevant product manual and the actual plant configuration.
Network Integration
Redundancy link modules may be positioned at different locations within an engineered PROFIBUS network. The correct location depends on the master arrangement, field devices and network topology.
When replacing existing equipment, confirm the original installation design. A replacement project should preserve the required bus architecture and should not introduce unapproved changes to communication wiring or system configuration.
Maintenance and Spare Parts Planning
Industrial facilities may keep PROFIBUS communication accessories available for planned maintenance and replacement work. Accurate spare part identification helps purchasing teams avoid ordering equipment that cannot be used in the installed system.
For both RLM01 and RLM02, customers should record the complete nameplate details, required quantity and any additional manufacturer ordering reference. These details can be included in the request for quotation.
Industrial Applications
ABB PROFIBUS redundancy link modules may be used in facilities operating compatible fieldbus communication networks. Actual suitability depends on the automation architecture and approved engineering requirements.
- Power Generation: PROFIBUS communication maintenance in compatible plant automation systems.
- Oil and Gas: Replacement planning for established industrial fieldbus installations.
- Chemical Processing: Communication network spare parts and system maintenance.
- Pulp and Paper: Support for installed PROFIBUS-connected equipment.
- Water and Utilities: Maintenance of supported distributed automation networks.
- Manufacturing: Procurement of fieldbus communication components for approved projects.
These are general application examples. They do not establish compatibility with every controller, field device or industrial network used in these sectors.
RLM01 vs RLM02: Model Selection Guide
1. Identify the Existing Model
Check whether the installed unit is marked RLM01 or RLM02. Record the complete ABB ordering code and hardware revision where available. A photograph of the manufacturer label can help clarify the required product.
2. Check the PROFIBUS Application
Review whether the installation uses PROFIBUS DP or another supported arrangement. ABB documents RLM02 for PROFIBUS DP/FMS, while its published RLM01 installation examples focus on PROFIBUS DP redundancy.
3. Confirm the Network Architecture
Review the existing single and redundant bus connections, power supply arrangement, mounting requirements and network documentation. Different redundancy link modules should not be assumed mechanically or electrically interchangeable.
4. Verify Replacement Compatibility
If a different model is proposed as a replacement, request confirmation from the manufacturer or a qualified control system engineer. Product family similarity does not guarantee that the replacement will meet the original application requirements.
5. Request a Formal Quotation
Send the exact model number, quantity, delivery destination and required schedule. Ask the supplier to confirm product condition, availability, warranty, lead time and the specific item being offered.
Why Choose Wuhan Yuli Automation?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation products and spare parts to international customers. Our product portfolio includes ABB controllers, communication modules, industrial power supplies, I/O hardware and related automation accessories.
We help customers organize model-specific purchasing inquiries and identify the information required for quotations. Buyers can submit their exact RLM01 or RLM02 reference, quantity and destination to request commercial confirmation.
Our standard offering focuses on new, original products with at least a one-year warranty, subject to the terms of the formal quotation. Stock status, product revision, packaging and delivery conditions must be confirmed before ordering.
Explore related communication equipment in our Industrial Automation Products catalog. For manufacturer technical information, see the official ABB RLM02 PROFIBUS Redundancy Link Module page.
Frequently Asked Questions
What is the ABB RLM01 PROFIBUS Redundancy Link Module?
RLM01 is an ABB PROFIBUS DP redundancy link module. ABB installation documentation describes its use for connecting a single DP line with two redundant communication lines.
What is the ABB RLM02 used for?
RLM02 is a redundancy link module documented by ABB for PROFIBUS DP/FMS networks. It supports the connection between non-redundant and redundant bus arrangements in compatible installations.
Can RLM02 directly replace RLM01?
Direct interchangeability should not be assumed. Confirm the complete part number, system requirements and manufacturer-approved replacement guidance before selecting a different model.
Does RLM02 support communication diagnostics?
ABB documentation identifies communication monitoring and status or error indication among the RLM02 functions. The applicable technical manual should be used to interpret the indicators.
Are RLM01 and RLM02 suitable for every PROFIBUS network?
No. Their suitability depends on the communication protocol, network topology, power supply and other system requirements. An engineering review is recommended before changing installed hardware.
How can I request an RLM01 or RLM02 quotation?
Select the required model and contact Wuhan Yuli Automation with the quantity, destination and any specific revision requirements. We can provide a quotation based on confirmed supply information.
