ABB Bailey NTCF21 NTCF22 NTCF23 NTCL01 NTRL04 Fiber Optic & Communication Termination Units

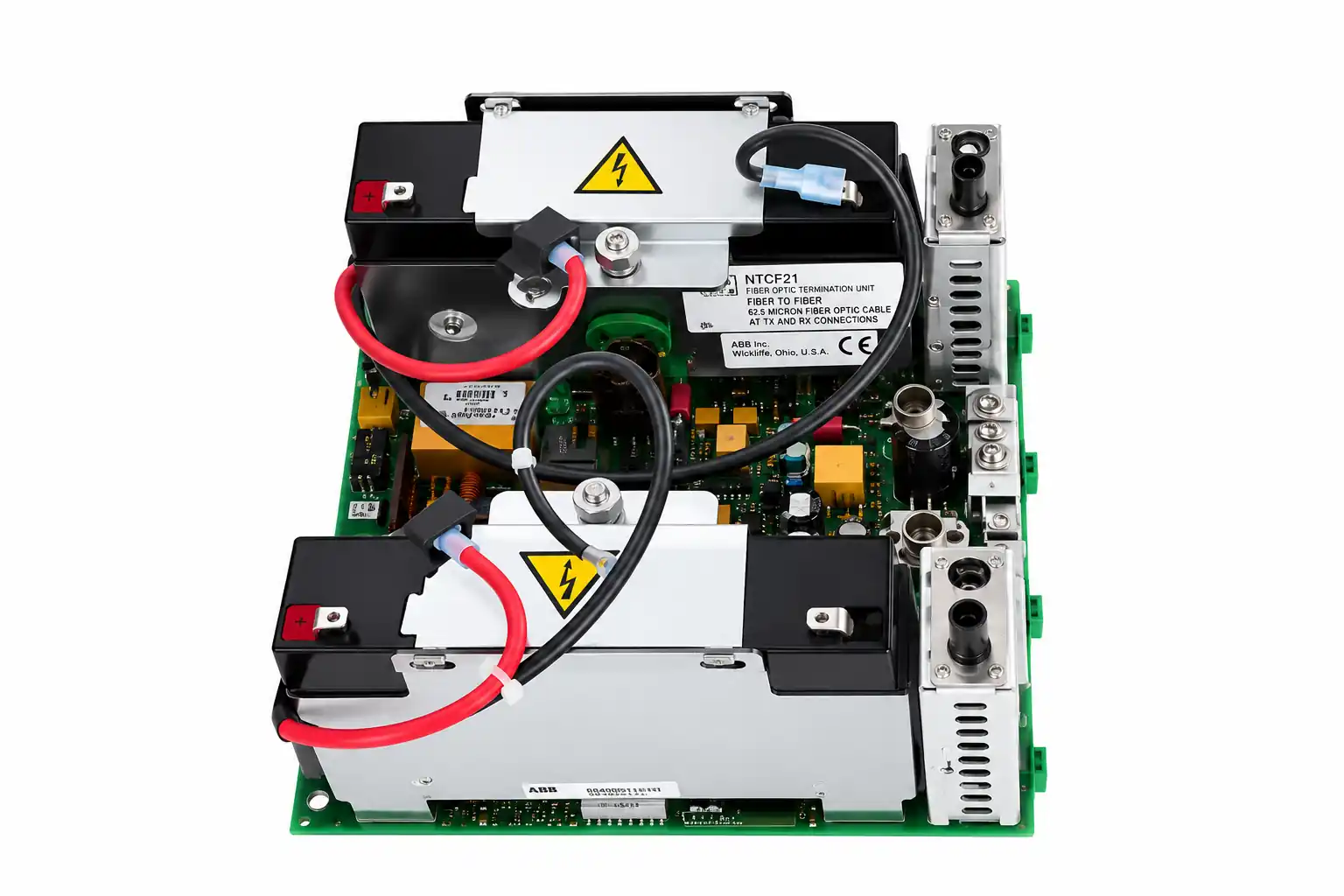

ABB NTCF21 Fiber Optic Termination Unit Overview

Industrial distributed control systems depend on communication connections between controllers, network interface modules and other system equipment. Different installations use different cable media, termination arrangements and network architectures. Choosing the correct termination hardware is important when maintaining these established systems.

ABB identifies the NTCF21, NTCF22 and NTCF23 as a family of termination units that interface PCU communication node modules, including NIS/NPM references, with fiber optic communication media. The family supports all-fiber arrangements and mixed fiber-and-copper communication links.

NTCL01 serves a separate communication termination role. ABB’s Symphony Plus catalog identifies it as a Cnet termination unit associated with the SPNIS module and supporting twinaxial or coaxial cable connections.

NTRL04 is identified in ABB spare parts documentation as a Harmony HNET fiber optic repeater termination unit. It should be selected according to the specific HNET installation rather than assumed to have the same function as an NTCF termination unit.

Although all five references relate to industrial communication hardware, they are not interchangeable. The required model depends on the network design, installed modules, communication medium and manufacturer-approved configuration.

Available ABB Bailey Communication Termination Models

Note: The descriptions summarize documented product functions. Confirm complete part numbers, hardware revisions, cable requirements and system compatibility before ordering.

Functions and Features

NTCF21 Fiber-to-Fiber Termination

ABB describes NTCF21 as a fiber-to-fiber termination unit. Its catalog specifies direct connections for 62.5-micron fiber optic cable at both transmit and receive connections.

This configuration is relevant to compatible network arrangements where optical communication media are used on both sides of the termination function. Customers should verify the original cable and connector arrangement before replacing an installed unit.

NTCF22 Fiber-to-Copper Termination

NTCF22 is documented as a fiber-to-copper termination unit. According to ABB, it connects 62.5-micron fiber optic cable at the receive side and standard INFI-Net coaxial or twinaxial cable at the transmit side.

This directional arrangement matters when selecting a replacement. The NTCF22 should not be confused with the NTCF23, which provides the opposite communication media arrangement.

NTCF23 Copper-to-Fiber Termination

NTCF23 is identified as a copper-to-fiber termination unit. ABB documents standard INFI-Net coaxial or twinaxial cable at the receive side and 62.5-micron fiber optic cable at the transmit side.

For procurement, buyers should confirm that the installed communication path requires this particular direction of conversion. The original network drawings and product label can help avoid an incorrect order.

NTCL01 Communication Link Termination

The ABB NTCL01 provides communication network termination for compatible Cnet connections to the SPNIS module. Manufacturer information identifies support for coaxial or twinaxial cable connections.

NTCL01 is not simply another optical termination variant. It should be selected according to the existing Cnet communication architecture and the applicable system documentation.

NTRL04 HNET Fiber Optic Repeater Termination

ABB spare parts documentation lists NTRL04 as a Harmony HNET fiber optic repeater termination unit. It belongs to the communication hardware used in the appropriate HNET system arrangement.

Before ordering NTRL04, customers should confirm the exact installed repeater equipment and associated termination requirements. Detailed interface characteristics should be taken from the relevant manufacturer manual.

Maintenance and Replacement Planning

Termination hardware forms part of the communication infrastructure in a distributed control system. Incorrect model selection may result in mismatched connections or an unsuitable replacement for the installed network.

For maintenance projects, record the exact model number, any revision markings, the communication modules connected to the unit and the original cable media. This information helps purchasing teams request the correct spare part.

Industrial Applications

ABB Bailey communication termination units are relevant to facilities operating compatible INFI-Net, Cnet and Harmony HNET architectures. Typical procurement needs involve existing installations rather than assuming suitability for all modern industrial networks.

• Power Generation: Communication hardware maintenance in compatible control systems.
• Oil and Gas: Spare parts procurement for installed automation networks.
• Chemical Processing: Maintenance of control system communication links.
• Pulp and Paper: Support for established ABB Bailey control infrastructure.
• Water and Utilities: Replacement planning for supported communication equipment.
• Industrial Manufacturing: Control network refurbishment and spare parts identification.

These are general application examples. Compatibility must be determined from the actual system architecture, installed communication modules and manufacturer documentation.

Model Selection and Purchasing Guide

Step 1: Identify the Existing Model

Check whether the original termination unit is marked NTCF21, NTCF22, NTCF23, NTCL01 or NTRL04. Record the complete ABB part number and any additional revision or ordering details.

Step 2: Confirm the Communication Architecture

Determine whether the installation uses an NIS/NPM-related fiber optic communication link, a Cnet connection associated with SPNIS, or an HNET repeater arrangement. These systems have different hardware requirements.

Step 3: Check the Cable Media

For NTCF21, NTCF22 and NTCF23, review the transmit and receive media. ABB documents distinct fiber-to-fiber, fiber-to-copper and copper-to-fiber arrangements, so the correct model must match the existing network design.

Step 4: Verify Installation Compatibility

Review the original termination unit, associated communication module, wiring documentation and mounting arrangement. Do not assume that two models are interchangeable because their names or physical appearance are similar.

Step 5: Request a Formal Quotation

Send the exact model, quantity, destination country and preferred delivery schedule. If possible, include photographs of the existing product label. Request confirmation of availability, condition, warranty and lead time.

Why Choose Wuhan Yuli Automation?

Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation components and spare parts to international customers. Our product range includes ABB Bailey controllers, communication modules, I/O equipment, power supplies and related control system hardware.

We assist customers with model-specific purchasing inquiries and help organize information required for spare parts quotations. Customers may request one model or several related termination units in the same inquiry.

Our standard commercial offering focuses on new, original products with at least a one-year warranty, subject to formal quotation terms. Stock availability, product condition, hardware revision and delivery arrangements must be confirmed before ordering.

Explore related control system hardware on our ABB Harmony BRC Bridge Controller product page.

For technical reference, see the official ABB Symphony Plus Product Catalog.

Frequently Asked Questions

What is the ABB NTCF21 Fiber Optic Termination Unit?

NTCF21 is a fiber-to-fiber termination unit used in compatible ABB Bailey communication systems. ABB documents optical cable connections at both transmit and receive ends.

What is the difference between NTCF22 and NTCF23?

NTCF22 connects fiber optic media at the receive side and copper media at the transmit side. NTCF23 provides the reverse arrangement.

Are NTCF21, NTCF22 and NTCF23 interchangeable?

No direct interchangeability should be assumed. Their documented communication media arrangements differ, and selection must match the original network configuration.

What is the NTCL01 used for?

NTCL01 is a Cnet communication termination unit associated with compatible SPNIS connections. ABB documents support for coaxial and twinaxial cable media.

What is the NTRL04?

NTRL04 is identified in ABB spare parts documentation as a Harmony HNET fiber optic repeater termination unit. Its application must be verified against the installed HNET equipment.

How can I request a quotation?

Select the required model and contact Wuhan Yuli Automation with the quantity, destination and any revision requirements. We can provide a quotation based on confirmed supply information.
