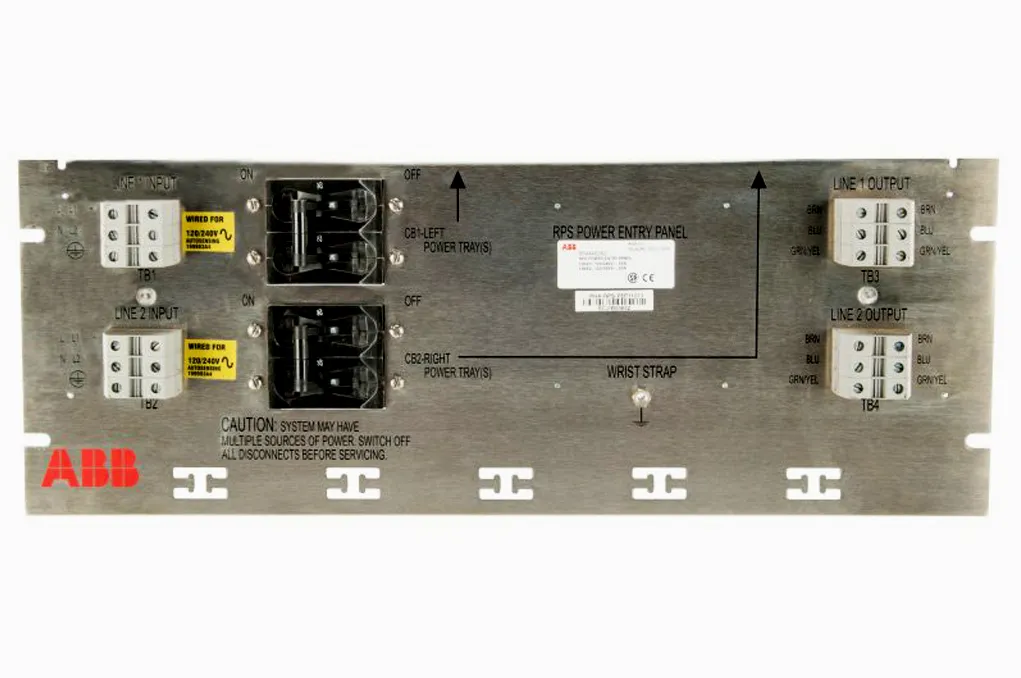

ABB MPS III Single Chassis Power Entry Panel
The ABB MPS III Single Chassis Power Entry Panel is part of the ABB Harmony Modular Power System III (MPS III), providing power entry and distribution functions for compatible ABB industrial control system installations. This product group includes PHARPSPEP11013, PHARPSPEP11023 and PHARPSPEP12003.
ABB identifies these three products as Single Chassis Category III Power Entry Panels. Although they belong to the same MPS III product family, their main and auxiliary input configurations are different. Therefore, the complete ABB part number and required input configuration should be confirmed before ordering. ABB Library
Wuhan Yuli Automation Technology Co., Ltd. supplies ABB industrial automation and control system components to customers worldwide. Please provide the exact model number, quantity and destination country when requesting a quotation.
Available ABB MPS III Single Chassis Power Entry Panel Models
ABB PHARPSPEP11013
The ABB PHARPSPEP11013 is a Single Chassis Power Entry Panel with 120/240 VAC main input and 120/240 VAC auxiliary input. ABB identifies this model as a Category III configuration within the MPS III power system. ABB Library
PHARPSPEP11013 is suitable for compatible ABB MPS III installations requiring AC power for both the main and auxiliary inputs. When sourcing a replacement, customers should verify the complete part number on the existing unit before ordering.
ABB PHARPSPEP11023
The ABB PHARPSPEP11023 is another Single Chassis Category III Power Entry Panel. It provides a 120/240 VAC main input combined with a 125 VDC auxiliary input. ABB Library
This is an important difference compared with PHARPSPEP11013. Although both products belong to the same Single Chassis family, their auxiliary input configurations are different. Customers should therefore select the model according to the electrical requirements of the installed system.
ABB PHARPSPEP12003
The ABB PHARPSPEP12003 provides the DC configuration within this Single Chassis group. ABB specifies 125 VDC main input and 125 VDC auxiliary input, with Category III classification. ABB Library
When replacing an existing PHARPSPEP12003, confirm the original ABB part number and system power requirements before ordering.
Model Comparison
| Model | Chassis | Main Input | Auxiliary Input | Category |
|---|---|---|---|---|
| PHARPSPEP11013 | Single | 120/240 VAC | 120/240 VAC | III |
| PHARPSPEP11023 | Single | 120/240 VAC | 125 VDC | III |
| PHARPSPEP12003 | Single | 125 VDC | 125 VDC | III |
These specifications correspond to ABB’s published MPS III active power-system component information. ABB Library
Applications
The ABB MPS III Single Chassis Power Entry Panel family is designed for compatible ABB Harmony Modular Power System III installations.
These products may be required for maintenance and replacement of existing ABB industrial control systems, plant shutdown maintenance, automation system refurbishment and spare-parts support.
Because industrial control systems can remain operational for many years, accurate identification of the existing power entry panel is important. Customers should verify the model number and input configuration rather than selecting a replacement only by appearance.
How to Select the Correct Model
The easiest way to identify the correct model is to check the complete ABB part number on the existing unit.
For systems requiring 120/240 VAC main and 120/240 VAC auxiliary inputs, check PHARPSPEP11013.
For systems requiring 120/240 VAC main and 125 VDC auxiliary inputs, check PHARPSPEP11023.
For systems requiring 125 VDC main and 125 VDC auxiliary inputs, check PHARPSPEP12003. ABB Library
These models belong to the same ABB MPS III Single Chassis family, but they should not automatically be treated as interchangeable because their input configurations differ.
If you are unsure which model is installed, send a clear photograph of the existing ABB product label together with the available part number.
Why Choose YULI Automation?
Wuhan Yuli Automation Technology Co., Ltd. supplies industrial automation products and replacement components for international customers. Our product range includes ABB control modules, communication modules, I/O modules, industrial power supplies and related control system components.
For ABB MPS III Single Chassis Power Entry Panel inquiries, customers can provide the exact model number, required quantity and destination country for quotation and availability information.
Frequently Asked Questions
What models are included in this product?
This variable product includes PHARPSPEP11013, PHARPSPEP11023 and PHARPSPEP12003.
What is the difference between PHARPSPEP11013 and PHARPSPEP11023?
PHARPSPEP11013 uses 120/240 VAC main and 120/240 VAC auxiliary inputs, while PHARPSPEP11023 uses 120/240 VAC main and 125 VDC auxiliary inputs. ABB Library
What input configuration does PHARPSPEP12003 use?
ABB specifies PHARPSPEP12003 with 125 VDC main and 125 VDC auxiliary inputs. ABB Library
Are these Dual Chassis models?
No. ABB identifies these three models as Single Chassis products. PHARPSPEP21013, PHARPSPEP21023 and PHARPSPEP22003 belong to the corresponding Dual Chassis group. ABB Library
How can I request a quotation?
Select the required model and submit your inquiry through Request a Quote or WhatsApp. Include the model number, quantity and destination country for a faster quotation.
