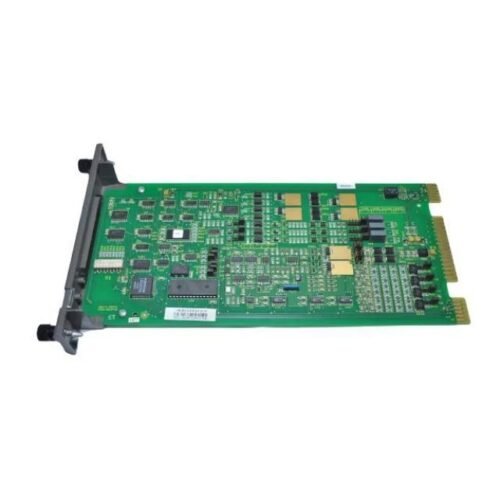

ABB QUICK RESPONSE MODULE 4 AI, 3DI IMQRS22 – Specifications and Features

The ABB IMQRS22 Quick Response Module delivers precise, high-speed control and monitoring capabilities for advanced industrial automation systems. Designed for seamless integration with ABB PLCs and control networks, the IMQRS22 module provides four analog inputs and three digital inputs, supporting critical process applications. By implementing the ABB IMQRS22, engineers can achieve reliable, real-time monitoring, enhanced operational performance, and optimized industrial processes across manufacturing, process control, and utility systems.

Key Features

The ABB IMQRS22 Quick Response Module offers several advanced features to meet demanding industrial needs:

• High-Speed I/O Processing: Ensures fast response for critical analog and digital signals.

• Flexible Configuration: Supports multiple analog and digital inputs to adapt to various applications.

• Accurate Analog Inputs: Provides precise measurements for process monitoring and control.

• Robust Digital Inputs: Handles high-speed digital signals reliably for real-time operations.

• Seamless Integration: Compatible with ABB PLCs, SCADA systems, and industrial automation networks.

• Advanced Diagnostics: Monitors module performance and provides data for preventive maintenance.

These features make ABB IMQRS22 ideal for industrial automation environments where precision, speed, and reliability are essential.

Technical Specifications

The ABB IMQRS22 Quick Response Module meets rigorous industrial standards:

• Module Type: Quick Response I/O Module (IMQRS22)

• Analog Inputs (AI): 4 channels, supporting 0–10V or 4–20mA signals

• Digital Inputs (DI): 3 channels, high-speed digital signals

• Digital Outputs (DO): Configurable outputs to interface with actuators or indicators

• Input Voltage Range: 24–230 VDC/AC, suitable for industrial control systems

• Accuracy: ±0.1% full scale for analog inputs

• Response Time: Millisecond-level response for digital signals

• Operating Temperature: –20°C to +70°C

• Humidity Range: 5–95% non-condensing

• Mounting: DIN rail or panel mount

• Certifications: CE, UL, IEC compliant for global industrial use

Applications

Manufacturing Automation

The IMQRS22 module monitors sensors, controls actuators, and optimizes production line processes. Accurate analog and digital inputs enable high-speed response, process consistency, and improved operational efficiency.

Process Control

In chemical, pharmaceutical, and food processing industries, ABB IMQRS22 ensures precise control of pumps, valves, and measurement devices. Fast response times and accurate inputs allow operators to optimize processes, reduce downtime, and maintain safety standards.

Power Systems and Utilities

ABB IMQRS22 modules monitor key parameters, log events, and control critical systems in power plants and substations. High-speed I/O enhances fault detection, operational reliability, and preventive maintenance.

Smart Industrial Systems

The module supports smart factory applications by integrating with sensors, actuators, and PLCs, enabling predictive maintenance, real-time monitoring, and enhanced process optimization.

Maintenance and Best Practices

Maintaining the ABB IMQRS22 Quick Response Module ensures long-term performance:

• Routine Inspections: Check module connections, wiring, and mounting integrity.

• Environmental Control: Operate within the specified temperature and humidity ranges.

• Firmware Updates: Keep module firmware current for compatibility with ABB control systems.

• Diagnostics Review: Monitor system logs for potential anomalies and resolve them promptly.

• Authorized Support: Contact suppliers such as Wuhan Yuli Automation Technology Co., Ltd for installation guidance and technical support.

Advantages of ABB IMQRS22

• High-Speed Response: Supports fast analog and digital processing for critical industrial tasks.

• Versatile I/O Configuration: Multiple input channels allow flexible application in various processes.

• Reliable Operation: Robust design ensures stable performance under industrial conditions.

• Seamless Integration: Compatible with ABB PLCs, SCADA, and industrial networks.

• Operational Insights: Built-in diagnostics provide valuable data for preventive maintenance and optimization.

The ABB IMQRS22 Quick Response Module 4 AI, 3DI offers a reliable, high-speed, and precise solution for industrial automation, process control, and utility systems, ensuring accurate monitoring, rapid response, and operational efficiency.
